Windows Buttons, Drop Boxes, and Trash Can

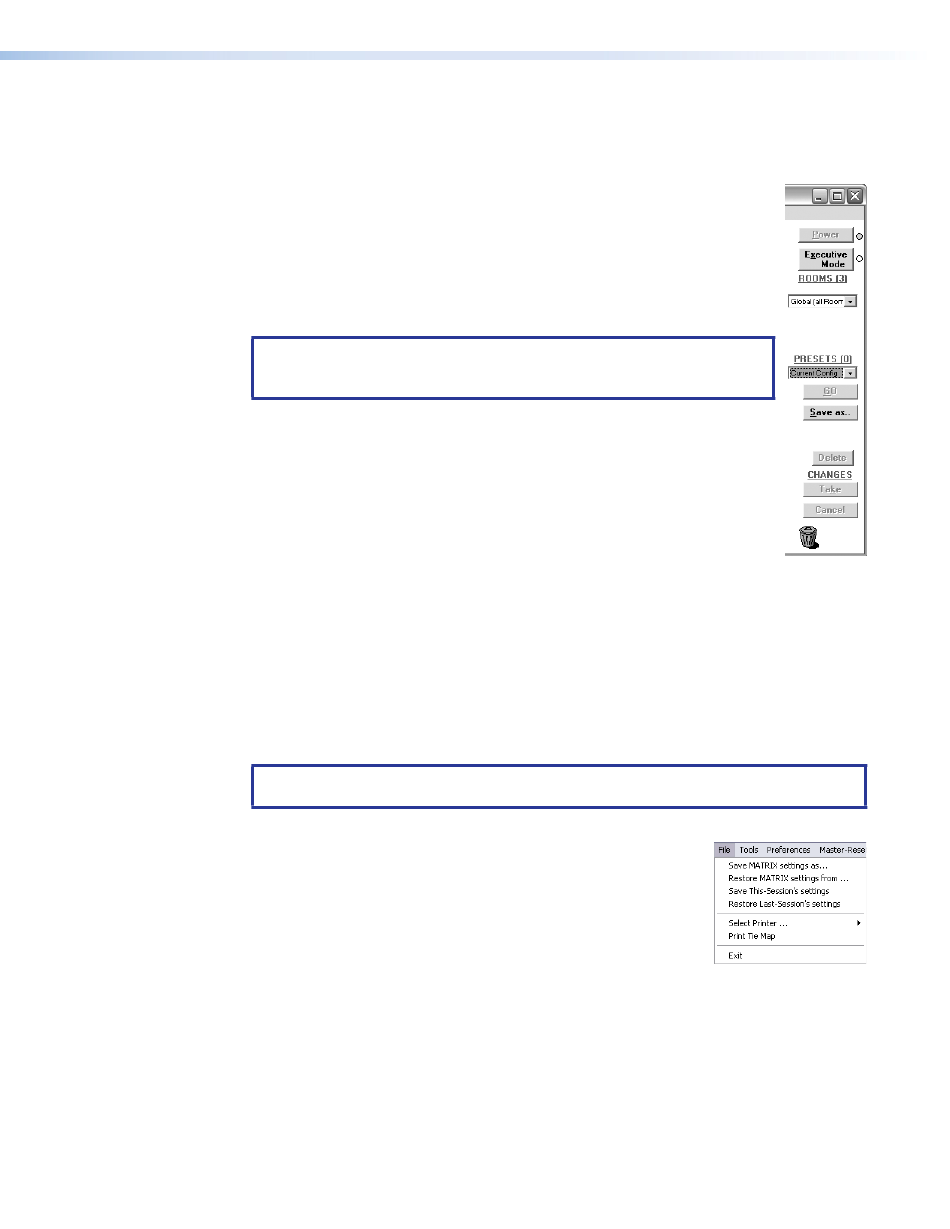

The buttons, drop boxes, and trash can on the right side of the Matrix Switchers
Control Program window perform the following functions:
Power — Unavailable for DMS matrix switchers, because the switcher
power cannot be controlled via software.
Executive Mode — Allows you to lock out front panel operations, except for
the view-only mode functions. Click the button to cycle between locked (the
indicator displays red) and unlocked (the indicator is white).
Rooms menu — Displays a list of up to 10 rooms. You can select a room from
the list to display it in the window.
NOTE: A Room is a subset of outputs that are logically related to each
other, as determined by the operator. The DMS matrix switcher supports
up to 10 rooms, each of which can consist of from 1 to 16 outputs.
Presets menu — Displays a list of up to 32 global presets and up to 100
room presets (10 rooms x 10 presets per room). You can select a preset from
the list to display it and either activate it (Go) or delete it (Delete).
Presets – Go — Activates the selected preset as the current configuration.
Presets – Save as ... — Allows the current set of ties to be saved as a
preset. Enter the preset number when prompted to do so.
Presets – Delete — Allows the current preset to be deleted.
Changes – Take — Allows you to save to file any changes made to the displayed
configuration.
Changes – Cancel — Returns to the previous screen, undoing any changes you have
made.
Trash can — Drag and drop from an input or output button to the trash can to erase all ties
associated with that input or output.

Windows Menus

NOTE: Selections in the various drop-down menus in the following pages that are gray
are unavailable for selection.
File menu
Save Matrix settings as ... — Saves a complete set of up to
32 presets, plus the last active setting (preset #0), to a file. Saved
settings include assigned icons and icon captions.
Restore Matrix settings from ... — Loads and activates a
previously saved setting file.
Save This-Session's settings — Saves the current
assigned icons and icon captions.
Restore Last-Session's settings — Loads the icons and icon captions that were
saved during the last session. If you saved the changes from the previous session the last
time you exited the program, the ties from that session are also loaded.
Select printer — Selects the target printer.
Print tie map — Prints the tie set that is displayed on the screen.
Exit — Closes the Matrix Switchers Control Program.
