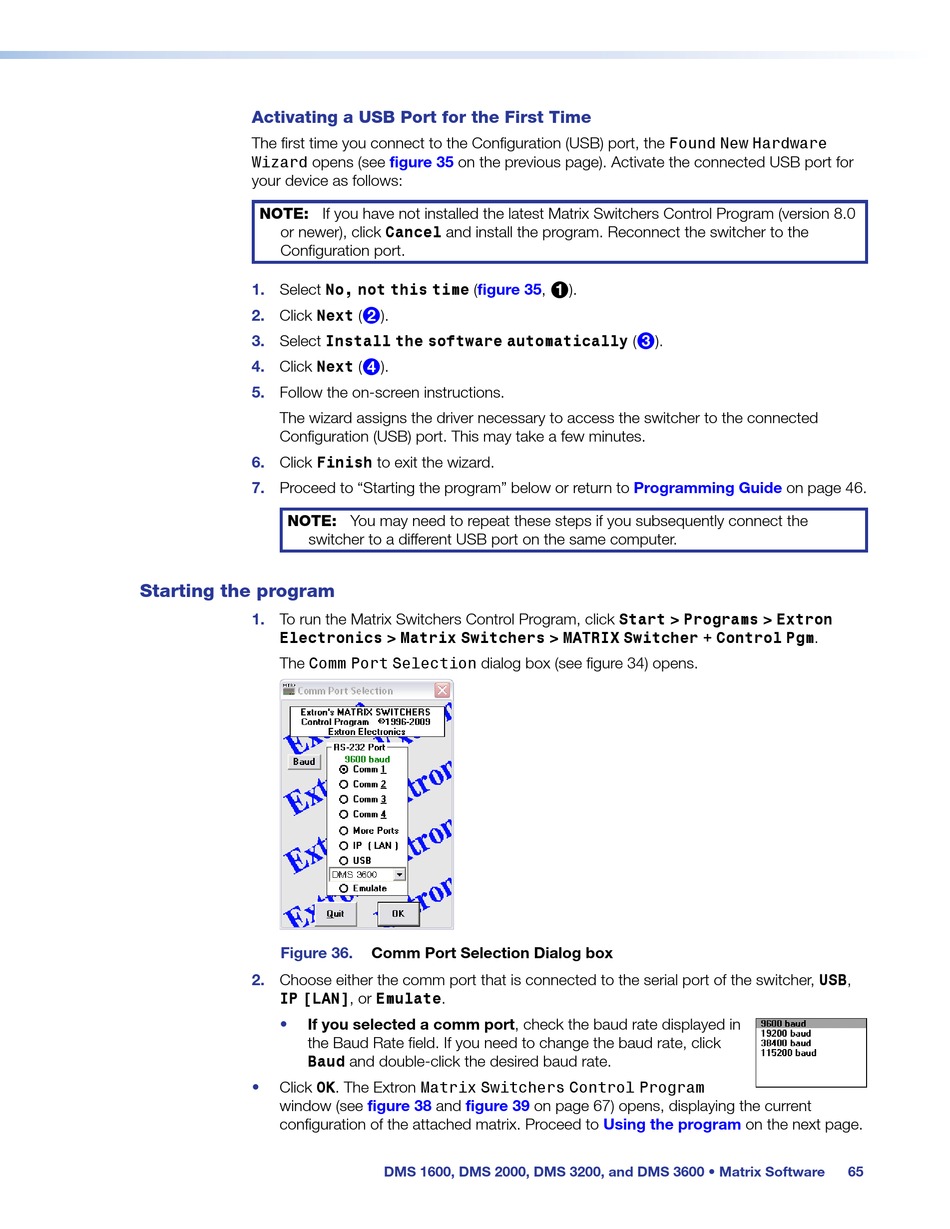

Starting The Program - Extron electronics DMS 1600 User Manual

Activating a USB Port for the First Time
The first time you connect to the Configuration (USB) port, the Found New Hardware
Wizard opens (see
your device as follows:
NOTE: If you have not installed the latest Matrix Switchers Control Program (version 8.0
or newer), click Cancel and install the program. Reconnect the switcher to the
Configuration port.
1. Select No, not this time
2. Click Next (
3.
Select Install the software automatically (
4. Click Next (
5. Follow the on-screen instructions.
The wizard assigns the driver necessary to access the switcher to the connected
Configuration (USB) port. This may take a few minutes.
6. Click Finish to exit the wizard.
7. Proceed to "Starting the program" below or return to
NOTE: You may need to repeat these steps if you subsequently connect the
switcher to a different USB port on the same computer.

Starting the program

1. To run the Matrix Switchers Control Program, click Start > Programs > Extron
Electronics > Matrix Switchers > MATRIX Switcher + Control Pgm.
The Comm Port Selection dialog box (see figure 34) opens.
Figure 36.
2.
Choose either the comm port that is connected to the serial port of the switcher, USB,
IP [LAN], or Emulate.
• If you selected a comm port, check the baud rate displayed in
the Baud Rate field. If you need to change the baud rate, click
Baud and double-click the desired baud rate.
• Click OK. The Extron Matrix Switchers Control Program
window (see
configuration of the attached matrix. Proceed to
figure 35 on the previous page). Activate the connected USB port for
(figure 35,
).
2
).
4
Comm Port Selection Dialog box
figure 38 and figure 39 on page 67) opens, displaying the current
DMS 1600, DMS 2000, DMS 3200, and DMS 3600 • Matrix Software
).
1
).
3
Programming Guide
Using the program
on page 46.
on the next page.
