Extron electronics DMS 1600 User Manual page 9

DVI Equipped
PCs
Compact HDTV
Camera Systems
HD Camera
FOXBOX Rx DVI Plus
POWER
MODE
12V POWER DVI-D INPUT RS-232
AUDIO
12V MODE
1.0A MAX DVI-D OUTPUT AUDIO OVER FIBER ALARM RS-232
ON 1.0A MAX
OVER FIBER ALARM
1 2
FOXBOX 4G Rx DVI Tx Rx 1 2
Tx Rx 1 2
FOXBOX 4G Tx DVI
FOXBOX Tx DVI Plus
POWER
12V MODE
DVI-D OUTPUT AUDIO RS-232
1.0A MAX OVER FIBER ALARM
ON
POWER
12V DVI-D INPUT AUDIO RS-232
1.0A MAX OVER FIBER ALARM
1 2
FOXBOX 4G Rx DVI Tx Rx 1 2
FOXBOX 4G Tx DVI Tx Rx 1 2
PC
Figure 1.
Each switcher model supports a different number of I/O boards of any of the above type.
With only one input and output board, each is configured as a 4-input by 4-output matrix.
By adding or removing I/O boards within certain rules that are detailed in
page 9, you can expand and contract the DMS matrix as follows:
DMS 1600 — Supports up to four I/O boards, up to a 16-input by 16-output matrix.
DMS 2000 — Supports up to five I/O boards, up to a 20-input by 20-output matrix.
DMS 3200 — Supports up to eight I/O boards, up to a 32-input by 32-output matrix.
DMS 3600 — Supports up to nine I/O boards, up to a 36-input by 36-output matrix.
The matrix switcher routes any input signal to any combination of outputs. The matrix
switcher can route multiple input/output configurations simultaneously.
One or two internal, 100 VAC to 240 VAC, 50-60 Hz, 175-watt power supplies provide
worldwide power compatibility and reliability in the following configurations:
•
•
•
•
DVI-D INPUTS
A B C
FAN ASSEMBLY
DVI-D INPUTS
A B C
DVI-D INPUTS
A B C
DVI-D INPUTS
A B C
FAN ASSEMBLY
DISCONNECT BOTH POWER
CORDS BEFORE SERVICING
PRIMARY POWER SUPPLY
REDUNDANT
100-240V
50/60Hz
1.2A MAX.
PRIMARY
100-240V
50/60Hz
1.2A MAX.
ANAHEIM, CA
Extron
DMS 3600
Modular DVI Matrix Switcher
DVS 605

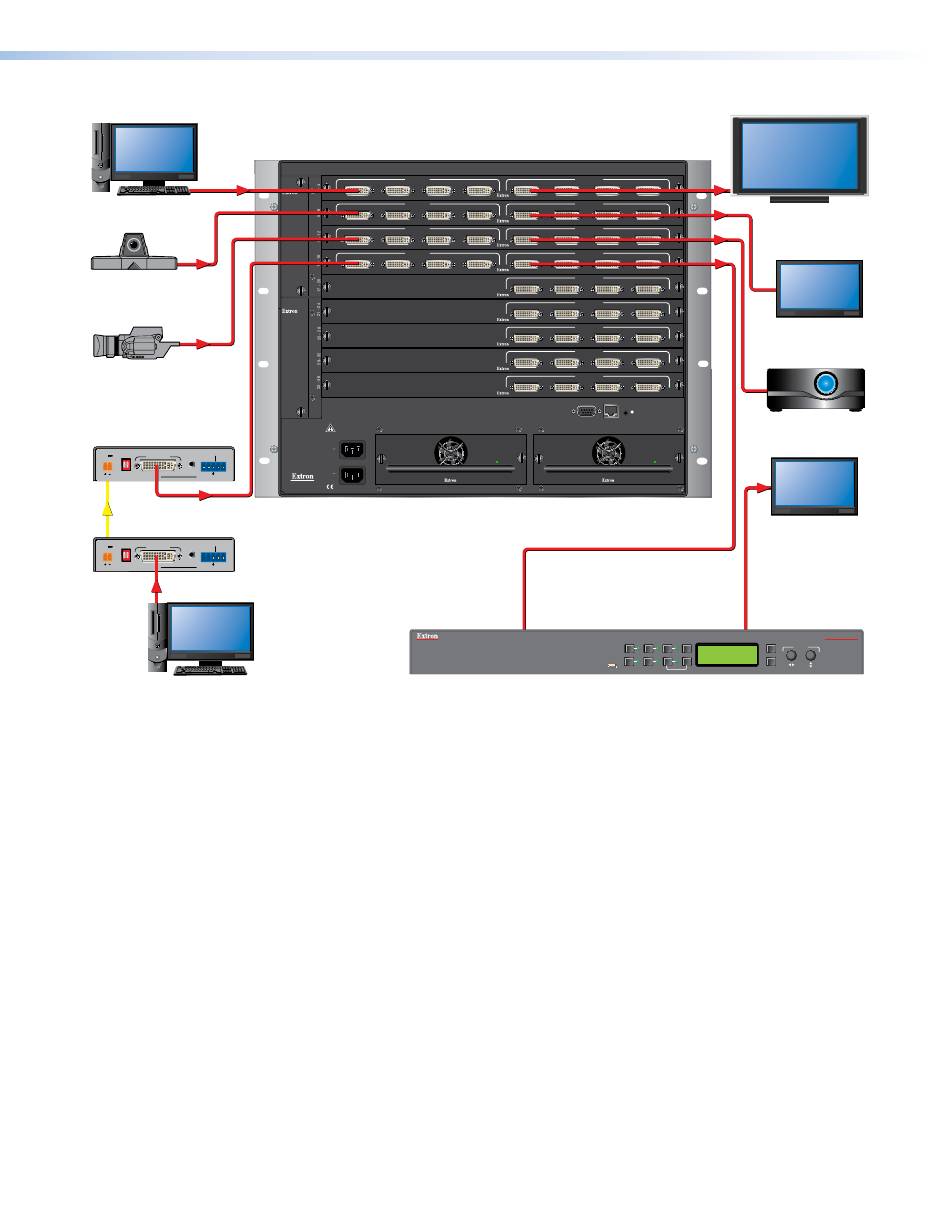

Typical DMS 3600 Application
DMS 3600 — Two replaceable, hot-swappable power supplies
DMS 1600 — One replaceable, hot-swappable power supply with a second
replaceable supply as an option
DMS 2000 — One built-in power supply
DMS 3200 — One built-in power supply
DMS 1600, DMS 2000, DMS 3200, and DMS 3600 • Introduction
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
D A B C D
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
DVI-D OUTPUTS
A B C D
LAN
REMOTE
RS232/RS422
ACT LINK RESET
REDUNDANT POWER SUPPLY
1 2
4 5
CONFIG
HDTV Monitors
Digital Monitors
DVI Projectors
Analog Monitor
DVS 605
MENU DIGITAL VIDEO SCALER
3 AUTO
ADJUST
NEXT
PIP SWAP
I/O Boards, on
2
