Mounting

4.
No sharped edged or heavy articles may affect on the cables. In any case, avoid definitely kinking of the
NOTICE
cables.
> Damage or destruction of the cable, failure of the sensor
Connection
fiber optics

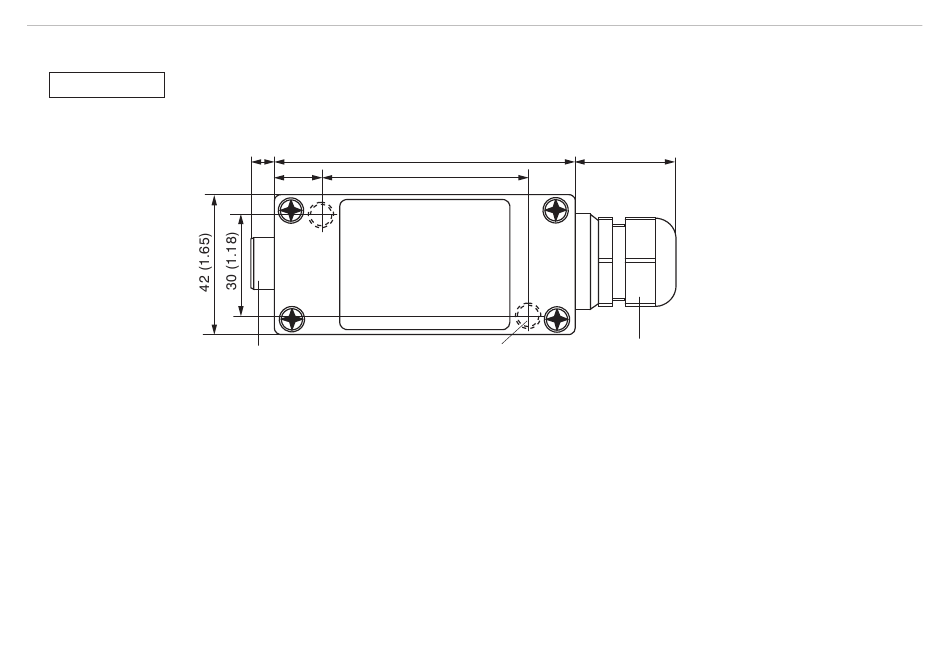

Fig. 3 Dimensional drawing of optoCONTROL CLS-K, dimensions in mm, not to scale
optoCONTROL CLS-K
Mounting
7 (.28)
88 (3.46)
14
60 (2.36)
(.55)
Height: 45 mm Bore hole for mounting
(1.77) (for M5 screw)
31 (1.22)
PG 13.5
