Electrical Connections; Pin Assignment Model Cls-K-10 Up To -51; Cls-K-10; Cls-K-11 To -51 - MICRO-EPSILON optoCONTROL CLS-K-10 Instruction Manual

Electrical Connections

5.
5.1
5.1.1
Pin assignment
brown
pink
green
yellow
gray
white

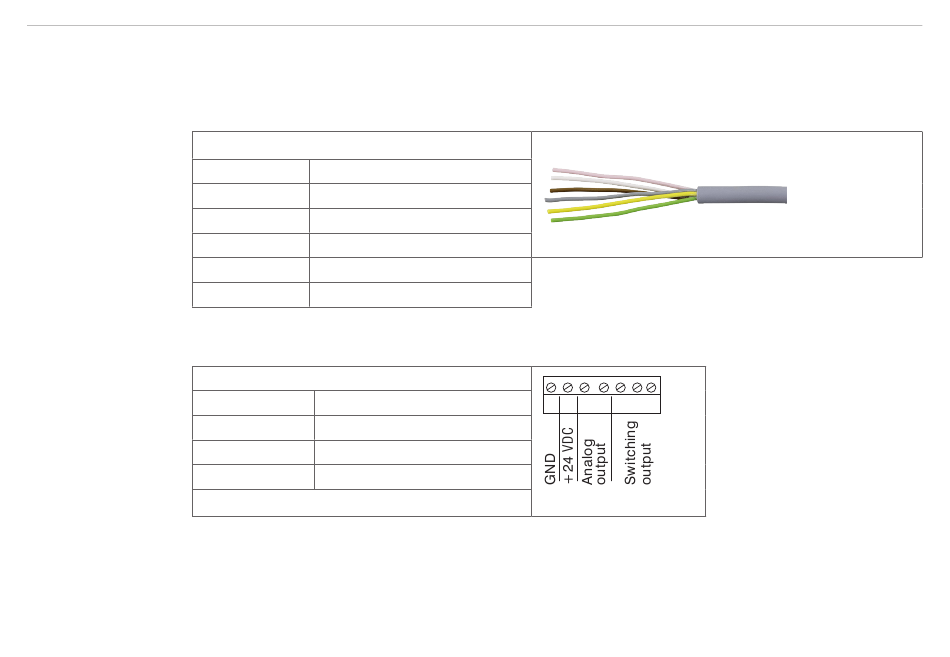

Fig. 9 Pin assignment model CLS-K-10
5.1.2
Terminal block
CLS-K-11
CLS-K-20/-40
CLS-K-30/-50
CLS-K-31/-51
All models light/dark switching
Fig. 10 Pin assignment models CLS-K-11 to -51
The analog output, terminal block 3 and 4 (signal depends on the amount of light 0.1 - 5 V) is particularly
suitable for optimization of the probe position, for self-monitoring of the control path as well as for measuring,
inspection or monitoring applications. Furthermore, this output allows the function reserve.
The minimum voltage difference for reliable switching is ≥ 0.2 V (factory setting 1.6 - 1.8 V).
optoCONTROL CLS-K
Electrical Connections

Pin Assignment Model CLS-K-10 up to -51

CLS-K-10

1
GND
+24 VDC
Analog output +
Analog output GND
NPN switching output
NPN switching output

CLS-K-11 to -51

NPN O.C.
Relay
Optocoupler O.C. / O.E.
PNP
Fig. 8 Power supply cable, open ends
2
3
1 2 3 4 5 6 7
1) No terminal block available
2) Dark switching
3) Light switching
Page 20
