Operation and Setting
6.2.4
The amplifier CLS-K-61 has the following additional special functions:
- Zero offset
- Signal spreading / Signal amplification
The amplifier offers the possibility to spread the signal range which is of special interest for the application to
the analog range.
LED green
LED red
S1 Range switching

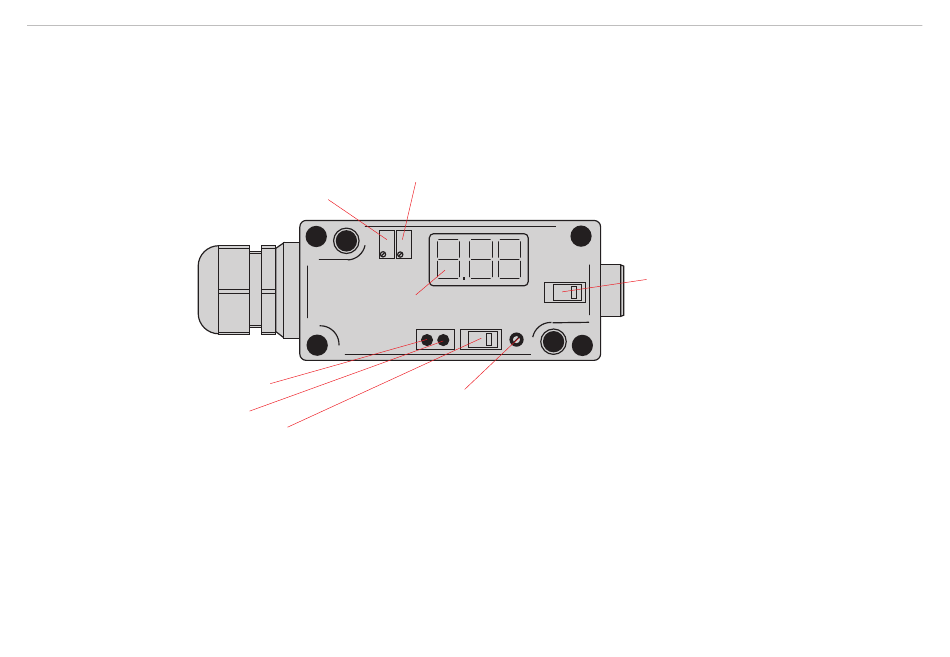

Fig. 21 Operating and display elements model CLS-K-61 / Special functions
optoCONTROL CLS-K
Special Function for CLS-K-61
P3 OFFSET
P2 Additional amplification
zero offset
(Signal spreading)
Display
P1 Potentiometer sensitivity
S2
1 2
Selector switch analog output
1 Basic function 0.1 - 5 VDC
2 Output 0 - 10 VDC
Page 29
