8.3 E3h Exterior and Terminal Dimensions

8.3.1 E3h Exterior Dimensions
3X 13 (0.5)
8 8
1578
1537
(62.1)
(60.5)
1348
(53.1)
A
13 (0.5)
15 (0.6)
30
10 (0.4)
(1.2)
10 (0.4)
506
A
(19.9)

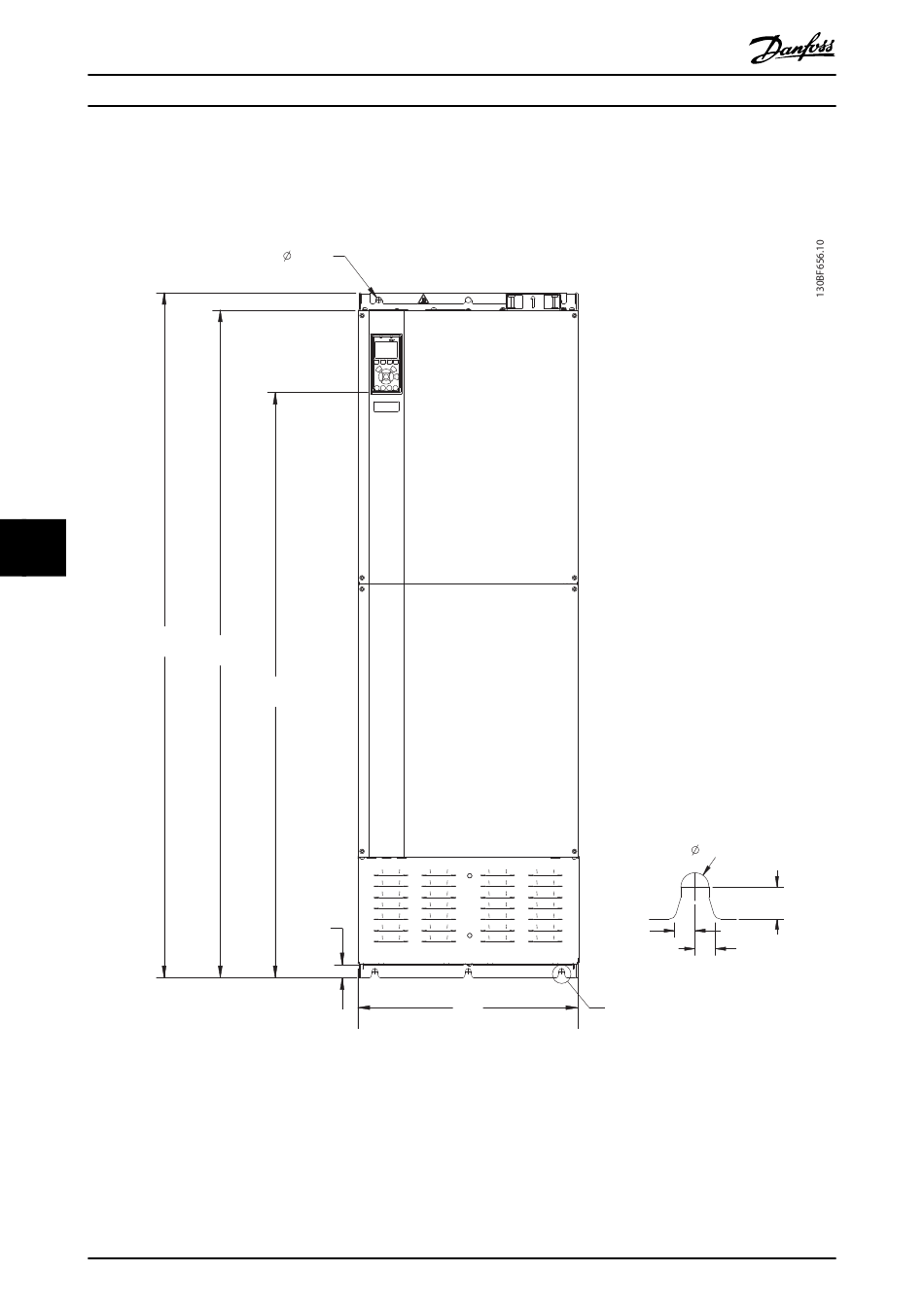

Illustration 8.13 Front View of E3h
