Danfoss VLT AQUA Drive FC 202 Design Manual page 59

Exterior and Terminal Dimen...
262
(10.3)
19 (0.7)
1 RFI shield termination (standard with RFI option)
2 Cable/EMC clamp
3 Gland plate

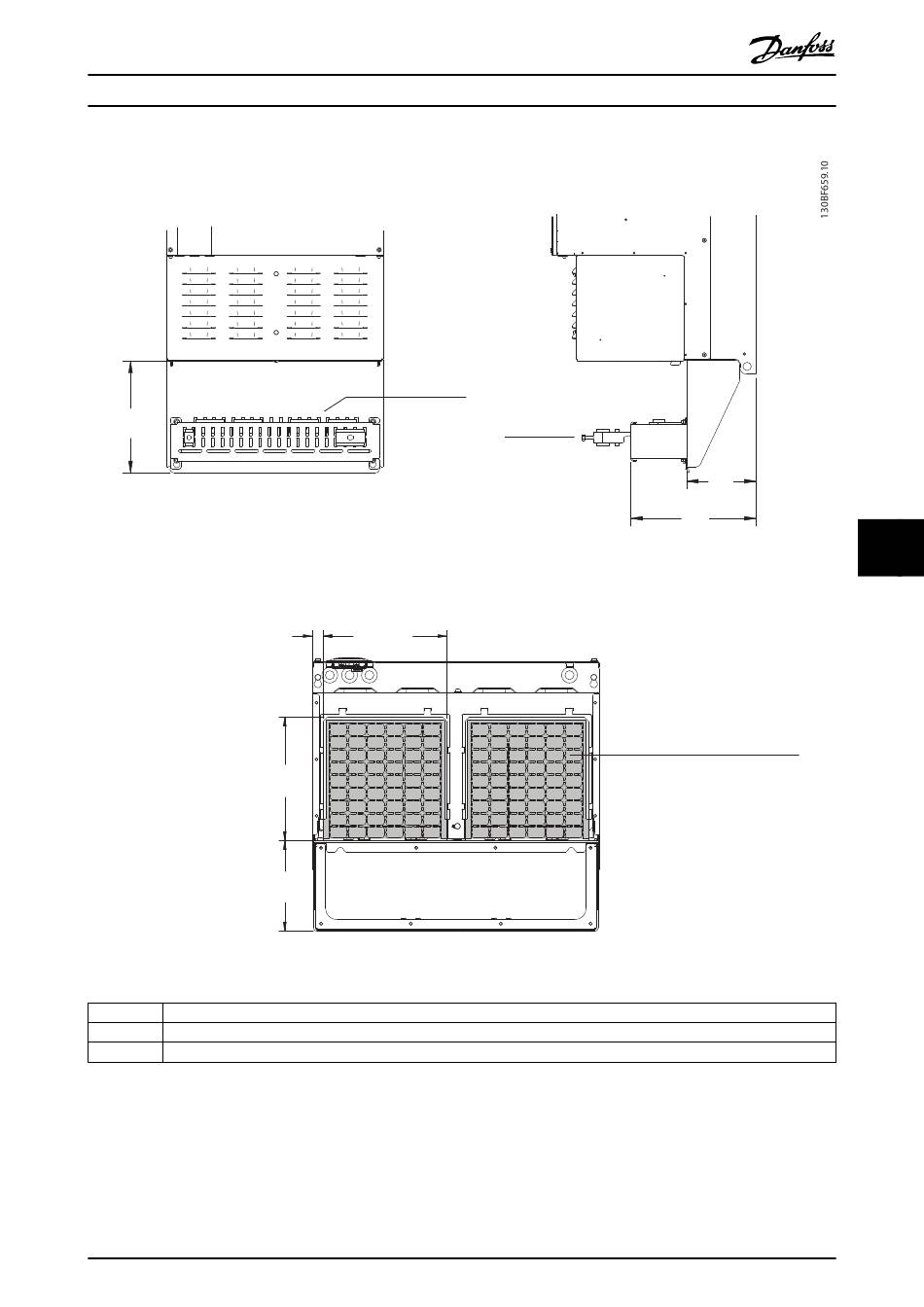

Illustration 8.16 RFI Shield Termination and Gland Plate Dimensions for E3h
MG22B102
Design Guide
2X 219 (8.6)
2X 220
(8.6)
160
(6.3)
Danfoss A/S © 05/2017 All rights reserved.
1
2
163
(6.4)
294
(11.6)
3
57
8 8
