Exterior and Terminal Dimen...
VLT® AQUA Drive FC 202
8.2 E2h Exterior and Terminal Dimensions
8.2.1 E2h Exterior Dimensions
97
3X
13 (0.5)
(3.8)
8
8
2043
2002
(80.4)
(78.8)
1553
(61.1)
1393
(54.9)
912
(35.9)
394
(15.5)
698
(27.5)

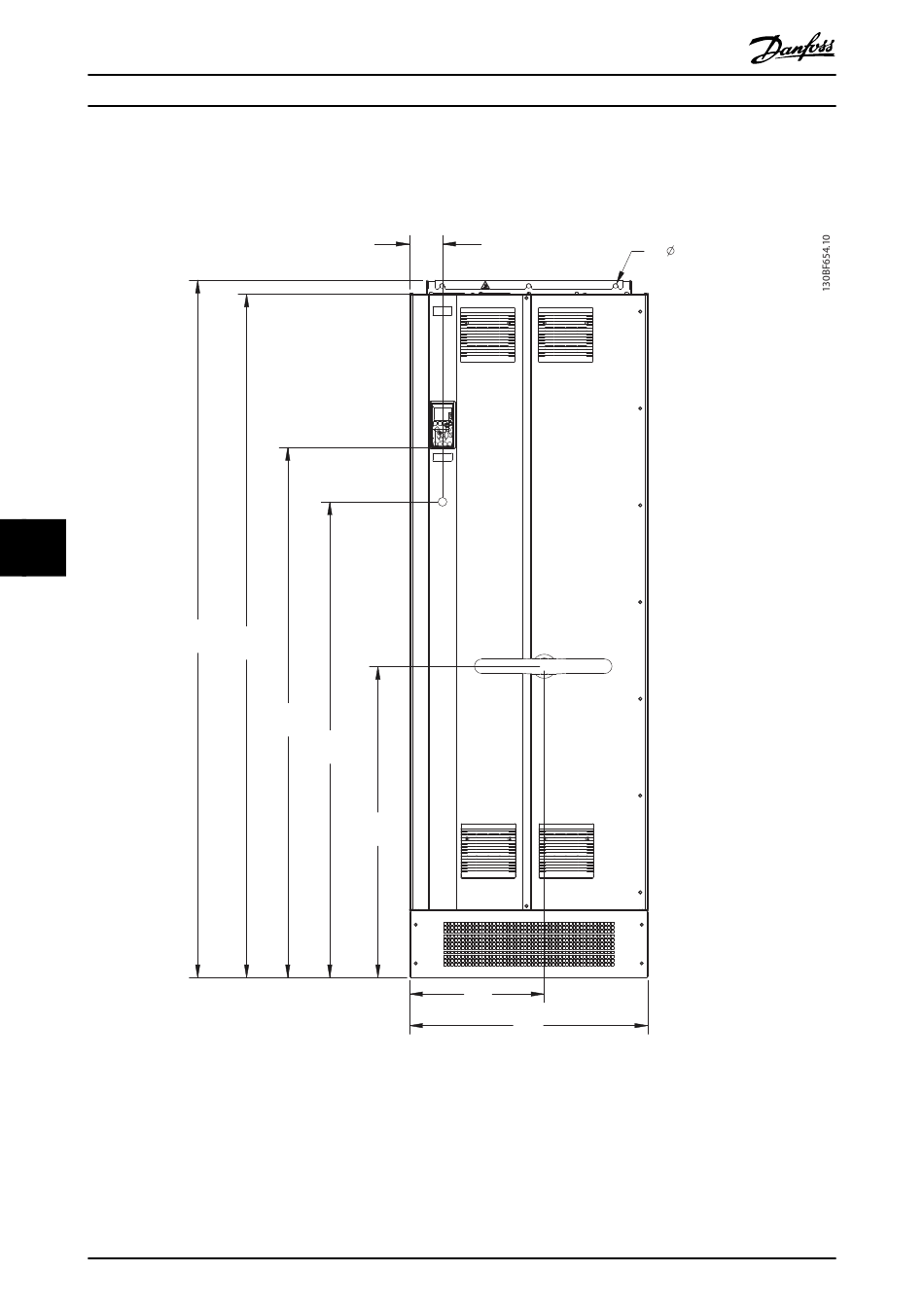

Illustration 8.7 Front View of E2h
48
Danfoss A/S © 05/2017 All rights reserved.
MG22B102
