Basic Operating Principles ...
11.2.7.3 Control Structure in Flux with Motor Feedback
Ref.
+
_
P 7-20 Process feedback
1 source
P 7-22 Process feedback
2 source

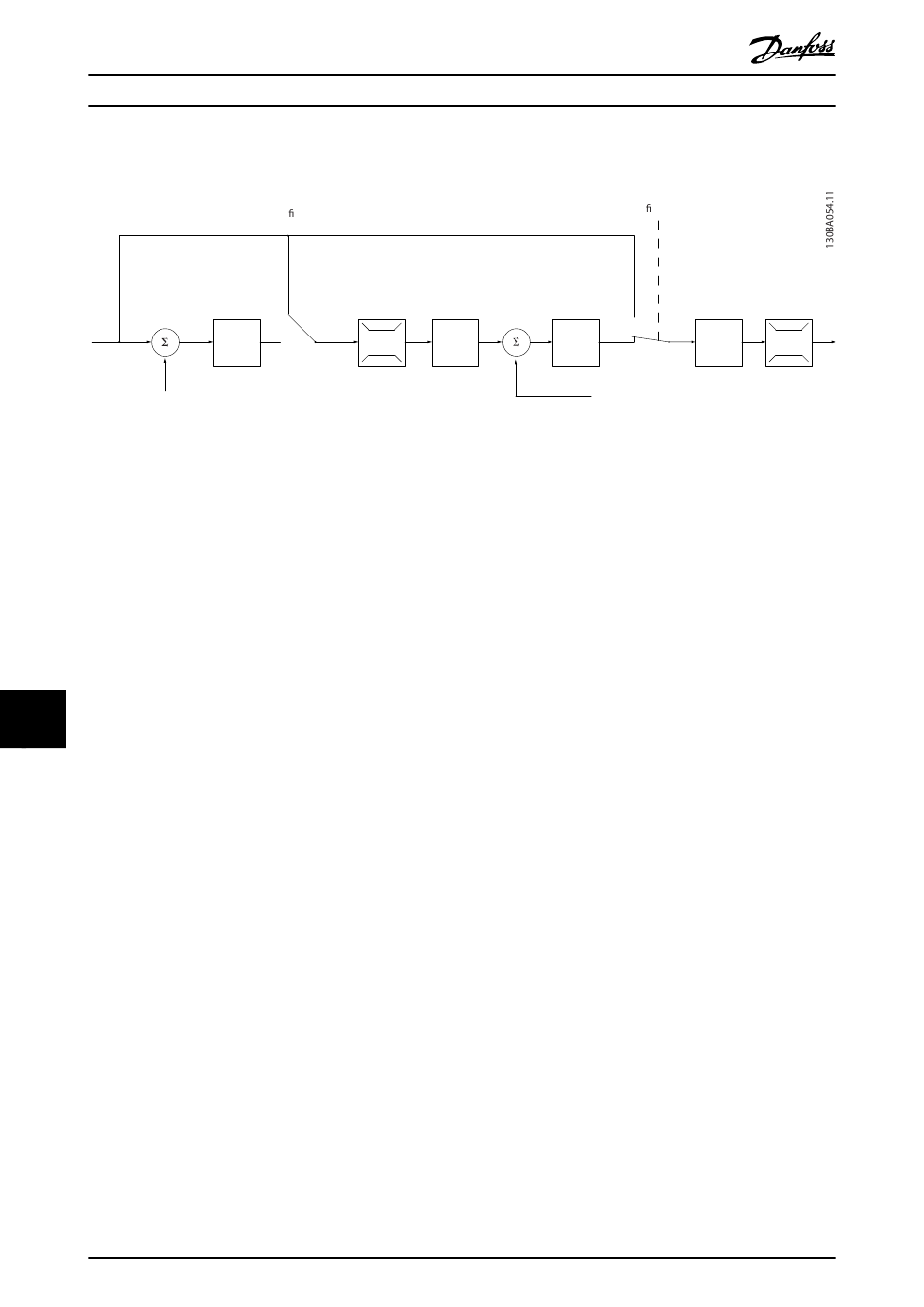

Illustration 11.10 Control Structure in Flux with Motor Feedback Configuration
In Illustration 11.10, the motor control in this configuration relies on a feedback signal from an encoder or resolver mounted
directly on the motor (set in parameter 1-02 Flux Motor Feedback Source). The resulting reference can be used as input for
the speed PID control, or directly as a torque reference.
Parameter 1-01 Motor Control Principle is set to [3] Flux w motor feedb and parameter 1-00 Configuration Mode is set to [1]
Speed closed loop. The speed PID control parameters are in parameter group 7-0* Speed PID Control
Torque control can only be selected in the Flux with motor feedback (parameter 1-01 Motor Control Principle) configuration.
When this mode has been selected, the reference uses the Nm unit. It requires no torque feedback, since the actual torque
is calculated based on the current measurement of the drive.
Process PID control can be used for closed-loop control of speed or pressure in the controlled application. The process PID
11 11
parameters are located in parameter groups 7-2* Process Ctrl. Feedb and 7-3* Process PID Ctrl.
11.2.7.4 Internal Current Control in VVC
When the motor current/torque exceed the torque limits set in parameter 4-16 Torque Limit Motor Mode,
parameter 4-17 Torque Limit Generator Mode, and parameter 4-18 Current Limit, the integral current limit control is activated.
When the drive is at the current limit during motor operation or regenerative operation, it tries to get below the preset
torque limits as quickly as possible without losing control of the motor.
108
VLT® AQUA Drive FC 202
P 1-00
Con g. mode
P 4-13 Motor speed
high limit (RPM)
P 4-14 Motor speed
high limit (Hz)
High
P 7-2*
Process
PID
Low
P 4-11 Motor speed
low limit (RPM)
P 4-12 Motor speed
low limit (Hz)
Danfoss A/S © 05/2017 All rights reserved.
Torque
P 3-** P 7-0*
+
Speed
Ramp
PID
_
P 7-00
PID source
+
Mode
P 1-00
Con g. mode
P 4-19
Max. output
freq.
+f max.
Motor
controller
-f max.
