Installing Internal Hardware Options

You must disconnect the power cable, floppy cable, and any other exter-
nal cables connected to the unit before removing the back cover.

DRAM Single In-line Memory Modules (SIMMs)

You can order your system CPU factory-configured for many DRAM configurations.
You can reconfigure DRAM capacity by changing the DRAM SIMMs on your CPU
board.
The CHIP4e+ has one 72-pin in-line memory module (SIMM) site in which to add mem-
ory. Due to the CPU speed, DRAM access time should be 70 ns or less, and must be 60
ns to run with the fastest memory setting.
23

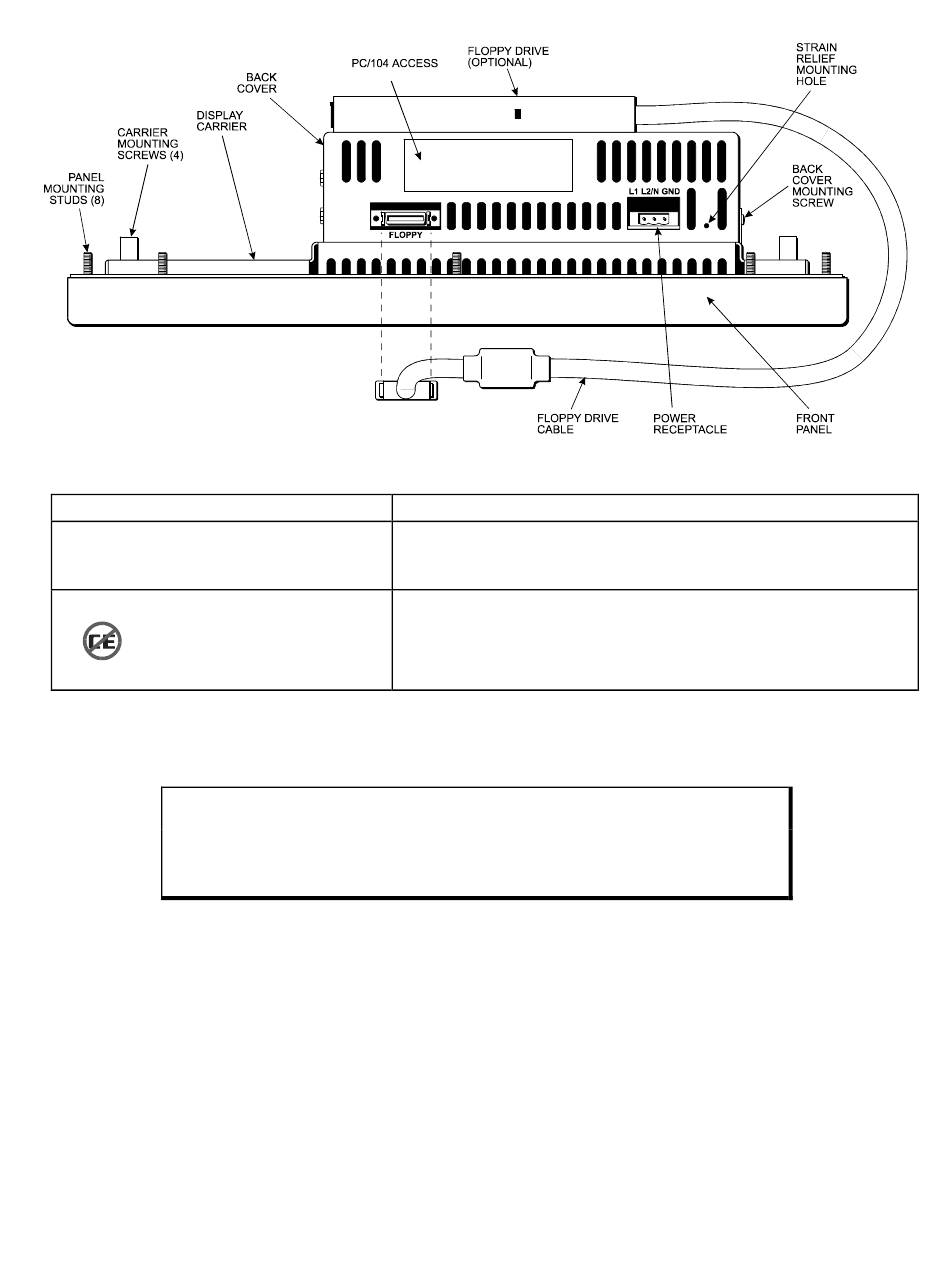

Figure 3-9. 3410/12 Power Panel
Description
The power receptacle is a three-pin connector. Refer to Haz-
ardous Location Installations section later in this chapter for
special installation instructions.
The 26-pin floppy drive connector lets you connect an optional
external floppy drive.
Warning
