3. Connect the serial loopback connector(s) and the printer cable to the appropriate
connectors and connect a PC/AT or PS/2 keyboard. Figure 2 -1 illustrates the wiring
necessary for the loopback connection.
4. Make sure the BIOS setup menus are set to the default settings.
11

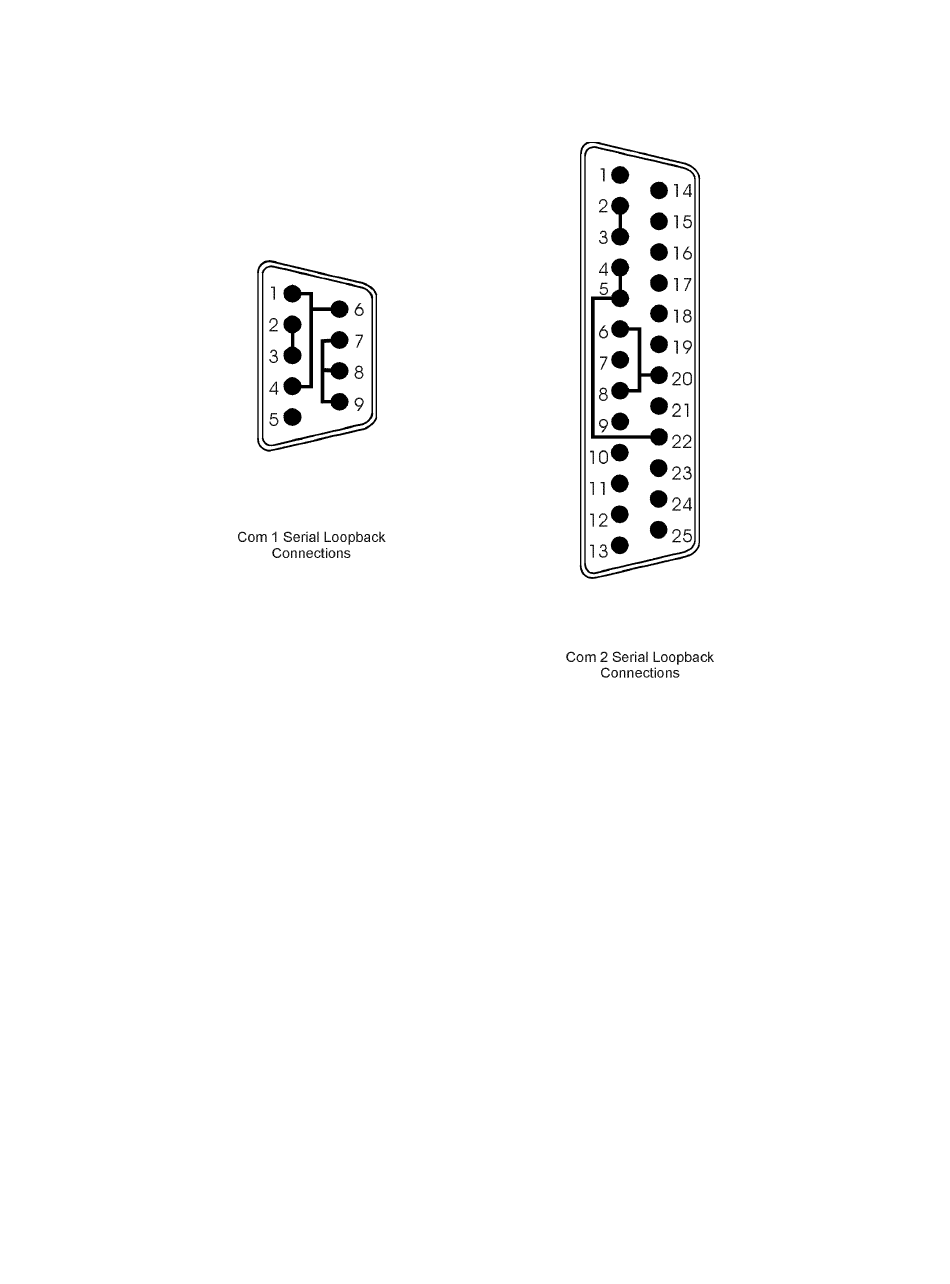

Figure 2-1. Serial Loopback Connections
