3700 Series Flat Panel Industrial PC
4. Insert the three wire ends of the power cable into the hole of the connector plug.
Bend the Protective Earth ground (PE) wire, the neutral (N) wire, and the line
(L) wire around the corresponding screws. Be sure that no bare wires are
exposed.
5. Tighten the three screws above the wires to hold them firmly in place.
Never tighten the three screws of the block plug when the cable is connected to
a power source. The screws are conductive and have full contact with the cable
wire.
6. Use the screw provided to secure and strain-relief the power cable inside the
connector. Plug the power cable into the power supply located on the side of the
unit. Install the plug retainer bracket over the plug (mandatory for hazardous
location installations).
7. Once the power cable and other optional interface cables are installed,
installation is complete.
When disconnecting the power cord from the unit, be sure to completely loosen
the two securing screws on the retainer bracket.

Installing Internal Hardware Options

Remove the lid to install internal hardware options.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

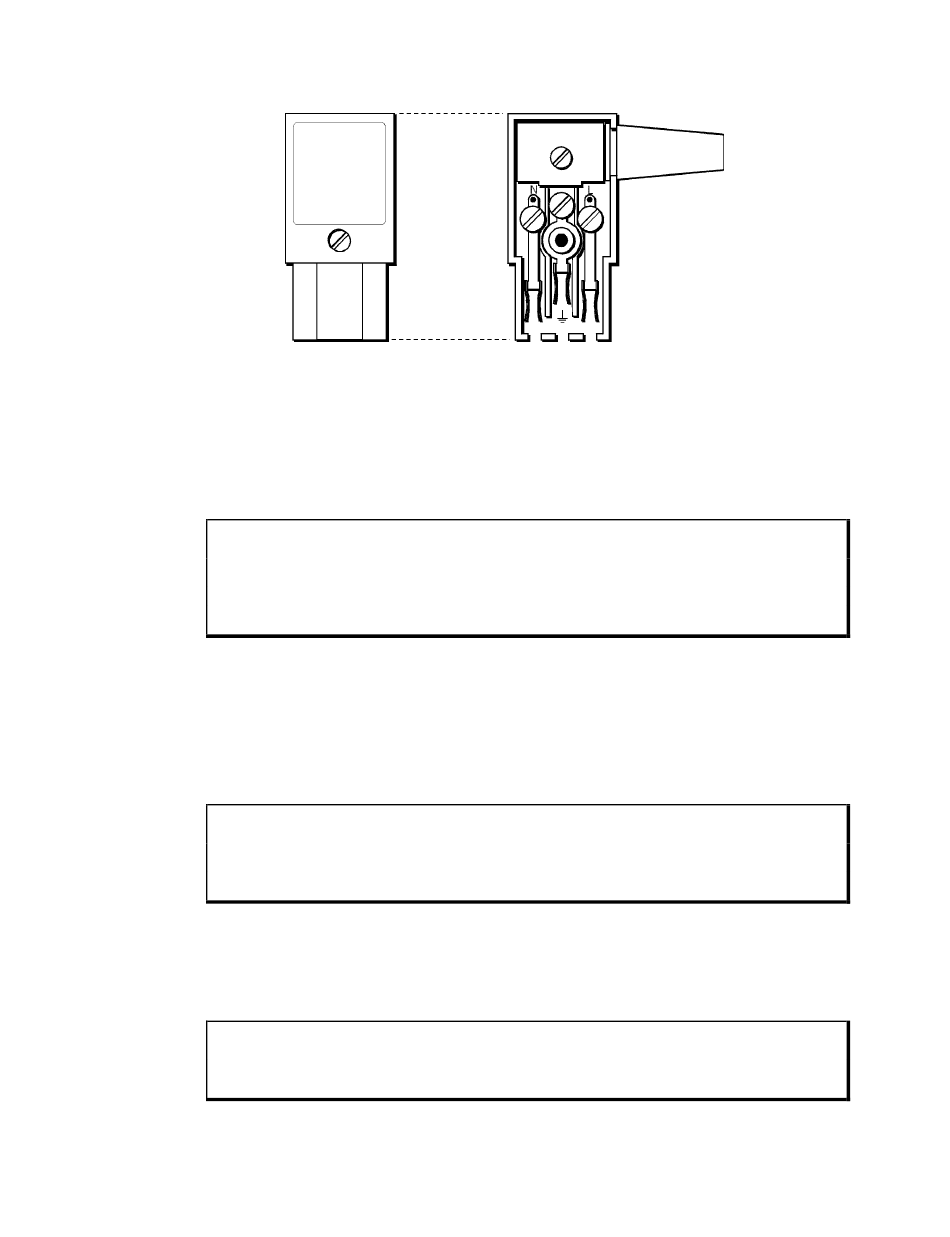

Figure 2-4. Internal View of 3700 AC Power Connector
Warning
Note
Caution
Turn off the unit before installing internal hardware.
19
Chapter 2 – Installation
