Chapter 4 - – Keypad Functionality
(3408KP/3410KP/3412KP)
The 3408KP, 3410KP and 3412KP include function/alpha, control/alpha, numeric, and
cursor control keypads.

Control Keypad

3408KP

This keypad provides seven control keys, six alpha keys (U-Z) and the space and + keys.
The
CTRL
do on a standard PC/AT-compatible keyboard.
Six of the keys are relegendable, as shown in Figure 4 -1. Refer to the Creating Custom-
ized Keypad Inserts section in Chapter 3 for detailed information.

3410KP/3412KP

This keypad provides seven control keys, and the space and + keys. The
,
ALT TAB
PC/AT-compatible keyboard. Six of the keys are relegendable, as shown in Figure 4 -2.
Refer to the Creating Customized Keypad Inserts section in Chapter 3 for detailed in-
formation.
57
, , , , ,
SHIFT INS ALT TAB

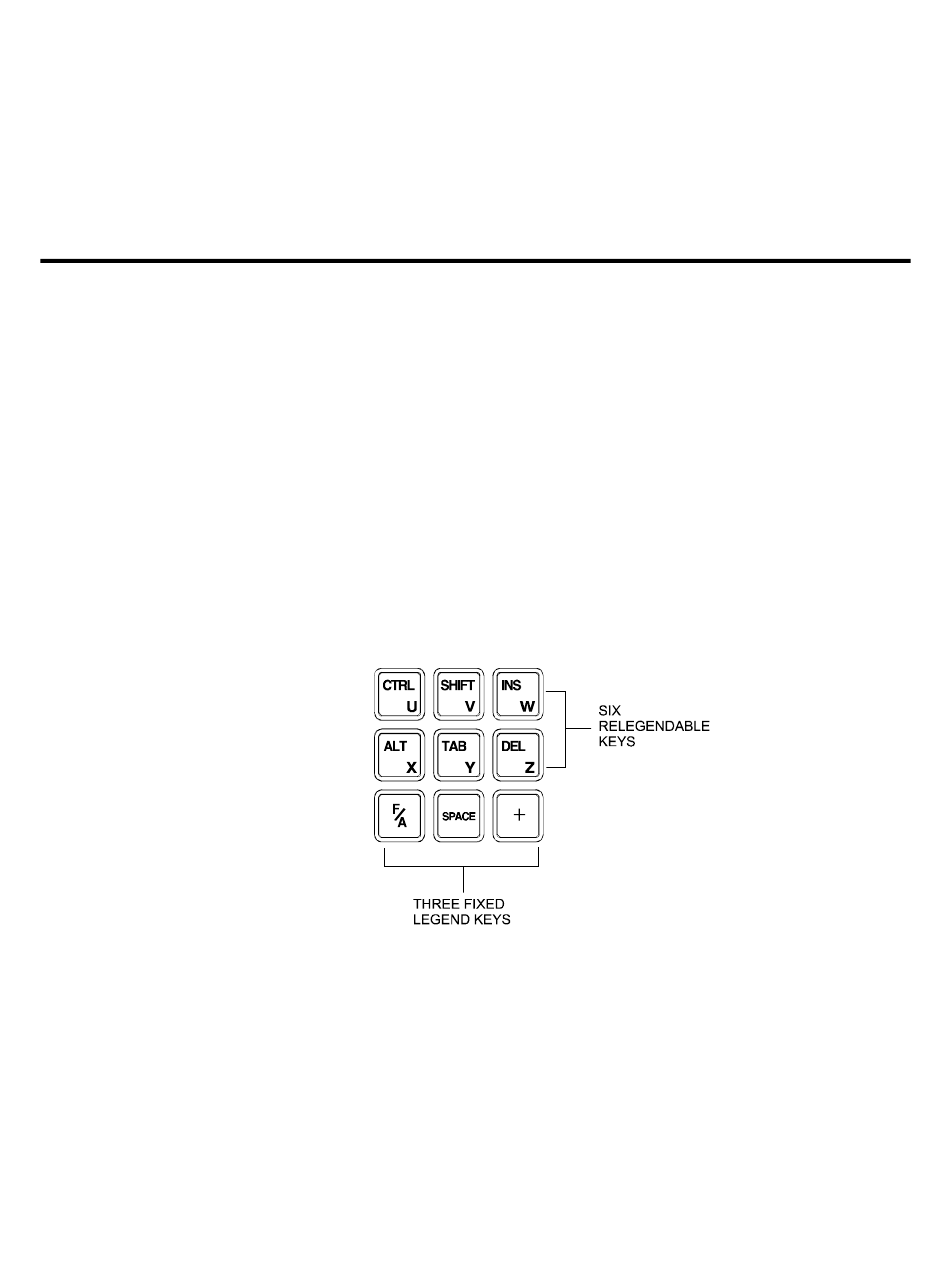

Figure 4-1. 3408KP Control/Alpha Keypad
, and + keys provide the same functions as they do on a standard
, ,
DEL SPACE
, , and + keys provide the same functions as they
DEL SPACE
, , ,
CTRL SHIFT INS
