Xycom 3400 Series Hardware Reference Manual page 90

3408/3410/3412 Series Industrial PC System Manual
12. Slide out the bulb assembly.
13. Carefully slide the new bulb assembly into the opening from which the old assembly
was removed.
We recommend that you replace both bulb assemblies at the same time.
14. Repeat steps 11 through 13 to replace the bulb assembly on the bottom edge of the
flat-panel display.
15. Reverse steps 1 through 9 to reassemble the unit.
90

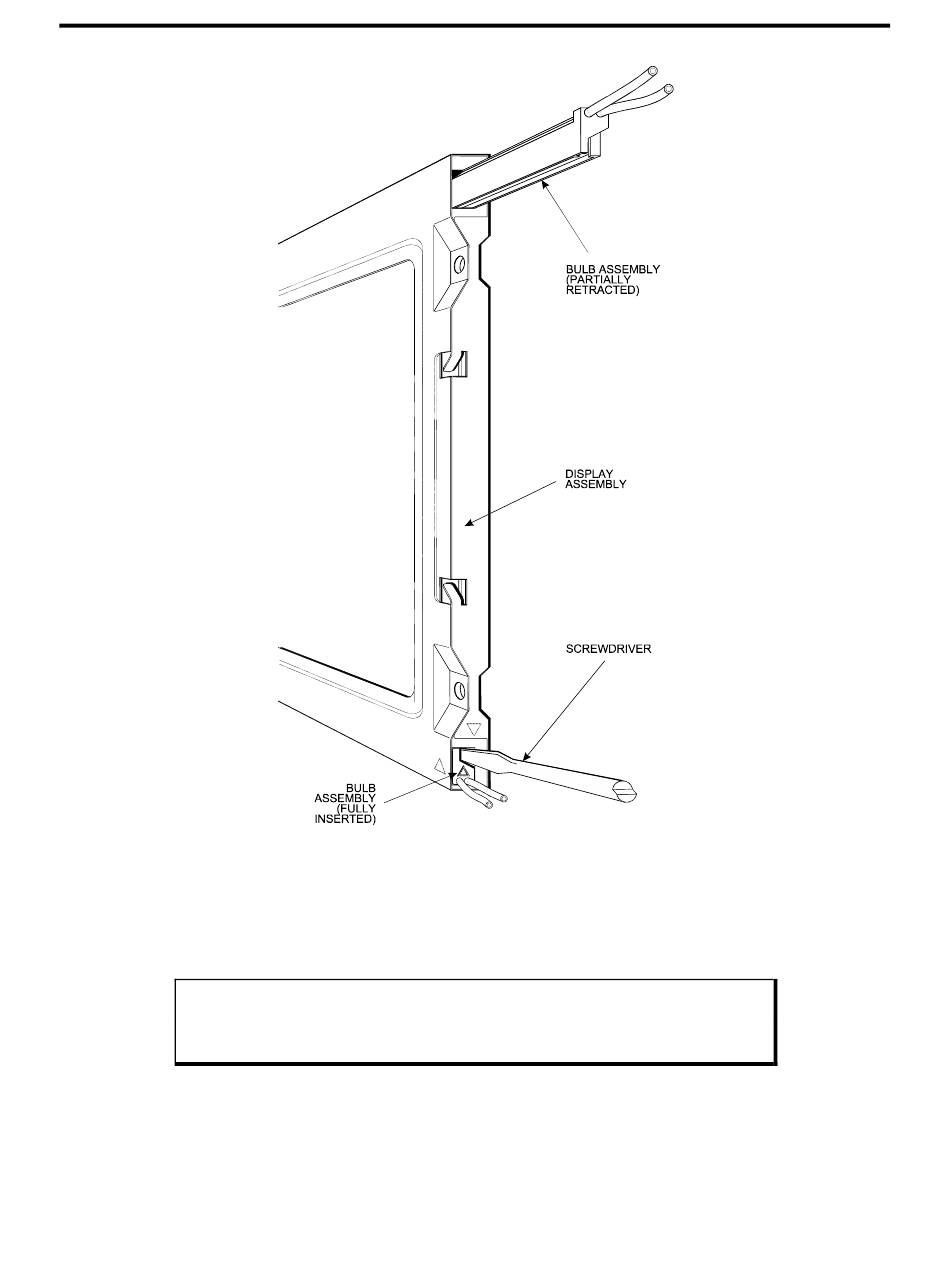

Figure C- 2. Model #LQ10D421 Bulb Assembly Removal
Note
