3410KP/3412KP Cutout Dimensions
0.35
(8.9)
11.55
(293.4)
9.25
(235.0)
4.625
(117.5)
1.15
(29.2)
49
15.10
(383.5)
10.85
(275.6)
1. All dimensions are expressed in inches (mm)
2. Torque 10-32 mounting nuts to 25 inch-lbs
(2.8 Nm) (28 Kgf cm)
3. Depth 5.75 (146.1)
60.50 (156.1) w/rear-mounted external
floppy drive
1.65 (41.9)
7.90 (200.7)
14.15 (359.4)
15.80 (401.3)

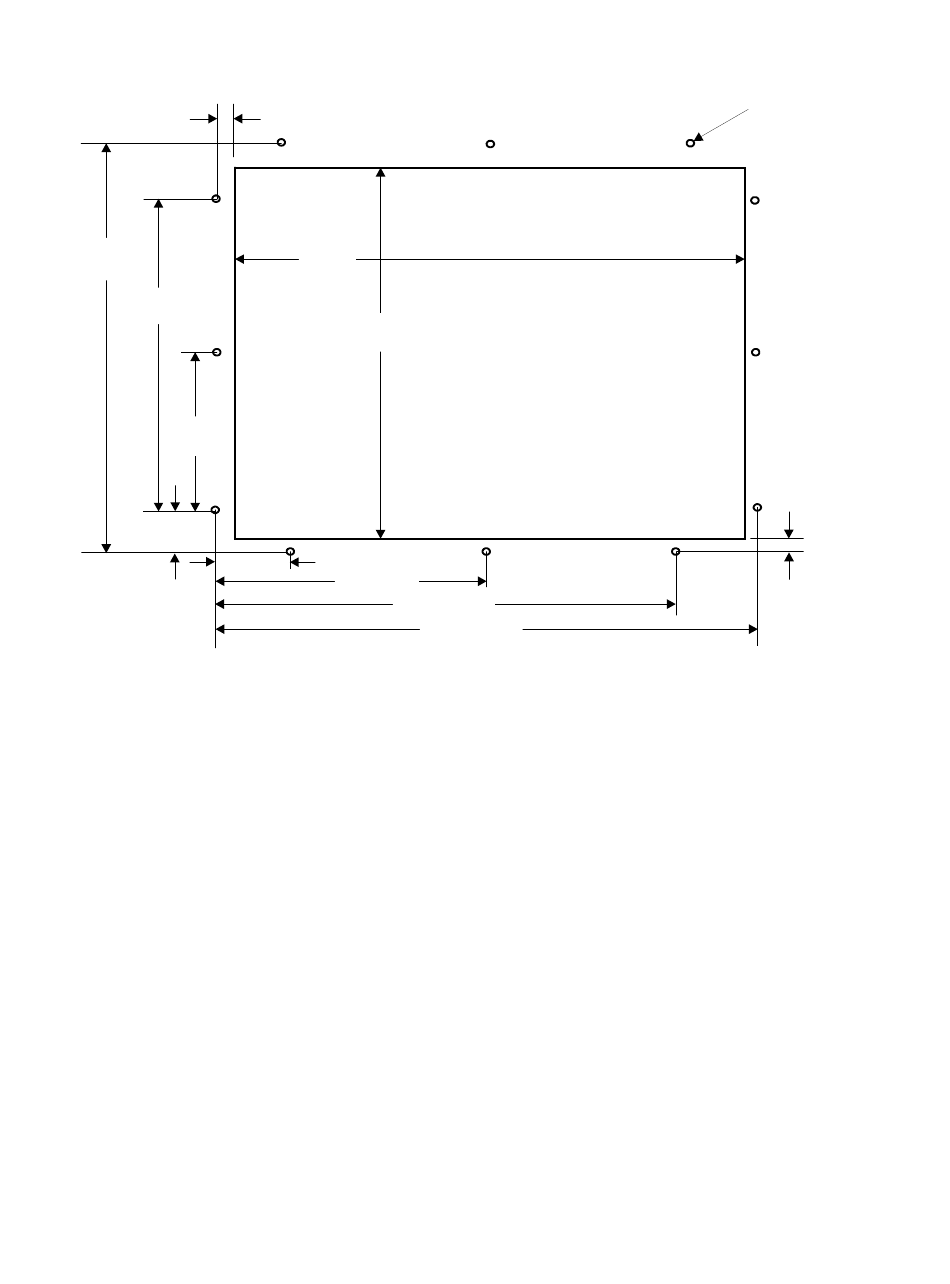

Figure 3-26. 3410/12KP System Cutout Dimensions
0.25 (6.4) diameter
(12 Places)
0.35
(8.9)
