3408/3410/3412 I/O Panel

Feature
Parallel port (LPT1)
COM1 port
COM2 port
Ethernet Port
Keyboard port
Mouse port
A pointing device using the auxiliary port may not operate reliably in
conjunction with an 84-key keyboard. Use of this combination is not
recommended.
20

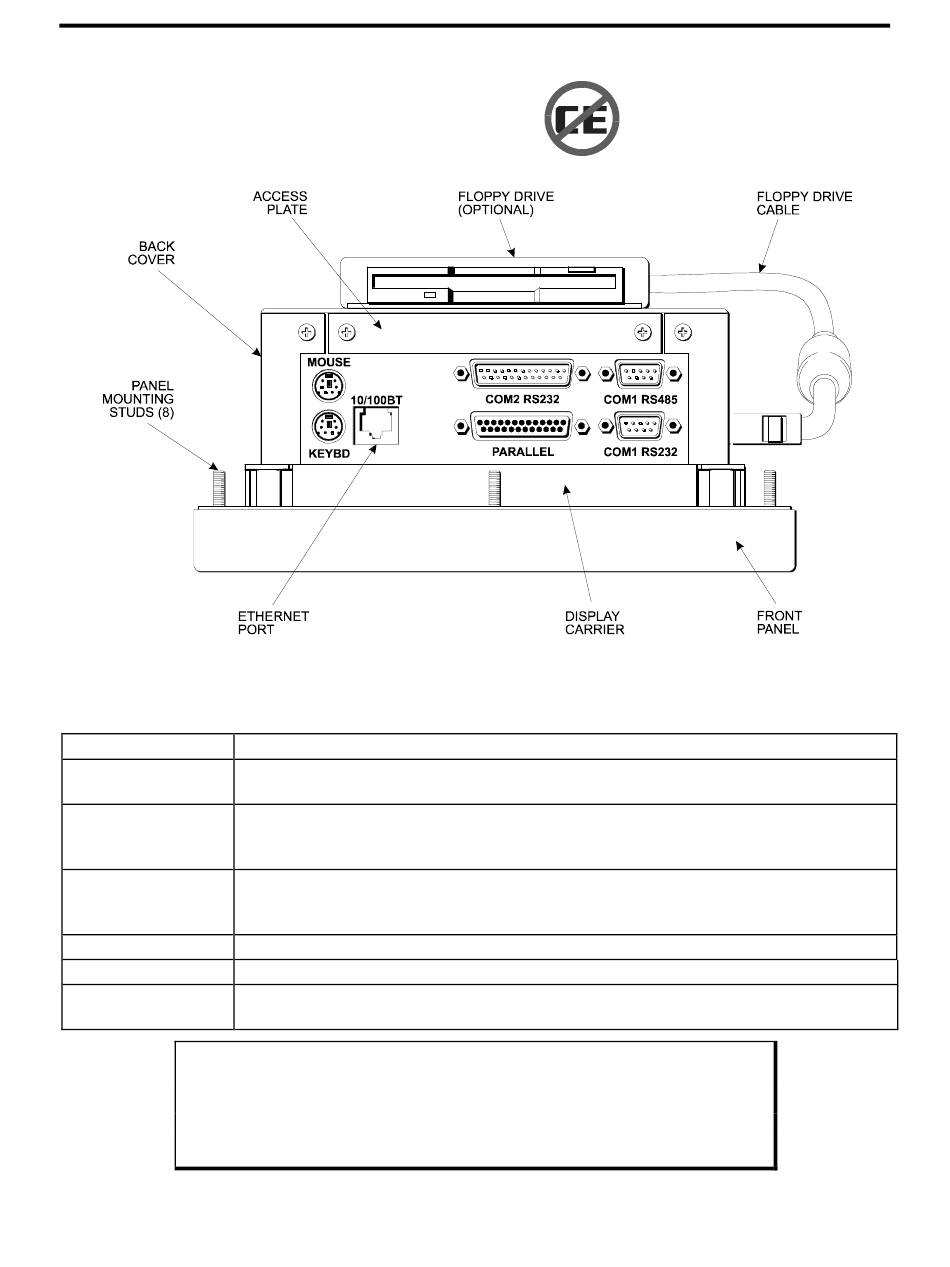

Figure 3-6. 3408/3410/3412 I/O Panel
Description
This port provides a standard PC-compatible interface to printers and other de-
vices. Note: Printing is not supported by units with Windows CE..
COM1 is RS-232/485 compatible. The nine pin lower connector is RS/232. The
upper connector is the RS/485 version of the same port. You can only use one of
these connectors at a time since they are attached to the same logical port.
COM2 is dedicated to the IR port, the touchscreen controller, or the 25-pin con-
nector. Only one option can be used at a time. An external pushbutton reset option
is available. Consult the CPU board manual for the jumper that controls this option.
This port provides a 10BASE-T/100BASE-TX autosensing Ethernet connection.
This port allows you to attach a PS/2-style keyboard.
This port allows you to attach a PS/2-style mouse. If the unit has a factory-installed
touchscreen, this port may be unavailable for other use.
Floppy Drive Option
not Available with Windows CE
Note
