Xycom 3400 Series Hardware Reference Manual page 88

3408/3410/3412 Series Industrial PC System Manual
Do not lift the bulb assembly straight up, as there is a tab that is inserted
in a slot on the right side of the display.
13. Take the new bulb assembly, and slide the tab on the right side into the slot on the
right side of the display.
14. When the tab is properly inserted, push down on the bulb assembly until the tab on
the left side of the assembly clicks into place.
We recommend that you replace both bulbs at the same time.
15. Repeat steps 12 through 14 to replace the other bulb assembly.
16. Reverse steps 1 through 11 to reassemble the unit.
88

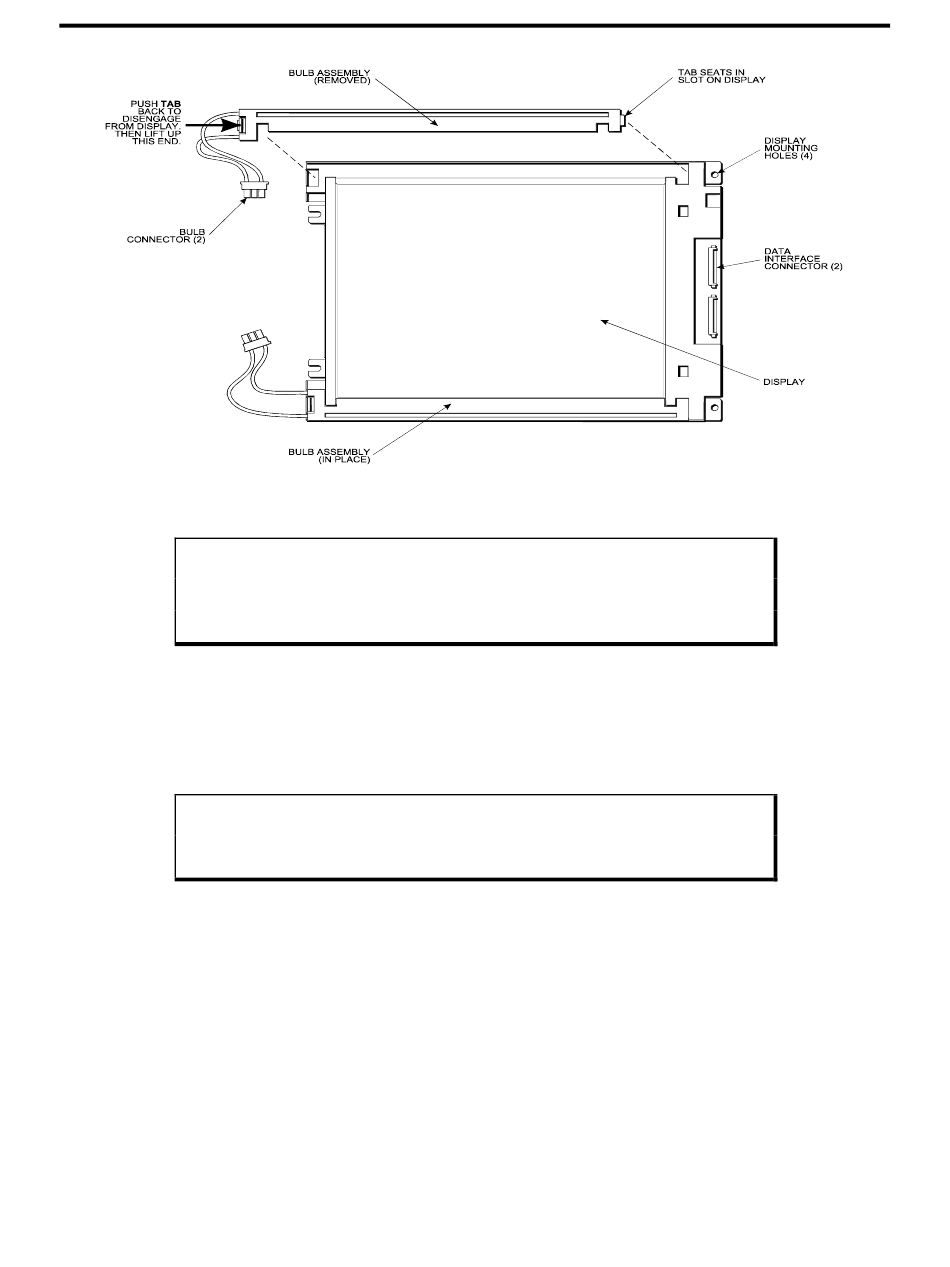

Figure C- 1.Model #KCS077VG2EA-A03 Bulb Assembly Removal
Note
Note
