3600 Series Flat Panel Industrial PC
4. Insert the three wire ends of the power cable into the hole of the connector plug.
Bend the Protective Earth ground (PE) wire, the neutral (N) wire, and the line
(L) wire around the corresponding screw. Be sure that no bare wires are exposed.
5. Tighten the three screws above the wires to hold them firmly in place.
Never tighten the three screws of the block plug when the cable is connected to
a power source. The screws are conductive and have full contact with the cable
wire.
6. Use the screw provided to secure and strain-relief the power cable inside the
connector. Plug the power cable into the power supply located on the side of the
unit. Install the plug retainer bracket over the plug (mandatory for Hazardous
Location installations).
7. Once the power cable and other optional interface cables are installed, the
installation is complete.
When disconnecting the power cord from the unit, be sure to completely loosen
the two securing screws on the retainer bracket.

Installing Internal Hardware Options

Remove the lid to install internal hardware options.
Installation of expansion boards may void safety and/or EMC compliance.

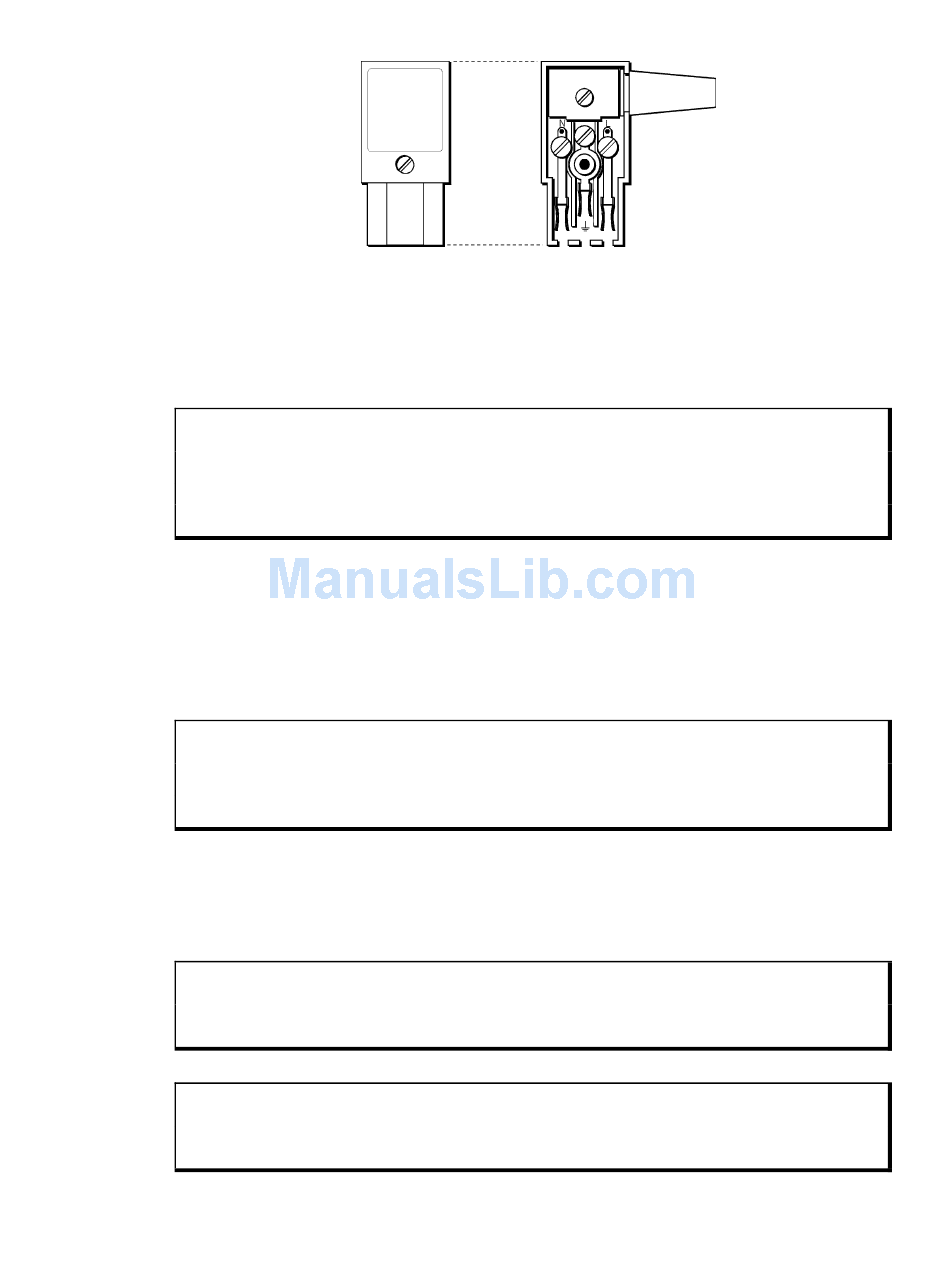

Figure 2–12. Internal View of a 3600 AC Power Connector
Warning
Caution
Turn off the unit before installing internal hardware.
Warning
22
Note
Chapter 2 – Installation
142214 (F)
