3408/3410/3412 Series Industrial PC System Manual
Creating Customized Keypad Inserts
You can customize your 3408 and 3410 keypads with keypad inserts. The following fig-
ures provide the necessary dimensions and recommended requirements to create cus-
tomized keypad inserts.
3408KP Keypad Inserts
28

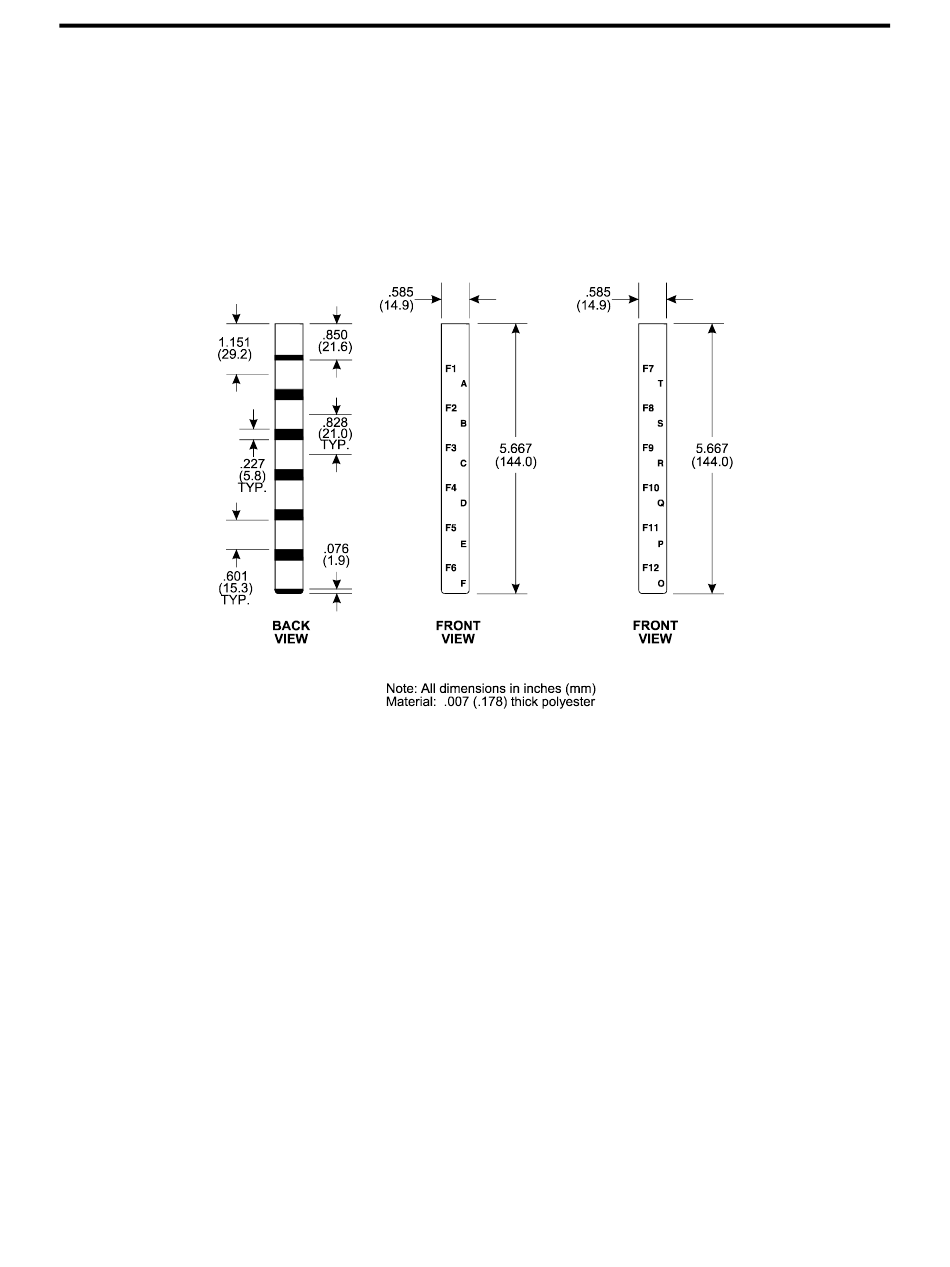

Figure 3-11. 3408KP F1-F12 Insert Dimensions
