3408/3410/3412 Series Industrial PC System Manual
9. System Cutout Dimensions
This section provides system cutout dimensions.
3408T Cutout Dimensions
46

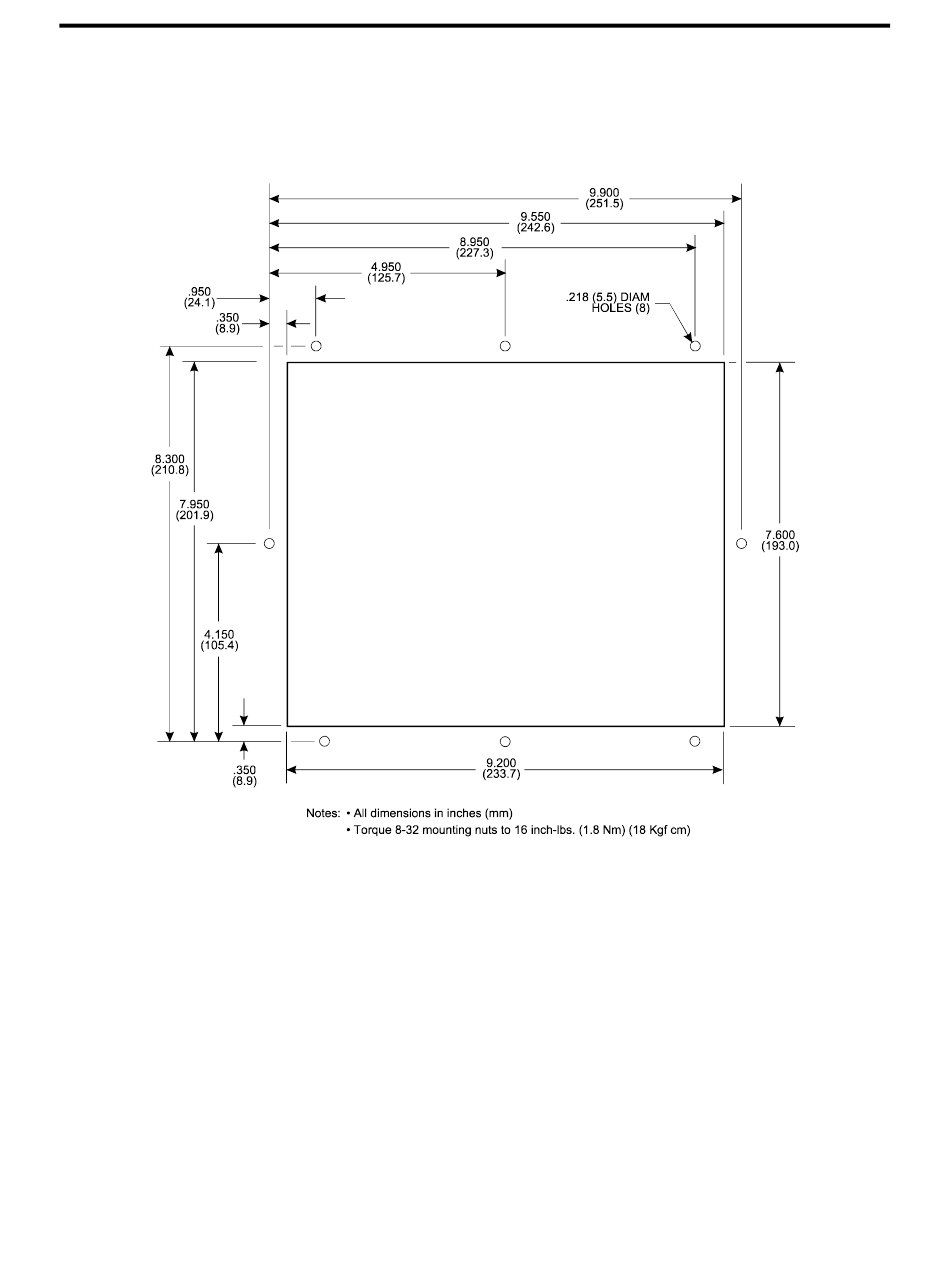

Figure 3-23. 3408T System Cutout Dimensions
