Chapter 1: Introduction
The Zynq-7000 AP SoC Video and Imaging Kit (ZVIK) shown in
ZC702 evaluation kit and includes all of the components of the ZC702 kit with the
addition of components enabling HD video input from an High-Definition Multimedia
Interface (HDMI™) source or from the included HD image sensor. All of the information
presented in this guide related to the ZC702 evaluation kit applies to the ZVIK. For the
most current information on the content provided with the ZVIK, see the
Programmable SoC Video and Imaging Kit product
X-Ref Target - Figure 1-2
This user guide also describes a Base Targeted Reference Design (TRD) based on Zynq-7000
AP SoC architecture. The Base TRD showcases various features and capabilities of the
Zynq Z-7020 AP SoC for the embedded domain in a single package.
TRDs are key components of the Xilinx Targeted Design Platform (TDP) strategy. TDPs from
Xilinx provide customers with basic scalable design platforms for the creation of
FPGA-based solutions in a wide variety of applications and industries.
In the remainder of this document, the Zynq-7000 AP SoC ZC702 evaluation kit is referred to
Note:
as the ZC702 Evaluation Kit and the Zynq-7000 AP SoC Video and Imaging Kit is referred to as ZVIK.

ZC702 Evaluation Kit Contents

The ZC702 evaluation kit includes the following items:
• ZC702 EK-Z7-ZC702-G evaluation board featuring the XC7Z020 CLG484-1
• Agile Mixed Signal (AMS) evaluation board
• Full Vivado design suite
8

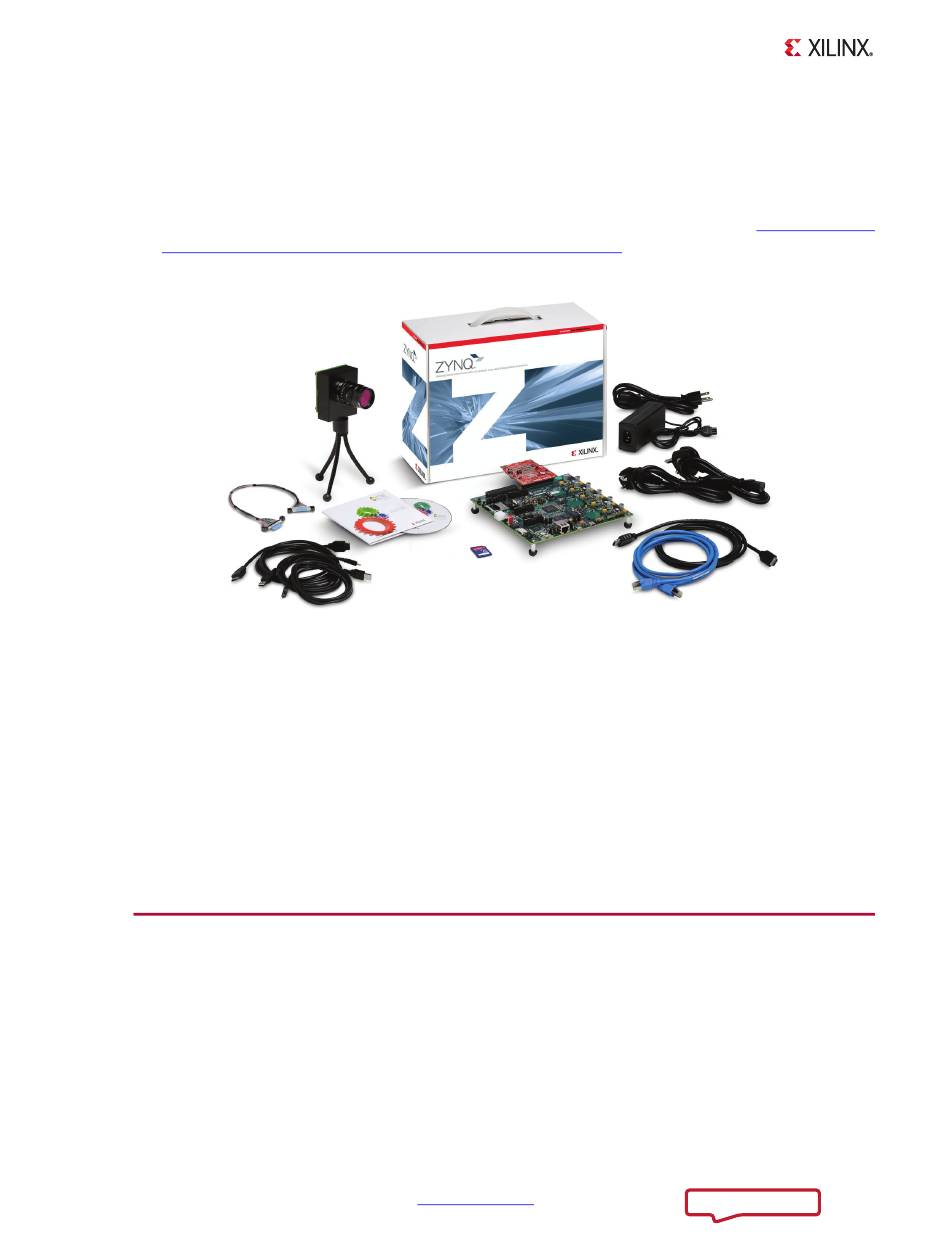

Figure 1-2: Zynq-7000 AP SoC Video and Imaging Kit
www.xilinx.com
Figure 1-2 is based on the
Zynq-7000 All
page.
UG926_c1_02_110512
ZC702 and ZVIK Getting Started Guide
Send Feedback
UG926 (v6.0) December 17, 2013
