Hardware Bring-Up

This section describes the steps for hardware bring-up.
1. Be sure to have the SW16 Mode switch settings set to those shown in
2. With the ZC702 board switched OFF (SW11 in the down position, as shown in
Figure 1-4), plug the USB Mini-B cable into the Mini USB port J17 labeled USB UART on
the ZC702 board and the other end into a open USB port on your PC
X-Ref Target - Figure 2-2
12V Power
3. Connect the power cable.
4. Switch the ZC702 board's power to ON (SW11 switched up as shown in
ZC702 and ZVIK Getting Started Guide
UG926 (v6.0) December 17, 2013

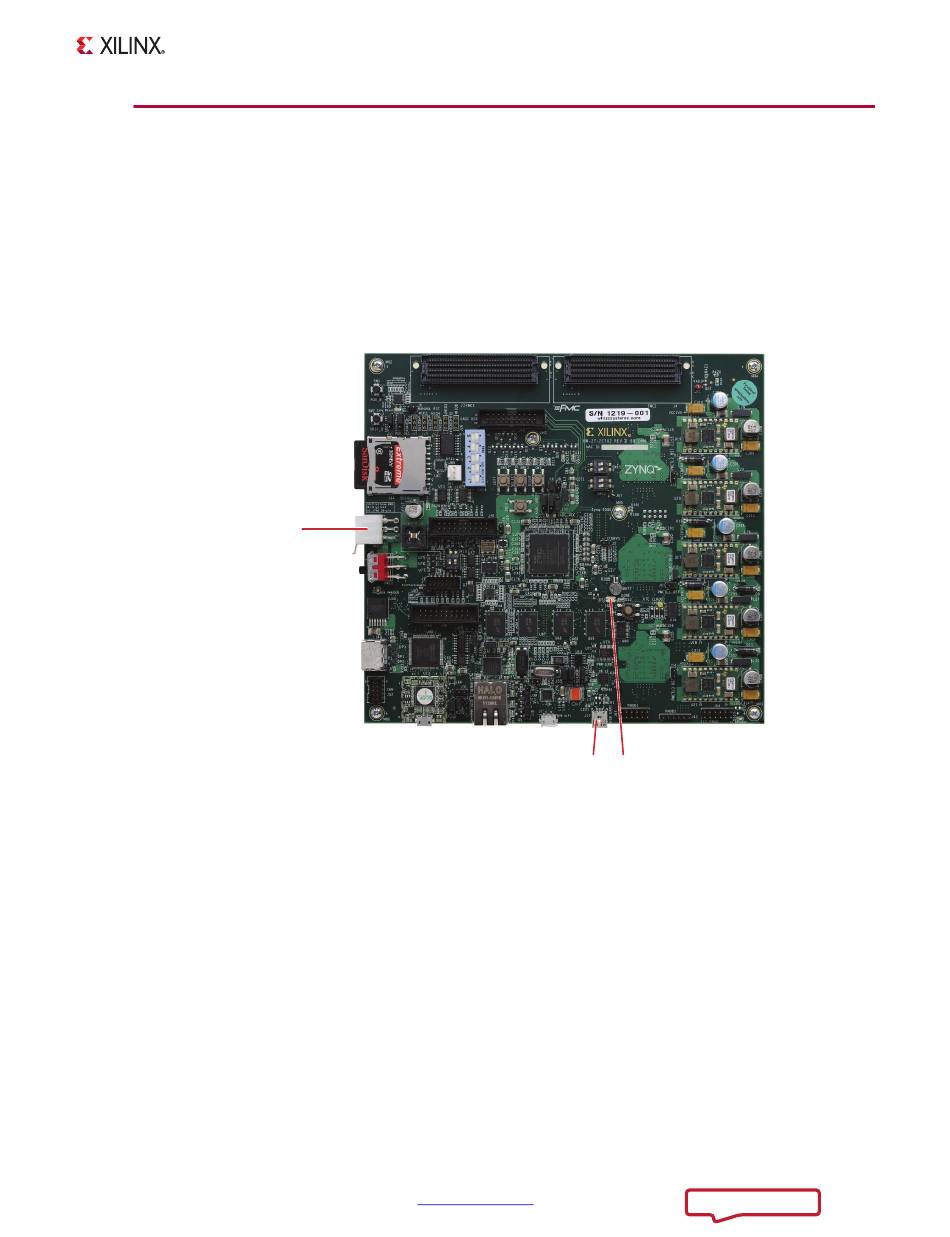

Figure 2-2: ZC702 with the UART and Power Cable Attached
www.xilinx.com
USB/UART Init LED
UG926_c2_02_080212
Send Feedback
Hardware Bring-Up
Figure 2-1.
(Figure 2-2).
Figure 1-4).
