Chapter 2: ZC702 Evaluation Kit Built-In Self-Test

Run the BIST Application

1. Start Tera Term or a comparable installed terminal program. Configure it to have the
following settings:
Baud = 115200, Data = 8, Parity = None, Stop = 1 and Flow = None.
2. Press POR_B (SW1) located in the top left corner of the ZC702 board and view the BIST
output on the terminal window
X-Ref Target - Figure 2-7
3. Select each relevant test and observe the test results.
For more information on the BIST software and additional tutorials, including how to restore
the default content of the onboard Quad SPI flash nonvolatile storage, see the ZC702 BIST
User Guide (ZC702 BIST PDF file, XTP180) on the
documentation
For more detailed information about these BIST tests, see the ZC702 Evaluation Board for
the Zynq-7000 XC7Z020 All Programmable SoC User Guide (UG850)
22
(Figure

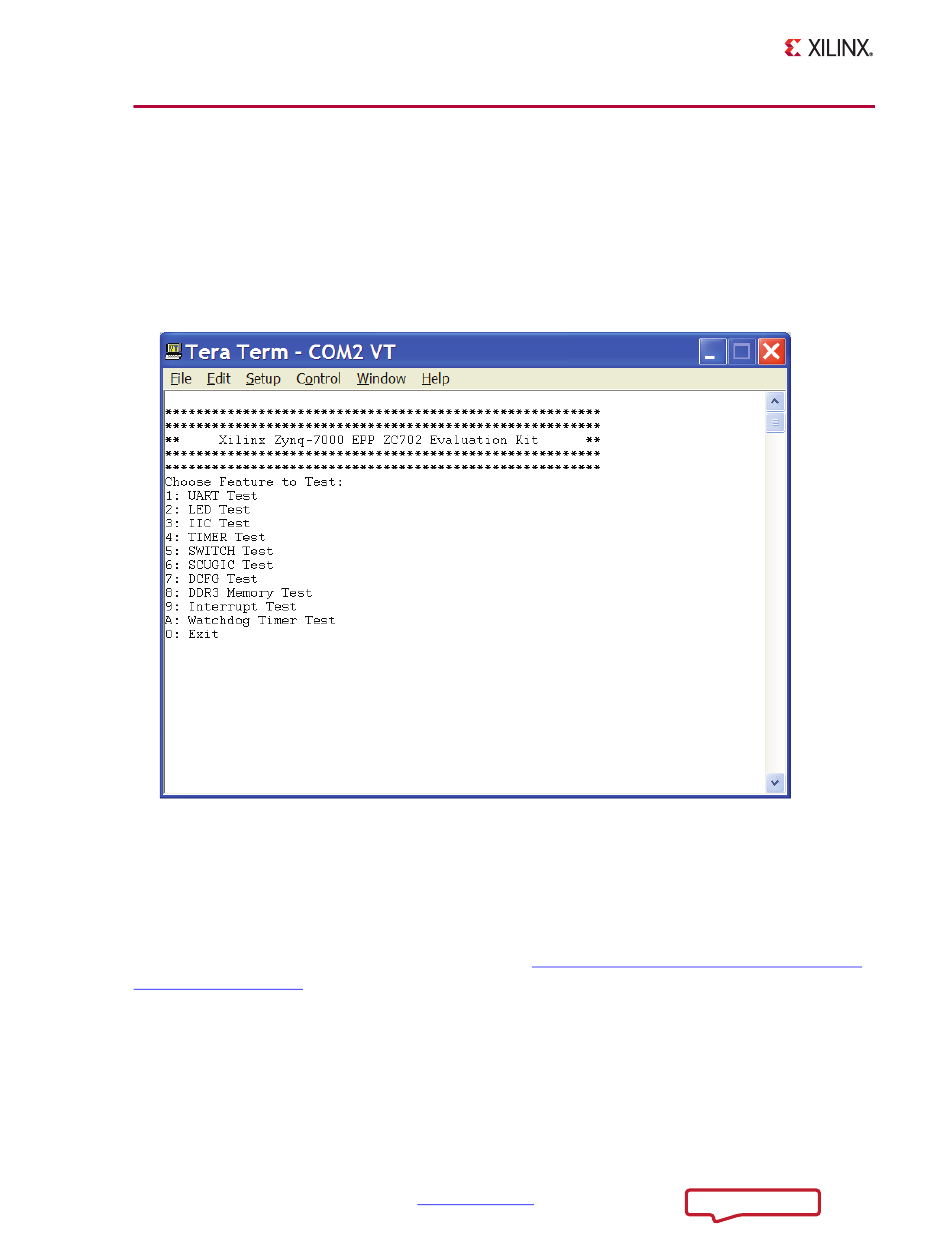

Figure 2-7: BIST Main Menu
page.
www.xilinx.com
2-7).
Zynq-7000 AP SoC ZC702 Evaluation Kit
ZC702 and ZVIK Getting Started Guide
UG926 (v6.0) December 17, 2013
UG926_c2_07_061412
[Ref 4].
