Summary of Contents for Snap-On MODIS Edge
- Page 1 MODIS ™ EDGE G E TT I N G STA RT E D PA C K diagnostics.snapon.com/modisedge...

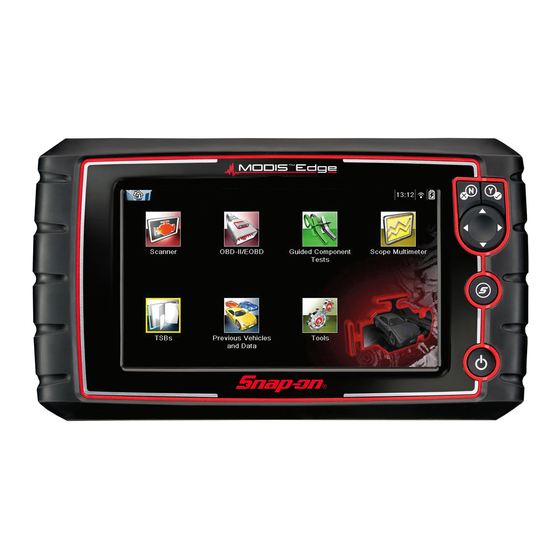

- Page 2 FEATURES Touch No / Cancel Yes / Accept Screen Button Button Directional Buttons Shortcut (S) Button Default Setting: Save Screen Image To change this setting navigate to - Tools > Configure Shortcut Key Power (On/Off) Button Scope/Multimeter Jacks Battery Status Mini USB Indicator LED microSD Card...
- Page 3 GETTING STARTED 1. Position the battery pack (as shown) This side up. with the arrows facing up. Tilt the top of the battery in to align the tabs, then down to install. 2. Install the battery pack cover, (in the same manner as above) aligning the tabs and screws.
- Page 4 Scanner with Retrieve and clear diagnostic trouble codes (DTCs), view parameter (PID) data, perform functional component tests, and adaptive relearns. Scanning (Basics) / Demonstration Mode Scanning 1. Select Scanner from the Home screen. 2. Identify the vehicle, or to become familiar with the Scanner without connecting to a vehicle, select Demonstration from the menu to navigate through a simulated vehicle identification process, and explore the capabilities of the tool.
-
Page 5: Guided Component Tests
Guided Component Tests Perform vehicle specific component tests, using guided instructions to help you verify component integrity and validate repairs. Vehicle information may include: • Diagnostic references • Component testing instructions and locations • Waveform examples • Illustrated connectors with pinouts Extras The Extras icon is located on the Guided Component Tests Home screen, and... -
Page 6: Previous Vehicles And Data
Scope / Multimeter (2-Channel) Measure waveforms, test circuits and components using the built-in lab scope, graphing multimeter (GMM), or digital multimeter (DMM). Pre-configured tests include these and more! • Volts DC • Low Amps (20,40 and 60) • Volts AC RMS •... -
Page 7: Control Icons
Select which parameters to display. View OEM service interval reset instructions. Sort (Scanner) Change the listed parameter order. Kit Contents (and Accessories/Extras) The following are included with your MODIS Edge kit: Contact your Snap-on representative about accessories and extras, including these and more! -
Page 8: Data Cable
Print Data Files, Vehicle System Reports, and Download Software Updates using... ShopStream Connect (SSC) is a companion PC application available at no cost that gives you the ability to connect your diagnostic tool to your PC. 1. Get started by downloading and installing the SSC application onto your PC. Download SSC from: diagnostics.snapon.com/ssc 2. - Page 9 Software Subscription Program Snap-on is continually enhancing our diagnostic software to provide our customers with the latest information available, not only for new vehicles but for older vehicles as well. As revisions become available, we offer them in each new software release.
- Page 10 Visit diagnostics.snapon.com/trainingsolutions Snap-on is a trademark, registered in the United States and other countries, of Snap-on Incorporated. All other marks are trademarks or registered trademarks of their respective holders. ©2018 Snap-on Incorporated. All pictures and illustrations shown are for reference purposes only. All information including specifications herein are subject to change without notice.
