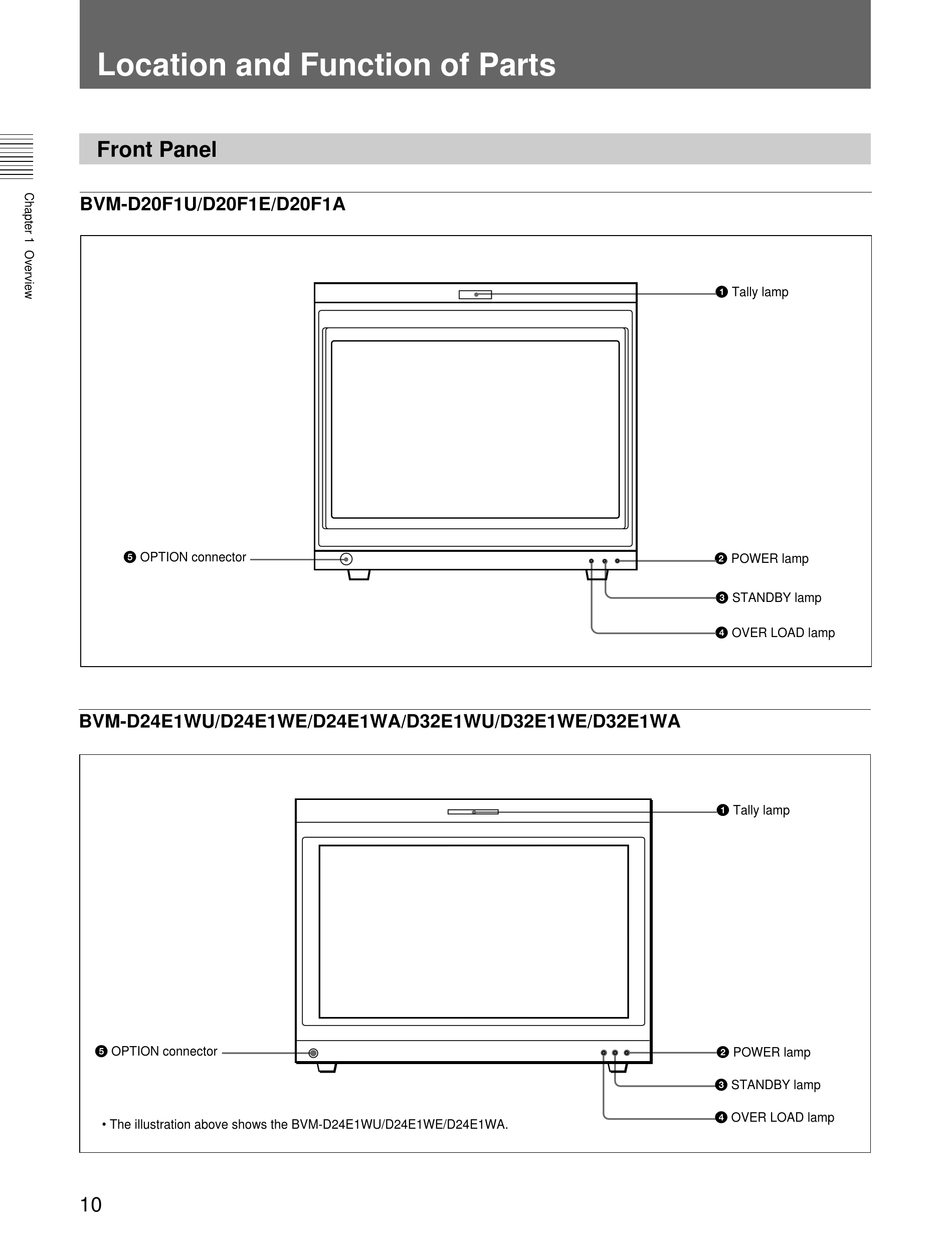

Location and Function of Parts
Front Panel
BVM-D20F1U/D20F1E/D20F1A
5 OPTION connector
BVM-D24E1WU/D24E1WE/D24E1WA/D32E1WU/D32E1WE/D32E1WA
5 OPTION connector
• The illustration above shows the BVM-D24E1WU/D24E1WE/D24E1WA.
10
1 Tally lamp
2 POWER lamp
3 STANDBY lamp
4 OVER LOAD lamp
1 Tally lamp
2 POWER lamp
3 STANDBY lamp
4 OVER LOAD lamp
