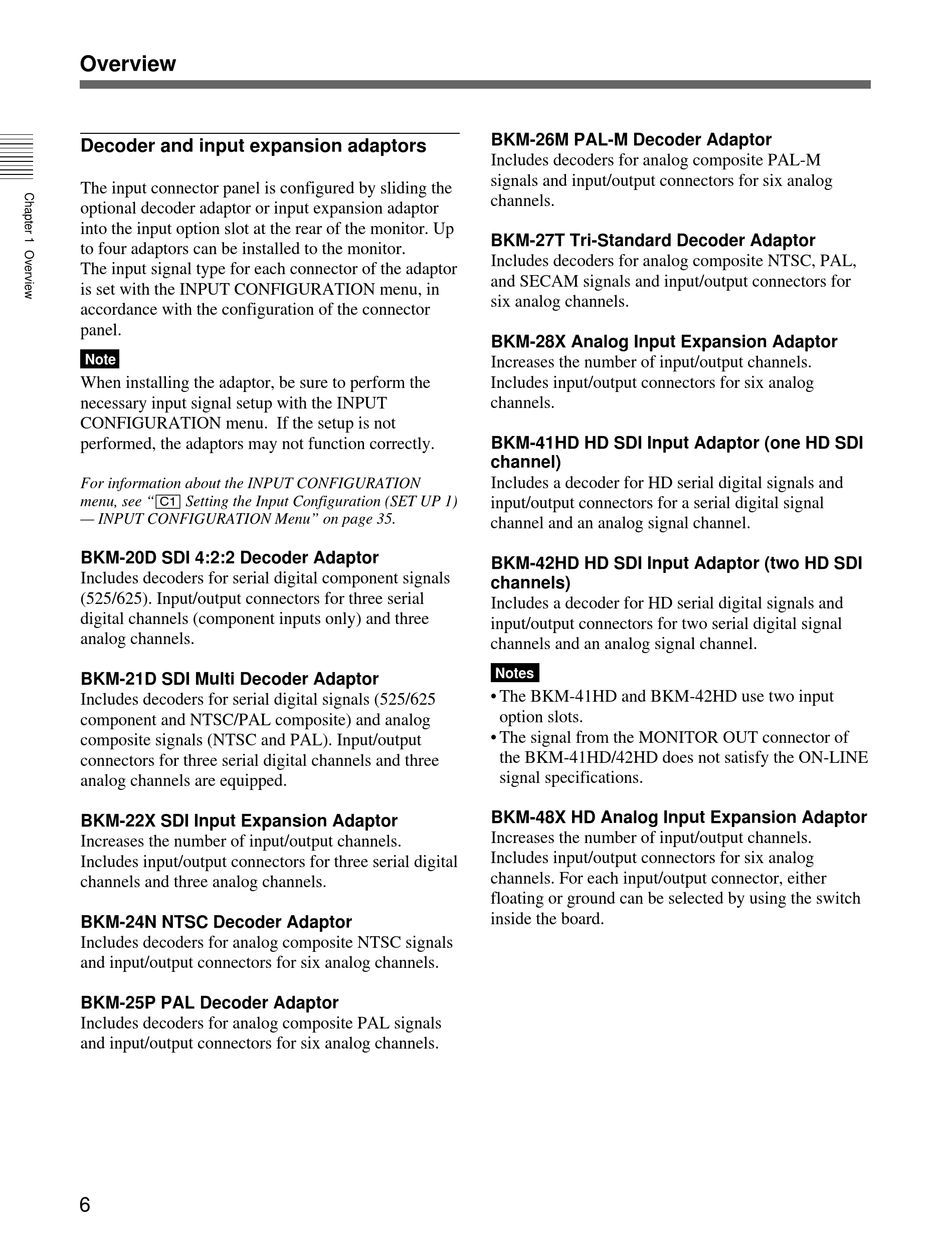

Overview
Decoder and input expansion adaptors
The input connector panel is configured by sliding the
optional decoder adaptor or input expansion adaptor
into the input option slot at the rear of the monitor. Up
to four adaptors can be installed to the monitor.
The input signal type for each connector of the adaptor
is set with the INPUT CONFIGURATION menu, in
accordance with the configuration of the connector
panel.
Note
When installing the adaptor, be sure to perform the
necessary input signal setup with the INPUT
CONFIGURATION menu. If the setup is not
performed, the adaptors may not function correctly.
For information about the INPUT CONFIGURATION
menu, see "[C1] Setting the Input Configuration (SET UP 1)
— INPUT CONFIGURATION Menu" on page 35.
BKM-20D SDI 4:2:2 Decoder Adaptor
Includes decoders for serial digital component signals
(525/625). Input/output connectors for three serial
digital channels (component inputs only) and three
analog channels.
BKM-21D SDI Multi Decoder Adaptor
Includes decoders for serial digital signals (525/625
component and NTSC/PAL composite) and analog
composite signals (NTSC and PAL). Input/output
connectors for three serial digital channels and three
analog channels are equipped.
BKM-22X SDI Input Expansion Adaptor
Increases the number of input/output channels.
Includes input/output connectors for three serial digital
channels and three analog channels.
BKM-24N NTSC Decoder Adaptor
Includes decoders for analog composite NTSC signals
and input/output connectors for six analog channels.
BKM-25P PAL Decoder Adaptor
Includes decoders for analog composite PAL signals
and input/output connectors for six analog channels.
6
BKM-26M PAL-M Decoder Adaptor
Includes decoders for analog composite PAL-M
signals and input/output connectors for six analog
channels.
BKM-27T Tri-Standard Decoder Adaptor
Includes decoders for analog composite NTSC, PAL,
and SECAM signals and input/output connectors for
six analog channels.
BKM-28X Analog Input Expansion Adaptor
Increases the number of input/output channels.
Includes input/output connectors for six analog
channels.
BKM-41HD HD SDI Input Adaptor (one HD SDI
channel)
Includes a decoder for HD serial digital signals and
input/output connectors for a serial digital signal
channel and an analog signal channel.
BKM-42HD HD SDI Input Adaptor (two HD SDI
channels)
Includes a decoder for HD serial digital signals and
input/output connectors for two serial digital signal
channels and an analog signal channel.
Notes
• The BKM-41HD and BKM-42HD use two input
option slots.
• The signal from the MONITOR OUT connector of
the BKM-41HD/42HD does not satisfy the ON-LINE
signal specifications.
BKM-48X HD Analog Input Expansion Adaptor
Increases the number of input/output channels.
Includes input/output connectors for six analog
channels. For each input/output connector, either
floating or ground can be selected by using the switch
inside the board.
