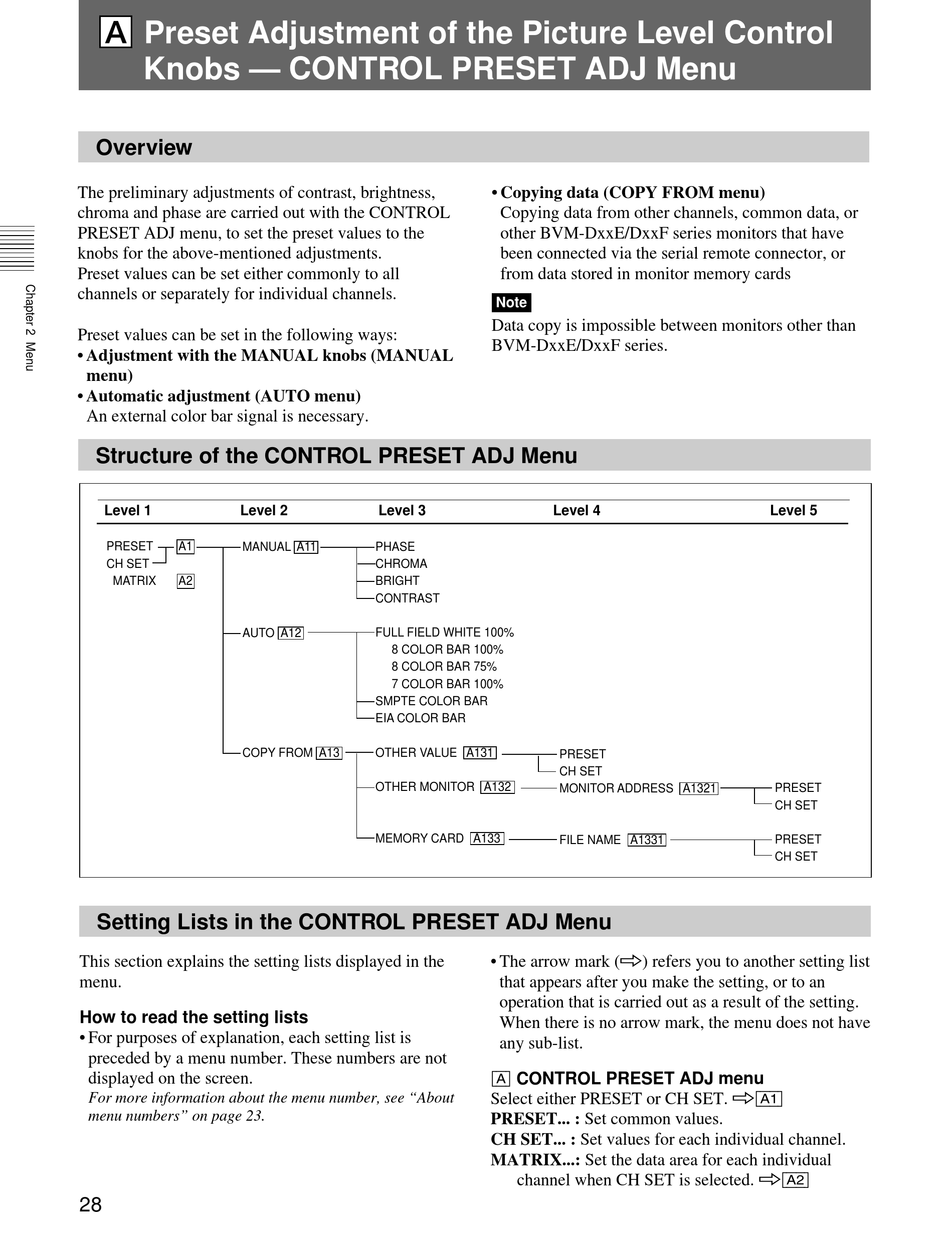

Preset Adjustment of the Picture Level Control
Knobs — CONTROL PRESET ADJ Menu

Overview

The preliminary adjustments of contrast, brightness,
chroma and phase are carried out with the CONTROL
PRESET ADJ menu, to set the preset values to the
knobs for the above-mentioned adjustments.
Preset values can be set either commonly to all
channels or separately for individual channels.
Preset values can be set in the following ways:
• Adjustment with the MANUAL knobs (MANUAL
menu)
• Automatic adjustment (AUTO menu)
An external color bar signal is necessary.

Structure of the CONTROL PRESET ADJ Menu

Level 1
Level 2
PRESET
A1
MANUAL A11
CH SET
MATRIX
A2
AUTO A12
COPY FROM A13

Setting Lists in the CONTROL PRESET ADJ Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
For more information about the menu number, see "About
menu numbers" on page 23.
28
• Copying data (COPY FROM menu)
Copying data from other channels, common data, or
other BVM-DxxE/DxxF series monitors that have
been connected via the serial remote connector, or
from data stored in monitor memory cards
Note
Data copy is impossible between monitors other than
BVM-DxxE/DxxF series.
Level 3
Level 4
PHASE
CHROMA
BRIGHT
CONTRAST
FULL FIELD WHITE 100%
8 COLOR BAR 100%
8 COLOR BAR 75%
7 COLOR BAR 100%
SMPTE COLOR BAR
EIA COLOR BAR
OTHER VALUE A131
OTHER MONITOR A132
MEMORY CARD A133
• The arrow mark (÷) refers you to another setting list
that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not have
any sub-list.
[A] CONTROL PRESET ADJ menu
Select either PRESET or CH SET. ÷[A1]
PRESET... : Set common values.
CH SET... : Set values for each individual channel.
MATRIX...: Set the data area for each individual
channel when CH SET is selected. ÷[A2]
PRESET
CH SET
MONITOR ADDRESS A1321
FILE NAME A1331
Level 5
PRESET
CH SET
PRESET
CH SET
