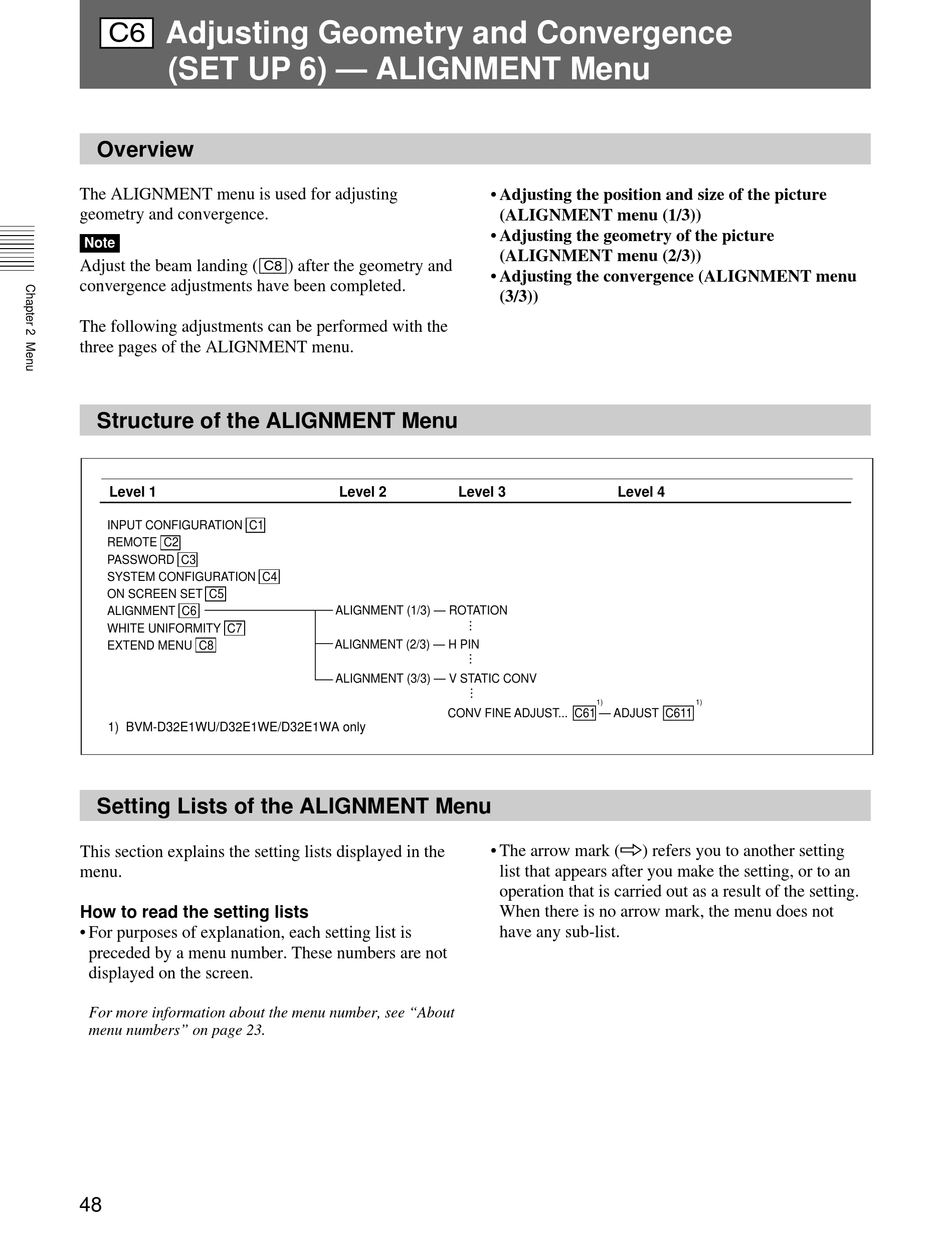

[C6]
Adjusting Geometry and Convergence
(SET UP 6) — ALIGNMENT Menu

Overview

The ALIGNMENT menu is used for adjusting
geometry and convergence.
Note
Adjust the beam landing ([C8]) after the geometry and
convergence adjustments have been completed.
The following adjustments can be performed with the
three pages of the ALIGNMENT menu.

Structure of the ALIGNMENT Menu

Level 1
INPUT CONFIGURATION C1
REMOTE C2
PASSWORD C3
SYSTEM CONFIGURATION C4
ON SCREEN SET C5
ALIGNMENT C6
WHITE UNIFORMITY C7
EXTEND MENU C8
1) BVM-D32E1WU/D32E1WE/D32E1WA only

Setting Lists of the ALIGNMENT Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
For more information about the menu number, see "About
menu numbers" on page 23.
48
• Adjusting the position and size of the picture
(ALIGNMENT menu (1/3))
• Adjusting the geometry of the picture
(ALIGNMENT menu (2/3))
• Adjusting the convergence (ALIGNMENT menu
(3/3))
Level 2
Level 3
ALIGNMENT (1/3) — ROTATION
ALIGNMENT (2/3) — H PIN
ALIGNMENT (3/3) — V STATIC CONV
CONV FINE ADJUST... C61 — ADJUST C611
• The arrow mark (÷) refers you to another setting
list that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not
have any sub-list.
Level 4
1)
1)
