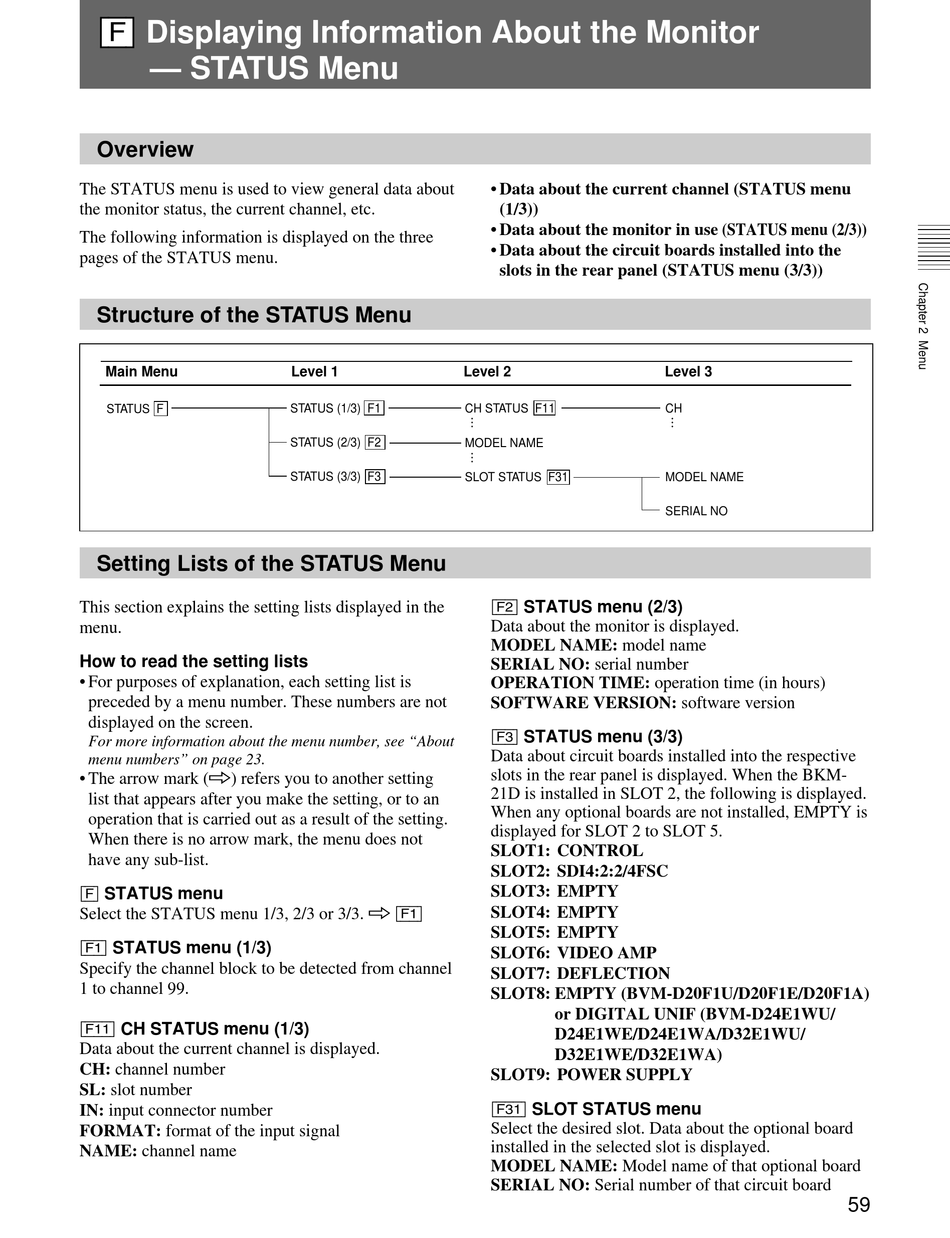

Displaying Information About the Monitor
— STATUS Menu

Overview

The STATUS menu is used to view general data about
the monitor status, the current channel, etc.
The following information is displayed on the three
pages of the STATUS menu.

Structure of the STATUS Menu

Main Menu
STATUS F

Setting Lists of the STATUS Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
For more information about the menu number, see "About
menu numbers" on page 23.
• The arrow mark (÷) refers you to another setting
list that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not
have any sub-list.
[F] STATUS menu
Select the STATUS menu 1/3, 2/3 or 3/3. ÷ [F1]
[F1] STATUS menu (1/3)
Specify the channel block to be detected from channel
1 to channel 99.
[F11] CH STATUS menu (1/3)
Data about the current channel is displayed.
CH: channel number
SL: slot number
IN: input connector number
FORMAT: format of the input signal
NAME: channel name
Level 1
Level 2
STATUS (1/3) F1
CH STATUS F11
STATUS (2/3) F2
MODEL NAME
STATUS (3/3) F3
SLOT STATUS F31
• Data about the current channel (STATUS menu
(1/3))
• Data about the monitor in use (STATUS menu (2/3))
• Data about the circuit boards installed into the
slots in the rear panel (STATUS menu (3/3))
Level 3
CH
MODEL NAME
SERIAL NO
[F2] STATUS menu (2/3)
Data about the monitor is displayed.
MODEL NAME: model name
SERIAL NO: serial number
OPERATION TIME: operation time (in hours)
SOFTWARE VERSION: software version
[F3] STATUS menu (3/3)
Data about circuit boards installed into the respective
slots in the rear panel is displayed. When the BKM-
21D is installed in SLOT 2, the following is displayed.
When any optional boards are not installed, EMPTY is
displayed for SLOT 2 to SLOT 5.
SLOT1: CONTROL
SLOT2: SDI4:2:2/4FSC
SLOT3: EMPTY
SLOT4: EMPTY
SLOT5: EMPTY
SLOT6: VIDEO AMP
SLOT7: DEFLECTION
SLOT8: EMPTY (BVM-D20F1U/D20F1E/D20F1A)
or DIGITAL UNIF (BVM-D24E1WU/
D24E1WE/D24E1WA/D32E1WU/
D32E1WE/D32E1WA)
SLOT9: POWER SUPPLY
[F31] SLOT STATUS menu
Select the desired slot. Data about the optional board
installed in the selected slot is displayed.
MODEL NAME: Model name of that optional board
SERIAL NO: Serial number of that circuit board
59
