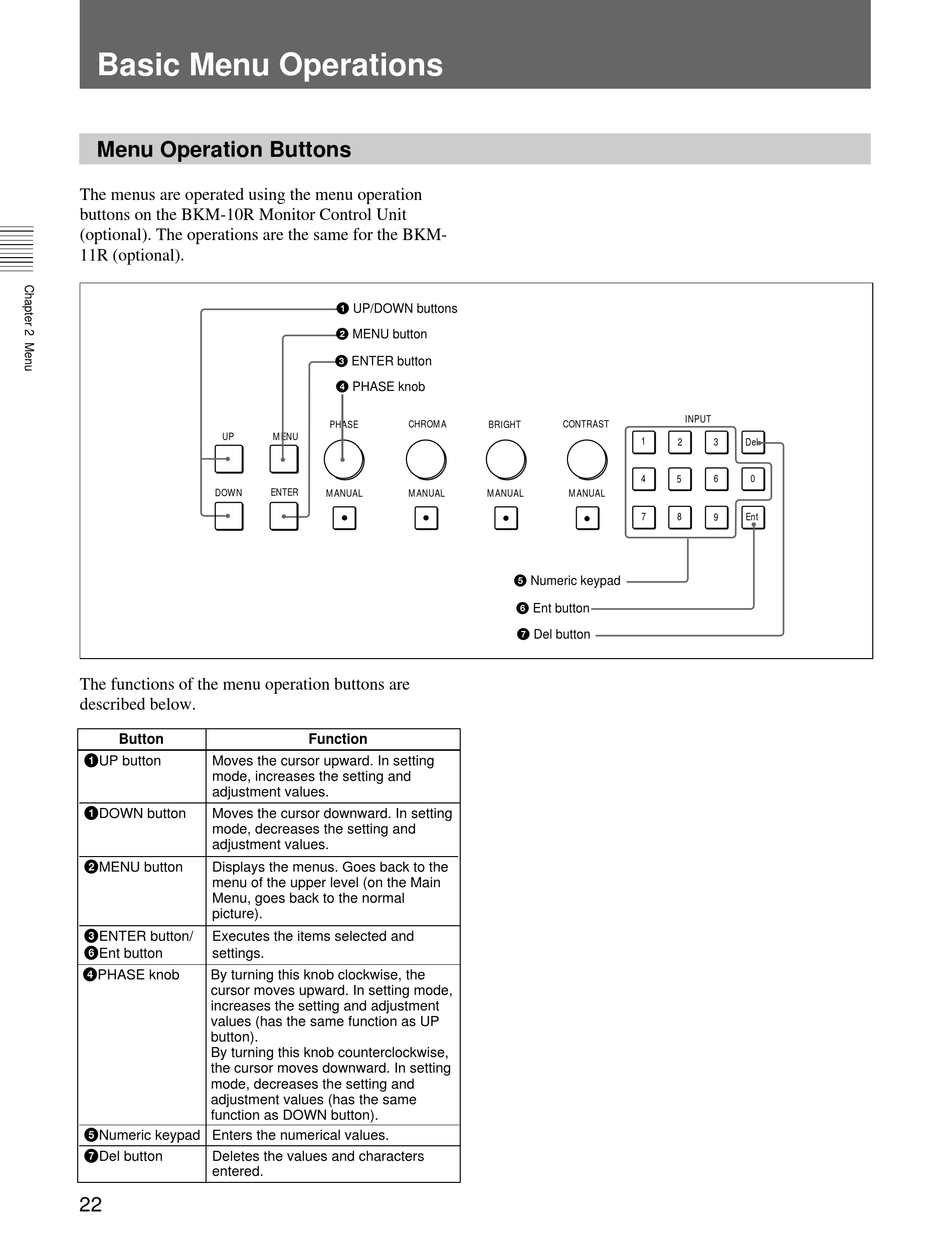

Basic Menu Operations

Menu Operation Buttons

The menus are operated using the menu operation
buttons on the BKM-10R Monitor Control Unit
(optional). The operations are the same for the BKM-
11R (optional).
UP
DOWN
The functions of the menu operation buttons are
described below.
Button
1UP button
Moves the cursor upward. In setting
mode, increases the setting and
adjustment values.
1DOWN button
Moves the cursor downward. In setting
mode, decreases the setting and
adjustment values.
2MENU button
Displays the menus. Goes back to the
menu of the upper level (on the Main
Menu, goes back to the normal
picture).
3ENTER button/
Executes the items selected and
6Ent button
settings.
4PHASE knob
By turning this knob clockwise, the
cursor moves upward. In setting mode,
increases the setting and adjustment
values (has the same function as UP
button).
By turning this knob counterclockwise,
the cursor moves downward. In setting
mode, decreases the setting and
adjustment values (has the same
function as DOWN button).
5Numeric keypad Enters the numerical values.
7Del button
Deletes the values and characters
entered.
22
1 UP/DOWN buttons
2 MENU button
3 ENTER button
4 PHASE knob
CHROMA
PHASE
MENU
ENTER
MANUAL
MANUAL
Function
BRIGHT
CONTRAST
1
4
MANUAL
MANUAL
7
5 Numeric keypad
6 Ent button
7 Del button
INPUT
2
3
Del
0
5
6
Ent
8
9
