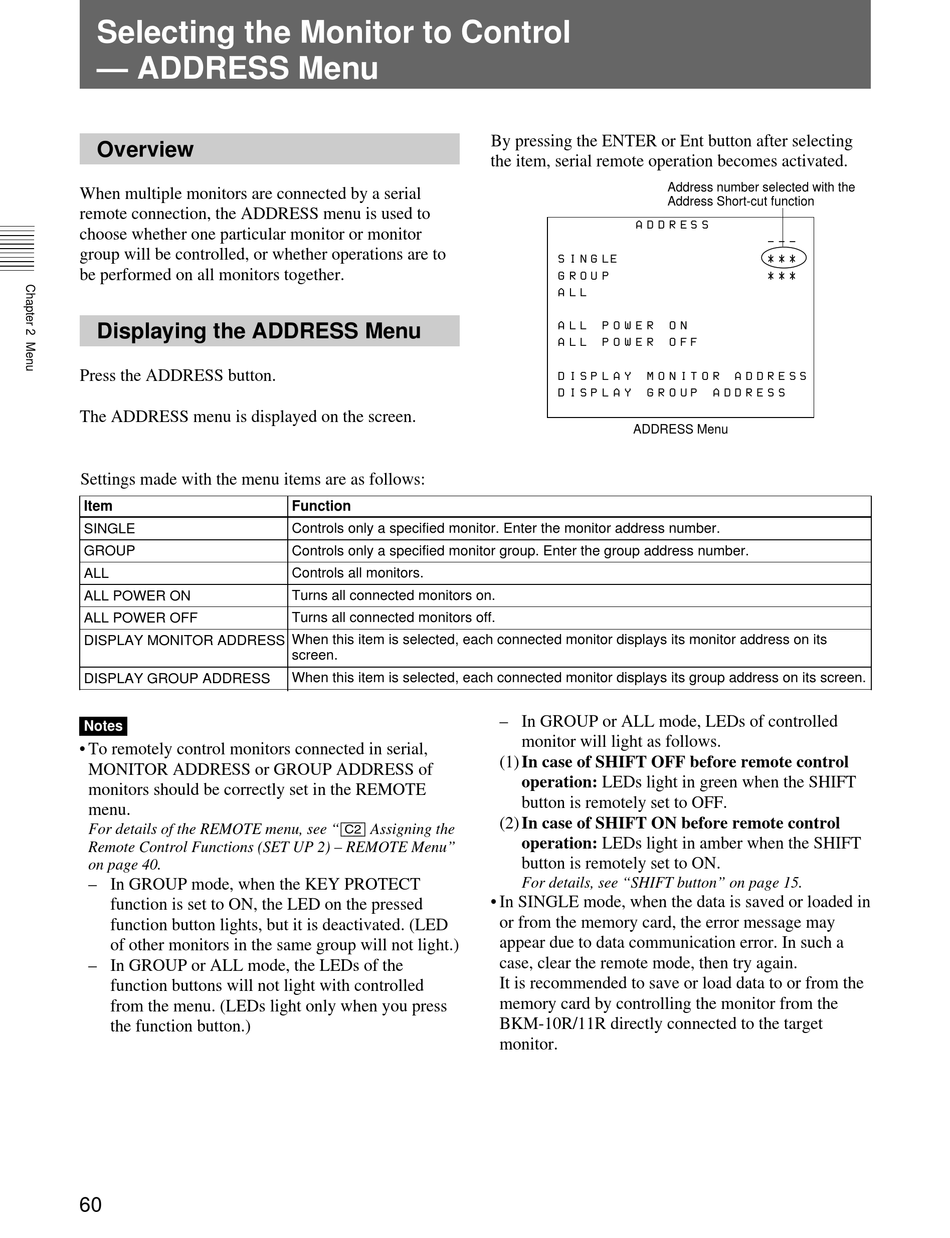

Selecting the Monitor to Control
— ADDRESS Menu

Overview

When multiple monitors are connected by a serial
remote connection, the ADDRESS menu is used to
choose whether one particular monitor or monitor
group will be controlled, or whether operations are to
be performed on all monitors together.

Displaying the ADDRESS Menu

Press the ADDRESS button.
The ADDRESS menu is displayed on the screen.
Settings made with the menu items are as follows:
Item
SINGLE
GROUP
ALL
ALL POWER ON
ALL POWER OFF
DISPLAY MONITOR ADDRESS
DISPLAY GROUP ADDRESS
Notes
• To remotely control monitors connected in serial,
MONITOR ADDRESS or GROUP ADDRESS of
monitors should be correctly set in the REMOTE
menu.
For details of the REMOTE menu, see "[C2] Assigning the
Remote Control Functions (SET UP 2) – REMOTE Menu"
on page 40.
– In GROUP mode, when the KEY PROTECT
function is set to ON, the LED on the pressed
function button lights, but it is deactivated. (LED
of other monitors in the same group will not light.)
– In GROUP or ALL mode, the LEDs of the
function buttons will not light with controlled
from the menu. (LEDs light only when you press
the function button.)
60
Function
Controls only a specified monitor. Enter the monitor address number.
Controls only a specified monitor group. Enter the group address number.
Controls all monitors.
Turns all connected monitors on.
Turns all connected monitors off.
When this item is selected, each connected monitor displays its monitor address on its
screen.
When this item is selected, each connected monitor displays its group address on its screen.
By pressing the ENTER or Ent button after selecting
the item, serial remote operation becomes activated.
Address number selected with the
Address Short-cut function
A D D R E S S
S I N G L E
G R O U P
A L L
A L L
P O W E R
O N
A L L
P O W E R
O F F
D I S P L A Y
M O N I T O R
D I S P L A Y
G R O U P
ADDRESS Menu
– In GROUP or ALL mode, LEDs of controlled
monitor will light as follows.
(1) In case of SHIFT OFF before remote control
operation: LEDs light in green when the SHIFT
button is remotely set to OFF.
(2) In case of SHIFT ON before remote control
operation: LEDs light in amber when the SHIFT
button is remotely set to ON.
For details, see "SHIFT button" on page 15.
• In SINGLE mode, when the data is saved or loaded in
or from the memory card, the error message may
appear due to data communication error. In such a
case, clear the remote mode, then try again.
It is recommended to save or load data to or from the
memory card by controlling the monitor from the
BKM-10R/11R directly connected to the target
monitor.
- - -
* * *
* * *
A D D R E S S
A D D R E S S
