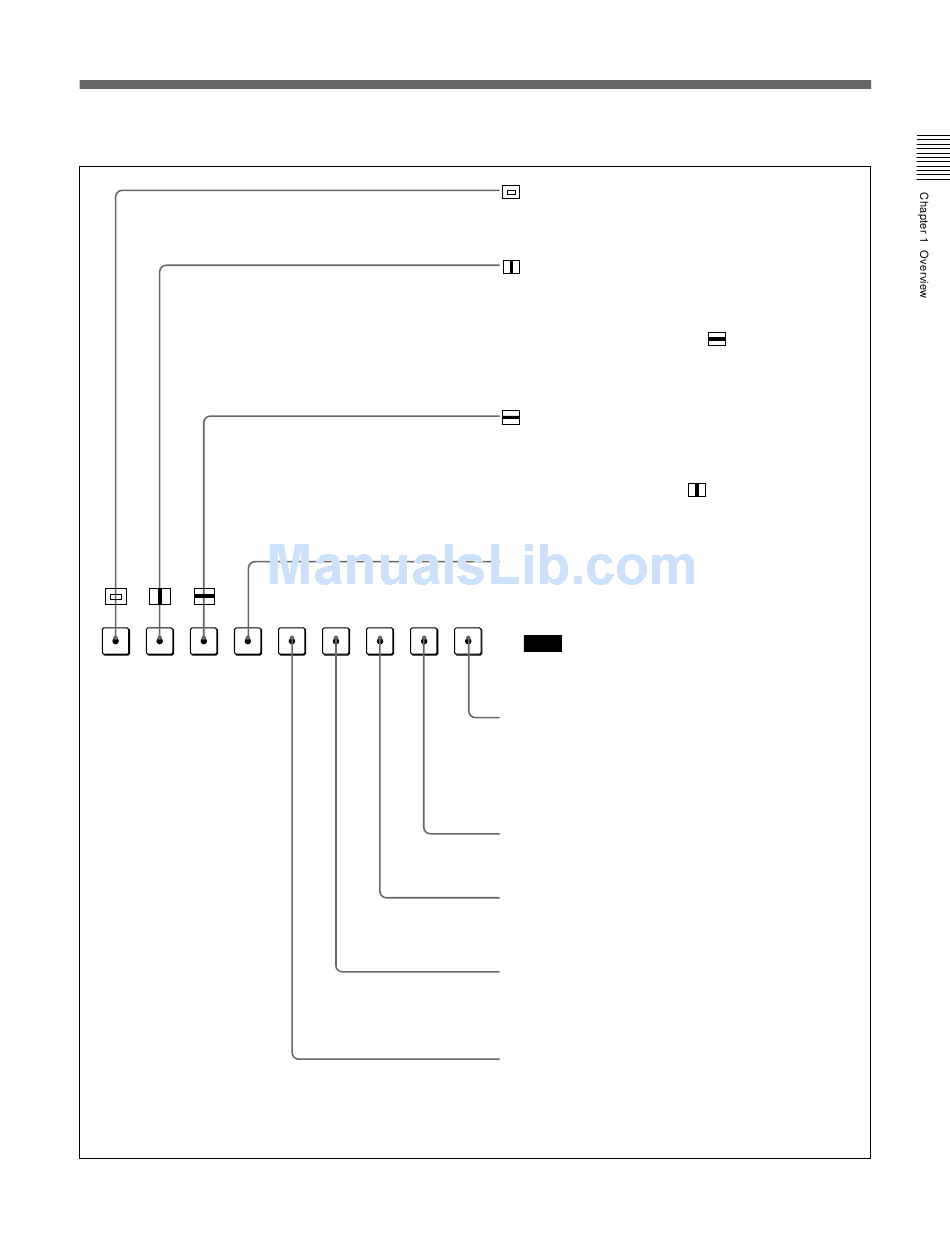

Function buttons in SHIFT OFF mode (LEDs of function buttons in green)
MONO
BLUE
16 : 9
SYNC
R
ONLY
APT
COMB
F1
F2
ADDRESS
SAFE
G
B
F3
F4
AREA
(Underscan) button: When this button is pushed in (ON),
the picture is underscanned by 3%, and four ends of the
raster is displayed on the screen.
(H delay) button: When this button is pushed in (ON), the
picture moves horizontally, and a horizontal sync signal
3
appears approximately
/
in the left edge of the screen.
8
• The brightness of the picture increases automatically, and it
makes it easy to check the sync part.
• If it is pressed together with the
picture is displayed.
(V delay) button: When this button is pushed in (ON), the
picture moves vertically, and a vertical sync signal appears
approximately in the center of the screen.
• The brightness of the picture increases automatically, and it
makes it easy to check the sync part.
• If it is pressed together with
picture is displayed.
MONO button: When this button is pushed in (ON), a
monochrome picture is displayed. When the buttons is off,
the monitor switches automatically between color and
monochrome mode, depending on the presence or absence
of color burst signal.
Note
The MONO button does not function with the GBR signal
input.
ADDRESS button: When this button is pushed in (ON), the
ADDRESS menu appears on the screen. By using the
ADDRESS menu, operation conditions for multiple monitors
are set.
For more information about the ADDRESS menu, see
"Selecting the Monitor to Control — ADDRESS Menu" on
page 60.
F2 button: When this button is pushed in (ON), you can access
directly the MANUAL menu of the level 2 of the COLOR TEMP
ADJ menu, if the short-cut function is assigned to this button.
F1 button: When this button is pushed in (ON), the characters
disappear from the monitor on the MANUAL menu of some
menus.
COMB button: Turn the comb filter on and off.
This function is available when an optional decoder adaptor such
as a BKM-24N is installed. (For NTSC, PAL and PAL-M only)
APT (aperture) button: When this button is pushed in (ON), the
frequency response can be modified. The degree of
modification is set with the menu.
For information about the aperture modification frequency for
each signal format, see "Aperture modification frequency for
each signal format" on page 19.
button, a pulse cross
button, a pulse cross
17
