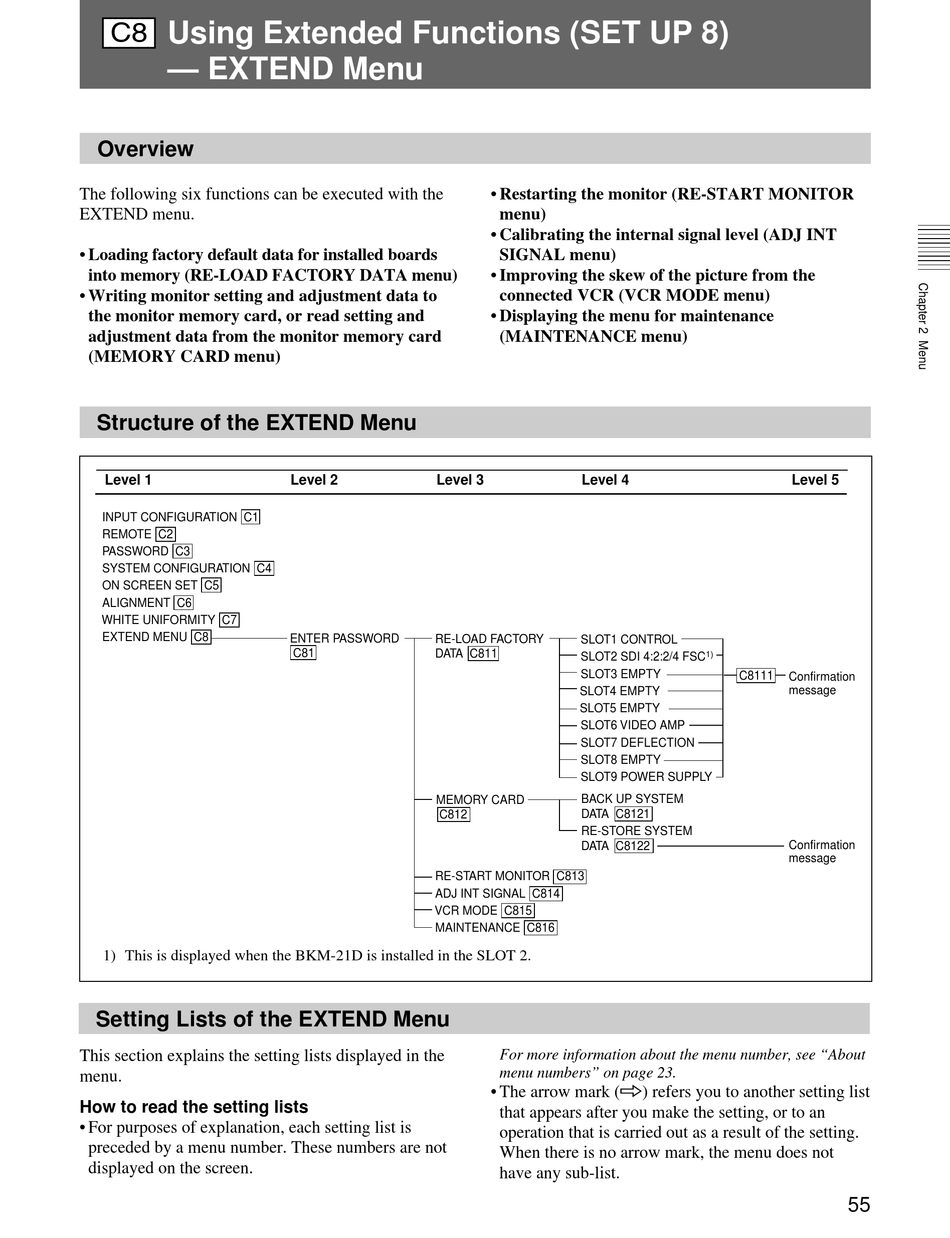

[C8]
Using Extended Functions (SET UP 8)
— EXTEND Menu

Overview

The following six functions can be executed with the
EXTEND menu.
• Loading factory default data for installed boards
into memory (RE-LOAD FACTORY DATA menu)
• Writing monitor setting and adjustment data to
the monitor memory card, or read setting and
adjustment data from the monitor memory card
(MEMORY CARD menu)

Structure of the EXTEND Menu

Level 1
INPUT CONFIGURATION C1
REMOTE C2
PASSWORD C3
SYSTEM CONFIGURATION C4
ON SCREEN SET C5
ALIGNMENT C6
WHITE UNIFORMITY C7
EXTEND MENU C8
1) This is displayed when the BKM-21D is installed in the SLOT 2.

Setting Lists of the EXTEND Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
Level 2
Level 3
ENTER PASSWORD
RE-LOAD FACTORY
C81
DATA C811
MEMORY CARD
C812
RE-START MONITOR C813
ADJ INT SIGNAL C814
VCR MODE C815
MAINTENANCE C816
• Restarting the monitor (RE-START MONITOR
menu)
• Calibrating the internal signal level (ADJ INT
SIGNAL menu)
• Improving the skew of the picture from the
connected VCR (VCR MODE menu)
• Displaying the menu for maintenance
(MAINTENANCE menu)
Level 4
SLOT1 CONTROL
SLOT2 SDI 4:2:2/4 FSC
SLOT3 EMPTY
SLOT4 EMPTY
SLOT5 EMPTY
SLOT6 VIDEO AMP
SLOT7 DEFLECTION
SLOT8 EMPTY
SLOT9 POWER SUPPLY
BACK UP SYSTEM
DATA C8121
RE-STORE SYSTEM
DATA C8122
For more information about the menu number, see "About
menu numbers" on page 23.
• The arrow mark (÷) refers you to another setting list
that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not
have any sub-list.
Level 5
1)
C8111
Confirmation
message
Confirmation
message
55
