[C2]
Assigning the Remote Control Functions
(SET UP 2) — REMOTE Menu

Overview

The remote control functions are set with the
REMOTE menu. With this monitor, both serial remote
control (REMOTE 1) and parallel remote control
(REMOTE 2) are possible.
The following settings can be made with the REMOTE
menu.
• Settings for the serial remote control (REMOTE
1) (REMOTE 1 CONFIG menu)
An address number (MONITOR ADDRESS) and
group number (GROUP ADDRESS) can be assigned
to the monitor connected to the serial REMOTE 1
connector.
The BVM-xxE/F/G, BVM-Dxx and HDM-xxE series
monitors can be connected.
• Settings for the parallel remote control (REMOTE
2) (REMOTE 2 CONFIG menu)
Functions can be assigned to the pins of the
REMOTE 2 connector.
• ON/OFF setting for the parallel remote control
(REMOTE 2) (REMOTE 2 menu)
Priority order of the remote control functions
It is possible to simultaneously use the BKM-10R/11R
Monitor Control Unit, REMOTE 1, and REMOTE 2
for control, but commands from REMOTE 2 have
priority. Therefore, it is impossible for the BKM-10R/
11R or REMOTE 1 to change items set by REMOTE 2.
There is no priority order between commands from
REMOTE 1 and the BKM-10R/11R control panel.

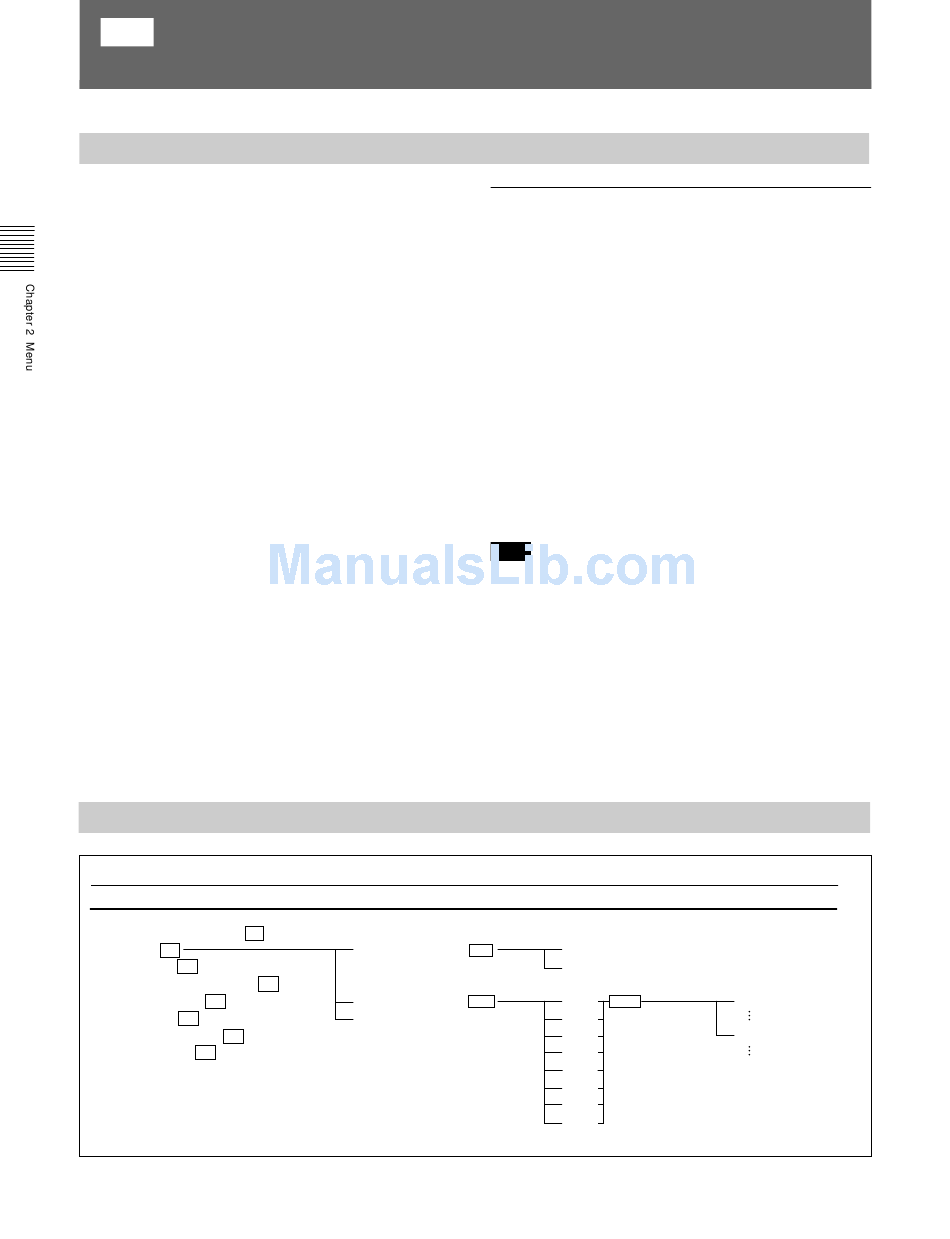

Structure of the REMOTE Menu

Level 1
INPUT CONFIGURATION C1
REMOTE C2
PASSWORD C3
SYSTEM CONFIGURATION C4
ON SCREEN SET C5
ALIGNMENT C6
WHITE UNIFORMITY C7
EXTEND MENU C8
40
About monitor address and group numbers
The BKM-10R/11R Monitor Control Units are able to
control up to 32 monitors connected via serial remote
connector (using the REMOTE 1 connector). By
giving each monitor a monitor address and group
number, it is possible to control just a specific monitor
or monitor group.
With the REMOTE 1 CONFIG menu, each monitor
can be set with a monitor address and group number,
between 1 and 99.
The ADDRESS menu is used to select a particular
monitor or group by entering a monitor number or
group number.
For information about the ADDRESS menu, see "Selecting
the Monitor to Control — ADDRESS Menu" on page 60.
Note
The address number must differ from one monitor to
another. If two or more monitors have the same
address number, an operation error occurs.
Level 2
REMOTE 1 CONFIG C21
REMOTE 2 CONFIG C22
REMOTE 2
Level 3
Level 4
MONITOR ADDRESS
GROUP ADDRESS
CH (1/2)
1 PIN
C221
2 PIN
3 PIN
BLUE ONLY (2/2)
4 PIN
5 PIN
6 PIN
7 PIN
8 PIN
