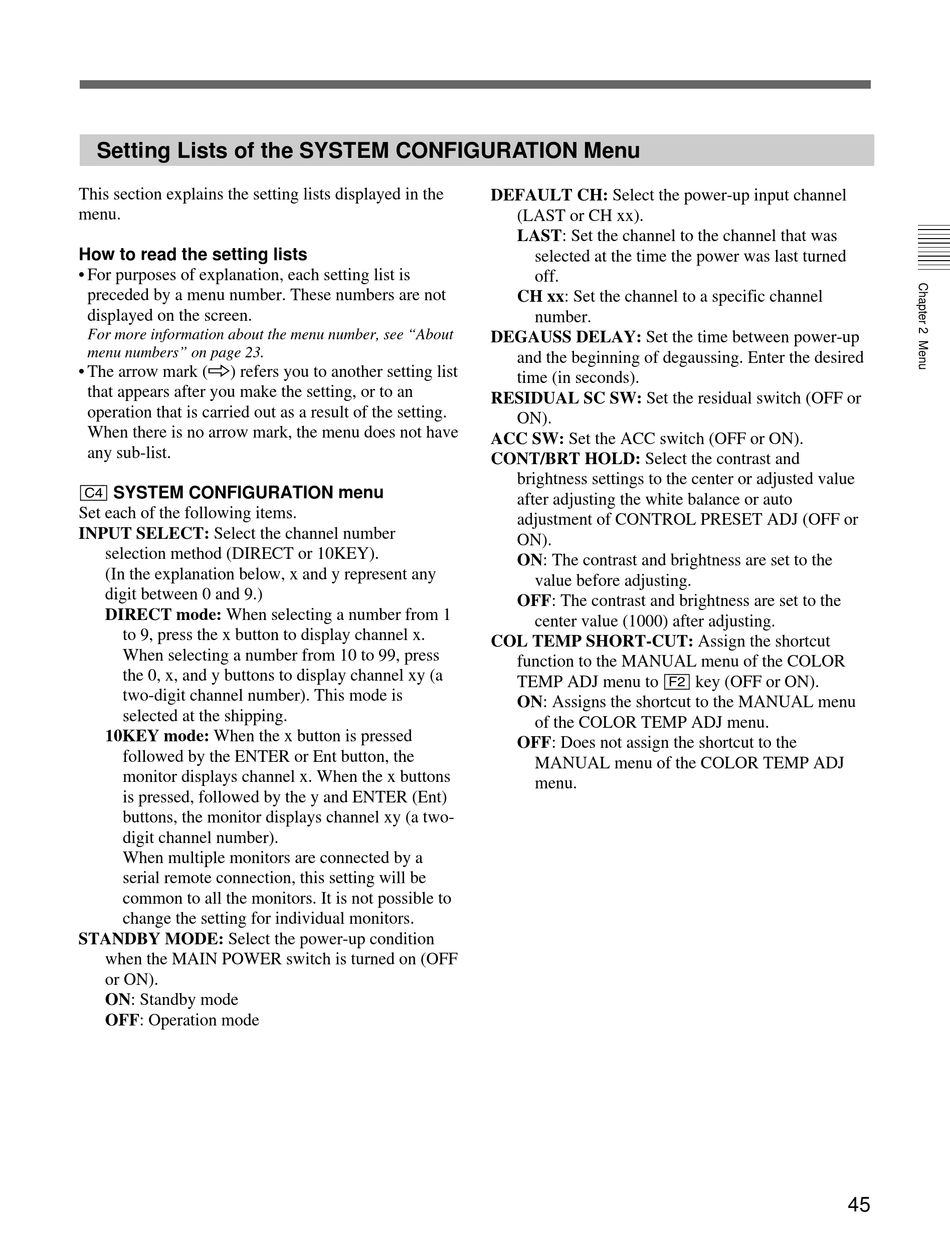

Setting Lists of the SYSTEM CONFIGURATION Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
For more information about the menu number, see "About
menu numbers" on page 23.
• The arrow mark (÷) refers you to another setting list
that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not have
any sub-list.
[C4] SYSTEM CONFIGURATION menu
Set each of the following items.
INPUT SELECT: Select the channel number
selection method (DIRECT or 10KEY).
(In the explanation below, x and y represent any
digit between 0 and 9.)
DIRECT mode: When selecting a number from 1
to 9, press the x button to display channel x.
When selecting a number from 10 to 99, press
the 0, x, and y buttons to display channel xy (a
two-digit channel number). This mode is
selected at the shipping.
10KEY mode: When the x button is pressed
followed by the ENTER or Ent button, the
monitor displays channel x. When the x buttons
is pressed, followed by the y and ENTER (Ent)
buttons, the monitor displays channel xy (a two-
digit channel number).
When multiple monitors are connected by a
serial remote connection, this setting will be
common to all the monitors. It is not possible to
change the setting for individual monitors.
STANDBY MODE: Select the power-up condition
when the MAIN POWER switch is turned on (OFF
or ON).
ON: Standby mode
OFF: Operation mode
DEFAULT CH: Select the power-up input channel
(LAST or CH xx).
LAST: Set the channel to the channel that was
selected at the time the power was last turned
off.
CH xx: Set the channel to a specific channel
number.
DEGAUSS DELAY: Set the time between power-up
and the beginning of degaussing. Enter the desired
time (in seconds).
RESIDUAL SC SW: Set the residual switch (OFF or
ON).
ACC SW: Set the ACC switch (OFF or ON).
CONT/BRT HOLD: Select the contrast and
brightness settings to the center or adjusted value
after adjusting the white balance or auto
adjustment of CONTROL PRESET ADJ (OFF or
ON).
ON: The contrast and brightness are set to the
value before adjusting.
OFF: The contrast and brightness are set to the
center value (1000) after adjusting.
COL TEMP SHORT-CUT: Assign the shortcut
function to the MANUAL menu of the COLOR
TEMP ADJ menu to [F2] key (OFF or ON).
ON: Assigns the shortcut to the MANUAL menu
of the COLOR TEMP ADJ menu.
OFF: Does not assign the shortcut to the
MANUAL menu of the COLOR TEMP ADJ
menu.
45
