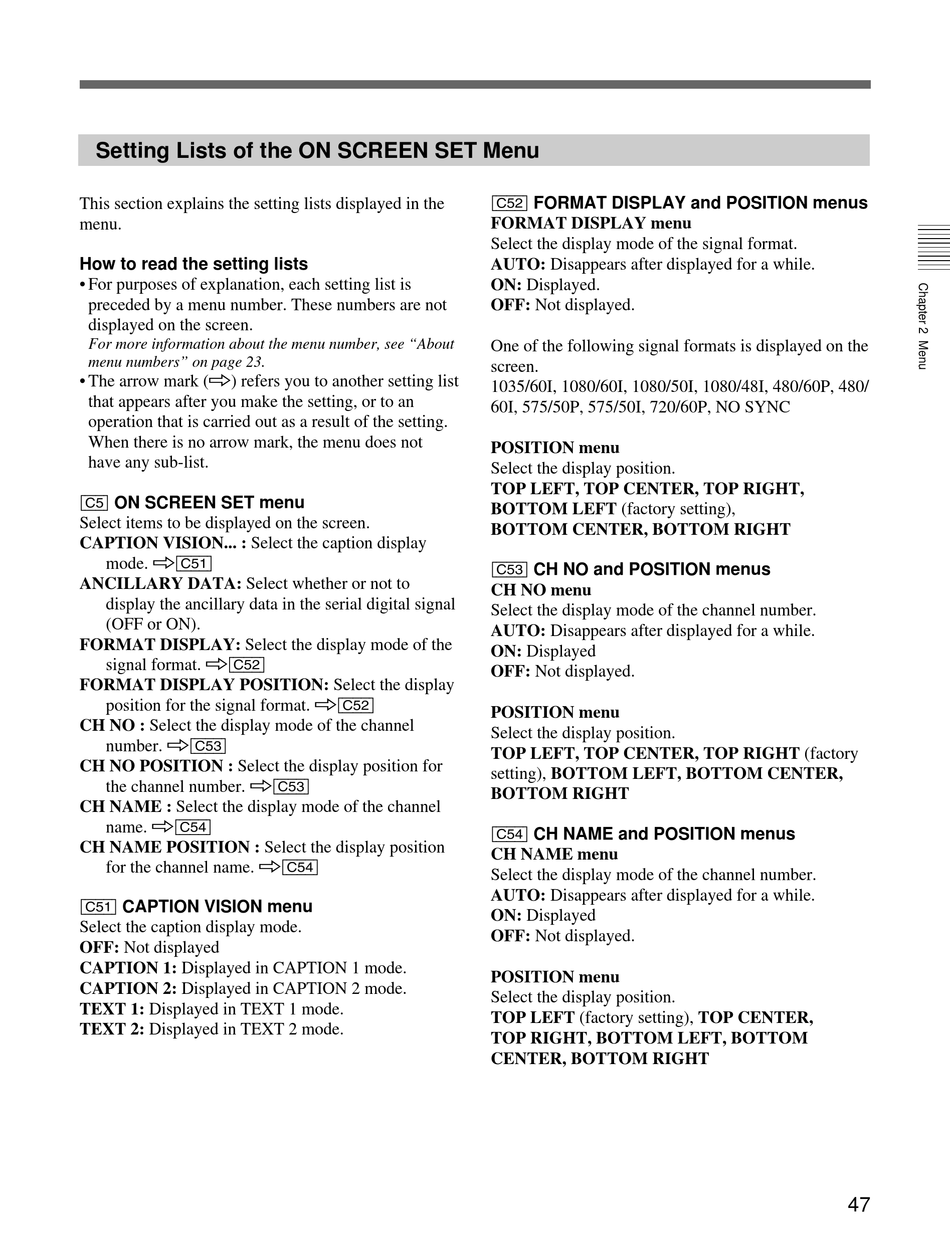

Setting Lists of the ON SCREEN SET Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
For more information about the menu number, see "About
menu numbers" on page 23.
• The arrow mark (÷) refers you to another setting list
that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not
have any sub-list.
[C5] ON SCREEN SET menu
Select items to be displayed on the screen.
CAPTION VISION... : Select the caption display
mode. ÷[C51]
ANCILLARY DATA: Select whether or not to
display the ancillary data in the serial digital signal
(OFF or ON).
FORMAT DISPLAY: Select the display mode of the
signal format. ÷[C52]
FORMAT DISPLAY POSITION: Select the display
position for the signal format. ÷[C52]
CH NO : Select the display mode of the channel
number. ÷[C53]
CH NO POSITION : Select the display position for
the channel number. ÷[C53]
CH NAME : Select the display mode of the channel
name. ÷[C54]
CH NAME POSITION : Select the display position
for the channel name. ÷[C54]
[C51] CAPTION VISION menu
Select the caption display mode.
OFF: Not displayed
CAPTION 1: Displayed in CAPTION 1 mode.
CAPTION 2: Displayed in CAPTION 2 mode.
TEXT 1: Displayed in TEXT 1 mode.
TEXT 2: Displayed in TEXT 2 mode.
[C52] FORMAT DISPLAY and POSITION menus
FORMAT DISPLAY menu
Select the display mode of the signal format.
AUTO: Disappears after displayed for a while.
ON: Displayed.
OFF: Not displayed.
One of the following signal formats is displayed on the
screen.
1035/60I, 1080/60I, 1080/50I, 1080/48I, 480/60P, 480/
60I, 575/50P, 575/50I, 720/60P, NO SYNC
POSITION menu
Select the display position.
TOP LEFT, TOP CENTER, TOP RIGHT,
BOTTOM LEFT (factory setting),
BOTTOM CENTER, BOTTOM RIGHT
[C53] CH NO and POSITION menus
CH NO menu
Select the display mode of the channel number.
AUTO: Disappears after displayed for a while.
ON: Displayed
OFF: Not displayed.
POSITION menu
Select the display position.
TOP LEFT, TOP CENTER, TOP RIGHT (factory
setting), BOTTOM LEFT, BOTTOM CENTER,
BOTTOM RIGHT
[C54] CH NAME and POSITION menus
CH NAME menu
Select the display mode of the channel number.
AUTO: Disappears after displayed for a while.
ON: Displayed
OFF: Not displayed.
POSITION menu
Select the display position.
TOP LEFT (factory setting), TOP CENTER,
TOP RIGHT, BOTTOM LEFT, BOTTOM
CENTER, BOTTOM RIGHT
47
