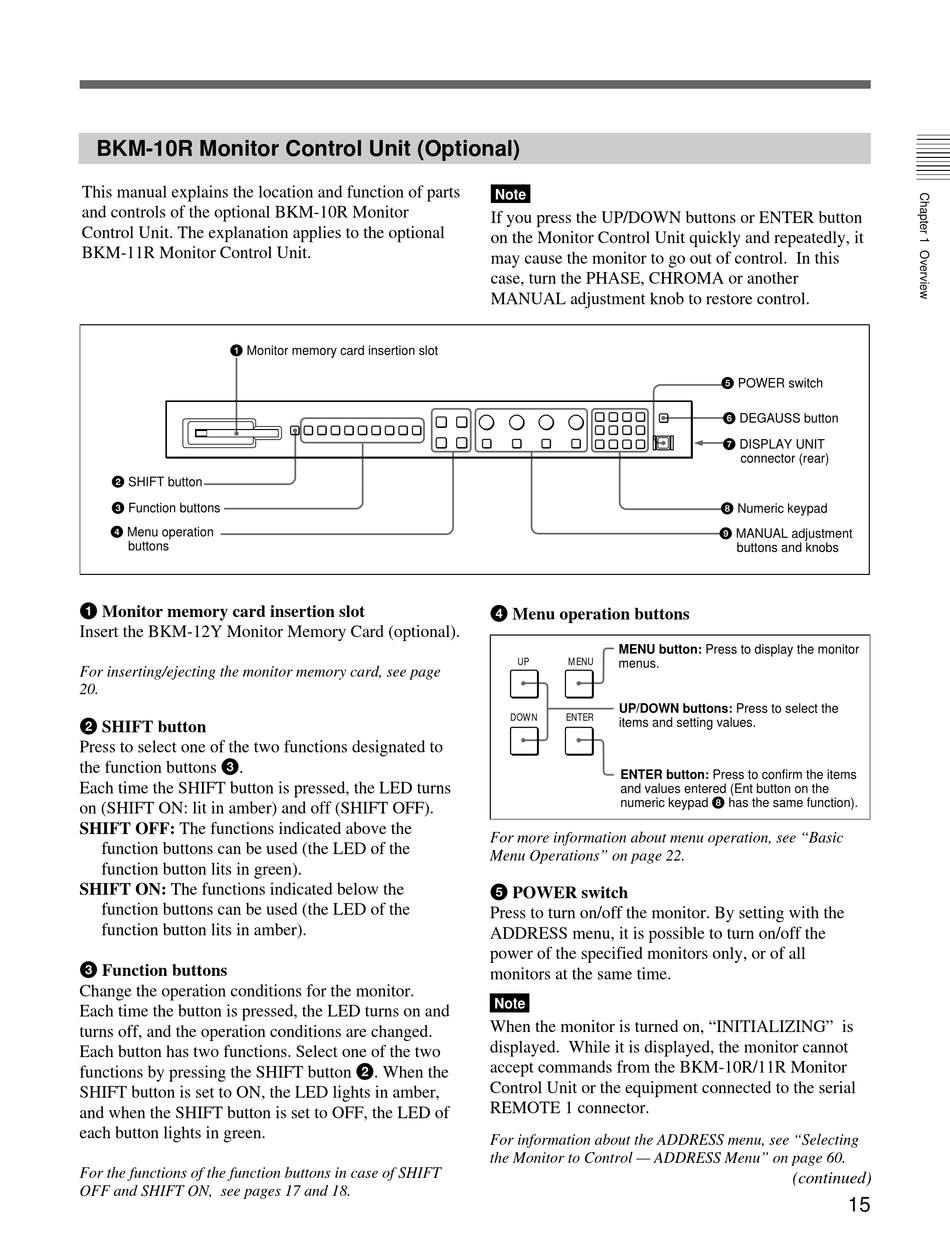

BKM-10R Monitor Control Unit (Optional)

This manual explains the location and function of parts
and controls of the optional BKM-10R Monitor
Control Unit. The explanation applies to the optional
BKM-11R Monitor Control Unit.
1 Monitor memory card insertion slot
2 SHIFT button
3 Function buttons
4 Menu operation
buttons
1 Monitor memory card insertion slot
Insert the BKM-12Y Monitor Memory Card (optional).
For inserting/ejecting the monitor memory card, see page
20.
2 SHIFT button
Press to select one of the two functions designated to
the function buttons 3.
Each time the SHIFT button is pressed, the LED turns
on (SHIFT ON: lit in amber) and off (SHIFT OFF).
SHIFT OFF: The functions indicated above the
function buttons can be used (the LED of the
function button lits in green).
SHIFT ON: The functions indicated below the
function buttons can be used (the LED of the
function button lits in amber).
3 Function buttons
Change the operation conditions for the monitor.
Each time the button is pressed, the LED turns on and
turns off, and the operation conditions are changed.
Each button has two functions. Select one of the two
functions by pressing the SHIFT button 2. When the
SHIFT button is set to ON, the LED lights in amber,
and when the SHIFT button is set to OFF, the LED of
each button lights in green.
For the functions of the function buttons in case of SHIFT
OFF and SHIFT ON, see pages 17 and 18.
Note
If you press the UP/DOWN buttons or ENTER button
on the Monitor Control Unit quickly and repeatedly, it
may cause the monitor to go out of control. In this
case, turn the PHASE, CHROMA or another
MANUAL adjustment knob to restore control.
4 Menu operation buttons
MENU button: Press to display the monitor
UP
MENU
menus.
UP/DOWN buttons: Press to select the
DOWN
ENTER
items and setting values.
ENTER button: Press to confirm the items
and values entered (Ent button on the
numeric keypad 8 has the same function).
For more information about menu operation, see "Basic
Menu Operations" on page 22.
5 POWER switch
Press to turn on/off the monitor. By setting with the
ADDRESS menu, it is possible to turn on/off the
power of the specified monitors only, or of all
monitors at the same time.
Note
When the monitor is turned on, "INITIALIZING" is
displayed. While it is displayed, the monitor cannot
accept commands from the BKM-10R/11R Monitor
Control Unit or the equipment connected to the serial
REMOTE 1 connector.
For information about the ADDRESS menu, see "Selecting
the Monitor to Control — ADDRESS Menu" on page 60.
5 POWER switch
6 DEGAUSS button
7 DISPLAY UNIT
connector (rear)
8 Numeric keypad
9 MANUAL adjustment
buttons and knobs
(continued)
