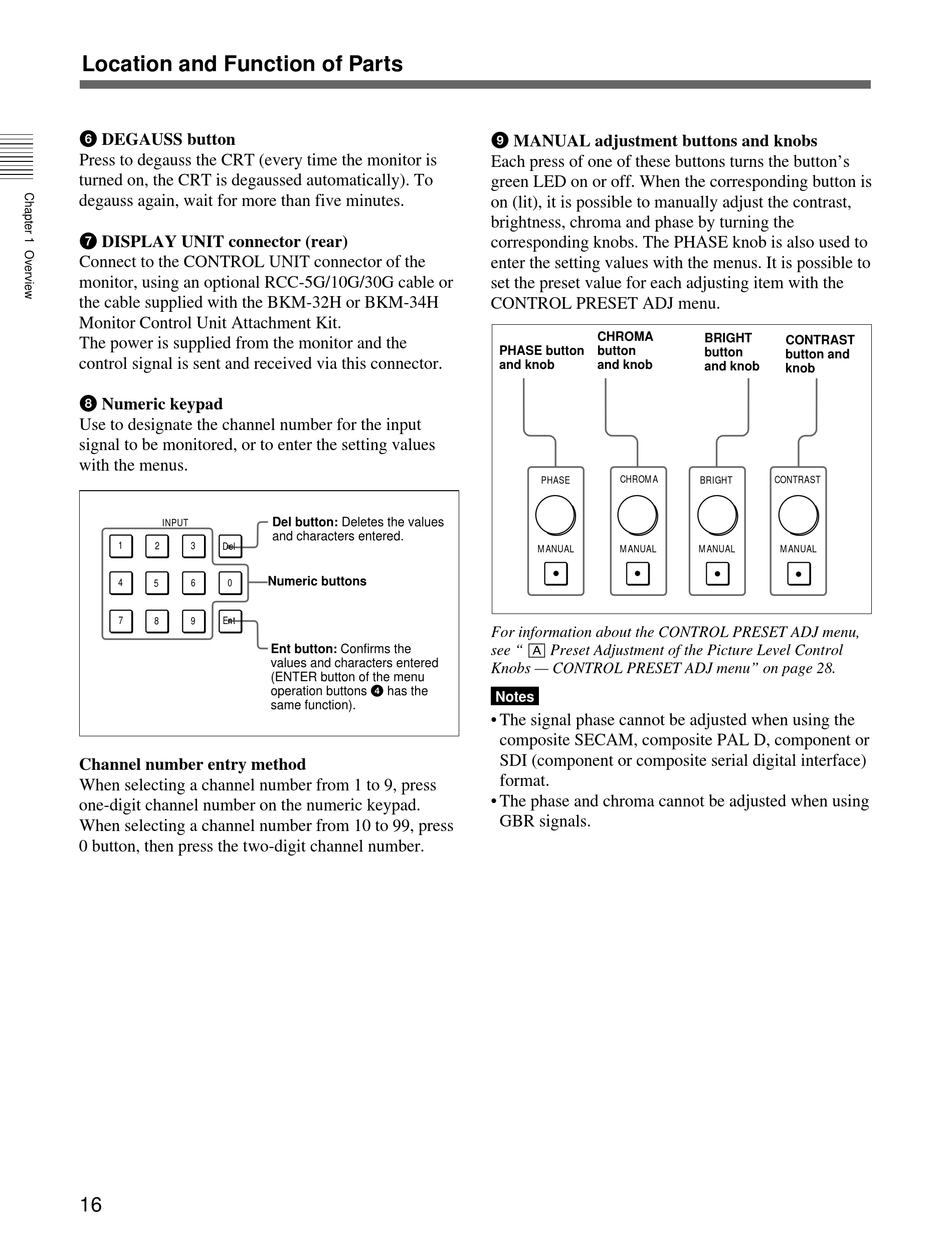

Location and Function of Parts
6 DEGAUSS button
Press to degauss the CRT (every time the monitor is
turned on, the CRT is degaussed automatically). To
degauss again, wait for more than five minutes.
7 DISPLAY UNIT connector (rear)
Connect to the CONTROL UNIT connector of the
monitor, using an optional RCC-5G/10G/30G cable or
the cable supplied with the BKM-32H or BKM-34H
Monitor Control Unit Attachment Kit.
The power is supplied from the monitor and the
control signal is sent and received via this connector.
8 Numeric keypad
Use to designate the channel number for the input
signal to be monitored, or to enter the setting values
with the menus.
INPUT
1
2
3
Del
4
0
5
6
7
Ent
8
9
Channel number entry method
When selecting a channel number from 1 to 9, press
one-digit channel number on the numeric keypad.
When selecting a channel number from 10 to 99, press
0 button, then press the two-digit channel number.
16
Del button: Deletes the values
and characters entered.
Numeric buttons
Ent button: Confirms the
values and characters entered
(ENTER button of the menu
operation buttons 4 has the
same function).
9 MANUAL adjustment buttons and knobs
Each press of one of these buttons turns the button's
green LED on or off. When the corresponding button is
on (lit), it is possible to manually adjust the contrast,
brightness, chroma and phase by turning the
corresponding knobs. The PHASE knob is also used to
enter the setting values with the menus. It is possible to
set the preset value for each adjusting item with the
CONTROL PRESET ADJ menu.
CHROMA
PHASE button
button
and knob
and knob
CHROMA
PHASE
MANUAL
MANUAL
For information about the CONTROL PRESET ADJ menu,
see " [A] Preset Adjustment of the Picture Level Control
Knobs — CONTROL PRESET ADJ menu" on page 28.
Notes
• The signal phase cannot be adjusted when using the
composite SECAM, composite PAL D, component or
SDI (component or composite serial digital interface)
format.
• The phase and chroma cannot be adjusted when using
GBR signals.
BRIGHT
CONTRAST
button
button and
and knob
knob
BRIGHT
CONTRAST
MANUAL
MANUAL
