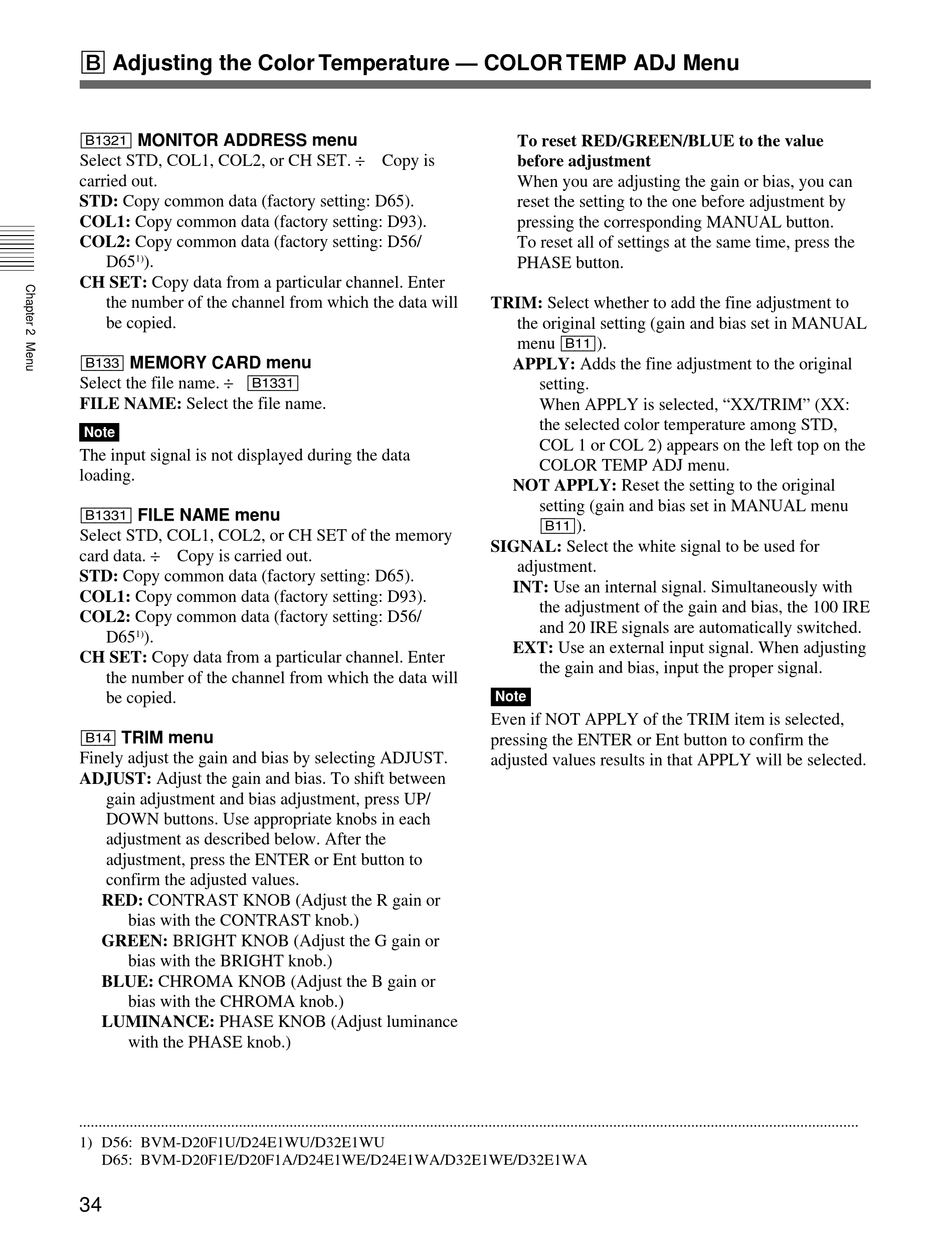

Sony BVM-D24E1WU, BVM-D24E1WE, BVM-D24E1WA Operation Manual Page 40

Sony color video monitor operation manual.
Hide thumbs

Advertisement

B Adjusting the Color Temperature — COLOR TEMP ADJ Menu
[B1321] MONITOR ADDRESS menu
Select STD, COL1, COL2, or CH SET.
carried out.
STD: Copy common data (factory setting: D65).
COL1: Copy common data (factory setting: D93).
COL2: Copy common data (factory setting: D56/
D65
1)
).
CH SET: Copy data from a particular channel. Enter
the number of the channel from which the data will
be copied.
[B133] MEMORY CARD menu
[B1331]
Select the file name.
FILE NAME: Select the file name.
Note
The input signal is not displayed during the data
loading.
[B1331] FILE NAME menu
Select STD, COL1, COL2, or CH SET of the memory
card data.
Copy is carried out.
STD: Copy common data (factory setting: D65).
COL1: Copy common data (factory setting: D93).
COL2: Copy common data (factory setting: D56/
1)
D65
).
CH SET: Copy data from a particular channel. Enter
the number of the channel from which the data will
be copied.
[B14] TRIM menu
Finely adjust the gain and bias by selecting ADJUST.
ADJUST: Adjust the gain and bias. To shift between
gain adjustment and bias adjustment, press UP/
DOWN buttons. Use appropriate knobs in each
adjustment as described below. After the
adjustment, press the ENTER or Ent button to
confirm the adjusted values.
RED: CONTRAST KNOB (Adjust the R gain or
bias with the CONTRAST knob.)
GREEN: BRIGHT KNOB (Adjust the G gain or
bias with the BRIGHT knob.)
BLUE: CHROMA KNOB (Adjust the B gain or
bias with the CHROMA knob.)
LUMINANCE: PHASE KNOB (Adjust luminance
with the PHASE knob.)
........................................................................................................................................................................................................
1) D56: BVM-D20F1U/D24E1WU/D32E1WU
D65: BVM-D20F1E/D20F1A/D24E1WE/D24E1WA/D32E1WE/D32E1WA
34
To reset RED/GREEN/BLUE to the value
Copy is
before adjustment
When you are adjusting the gain or bias, you can
reset the setting to the one before adjustment by
pressing the corresponding MANUAL button.
To reset all of settings at the same time, press the
PHASE button.
TRIM: Select whether to add the fine adjustment to
the original setting (gain and bias set in MANUAL
menu [B11]).
APPLY: Adds the fine adjustment to the original
setting.
When APPLY is selected, "XX/TRIM" (XX:
the selected color temperature among STD,
COL 1 or COL 2) appears on the left top on the
COLOR TEMP ADJ menu.
NOT APPLY: Reset the setting to the original
setting (gain and bias set in MANUAL menu
[B11]).
SIGNAL: Select the white signal to be used for
adjustment.
INT: Use an internal signal. Simultaneously with
the adjustment of the gain and bias, the 100 IRE
and 20 IRE signals are automatically switched.
EXT: Use an external input signal. When adjusting
the gain and bias, input the proper signal.
Note
Even if NOT APPLY of the TRIM item is selected,
pressing the ENTER or Ent button to confirm the
adjusted values results in that APPLY will be selected.
