Equipment Connections

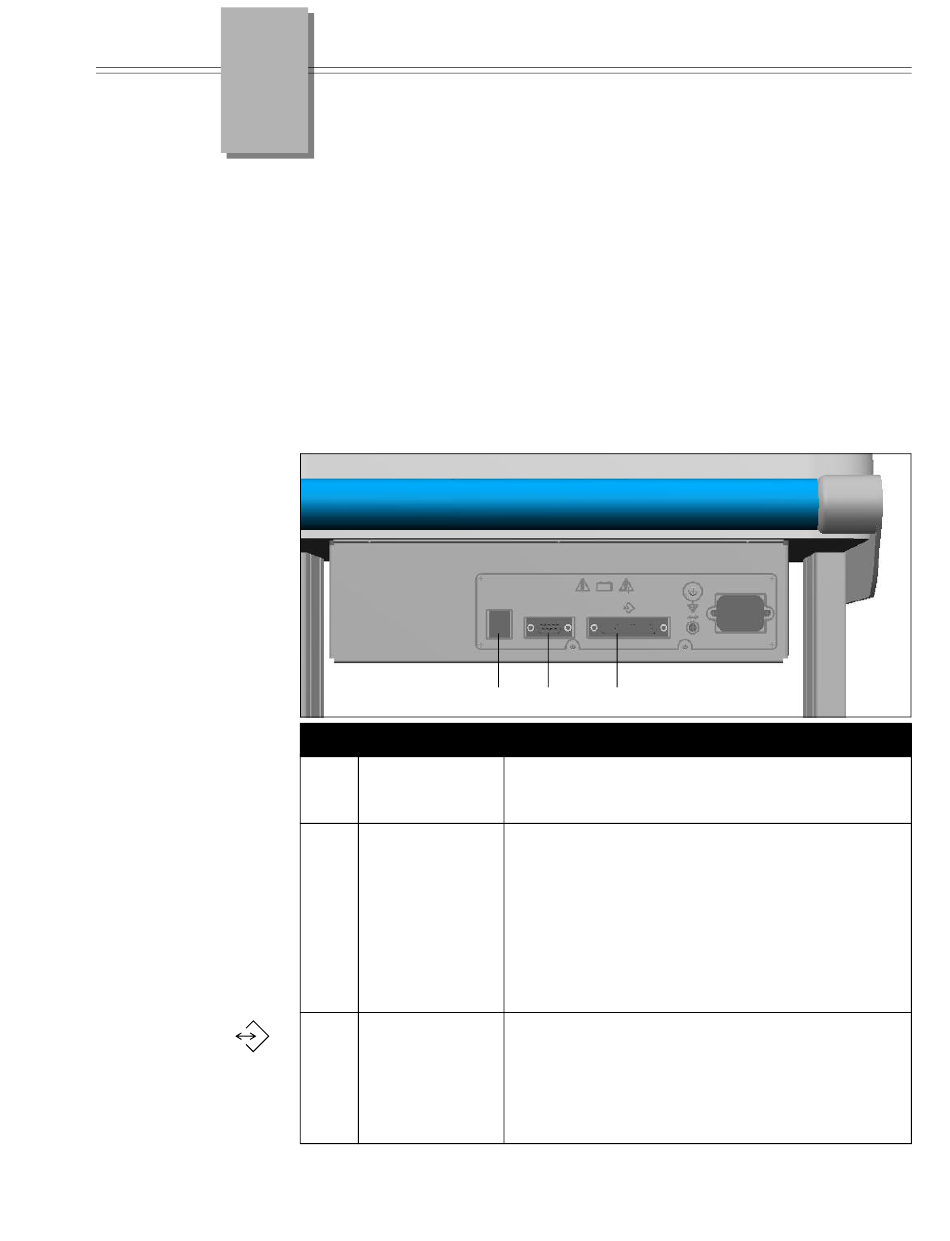

Figure 8-1
Back Panel
RJ11
IOIO
070-1149-01 B

Sending and Receiving Records

NOTE: You may use your Eclipse Premier for a variety of sending
and receiving. You may use a remote connection with either an internal
or an external modem, a wireless connection with a wireless device, or
a direct connection with another Eclipse or a compatible ECG
management system.
Eclipse Premier units with communication capabilities can receive requisitions, as well
as transmit ECGs to and receive ECGs from other Eclipse electrocardiographs or the
PYRAMIS ECG management system.
A
Internal Modem
Serial Port
B
Analog output
C
A B C
Key
Connect phone line cable, p/n 007079, to this RJ11
connector if your unit is equipped with an internal
fax/modem.
Connect compatible fax/modems to this serial connector
using an approved modem cable. Most Hayes-
compatible modems supporting Fax Service Class 2
commands will work with the Eclipse Premier.
Also use this connector for direct connection to a
compatible management system. The part numbers for
direct connect cables are 012-0710-00 for the adapter
cable; 882029 for the workstation cable; and 863347 for
the server cable.
The analog output provides one channel waveform,
typically the first channel which is currently displayed on
the PREVIEW screen, unless the PREVIEW screen is
displaying all 12 leads. In this case, channel II is output.
For wireless connection, connect adapter module into
this DB-25 connector (see Figure 8-2 on pg. 8-2).
