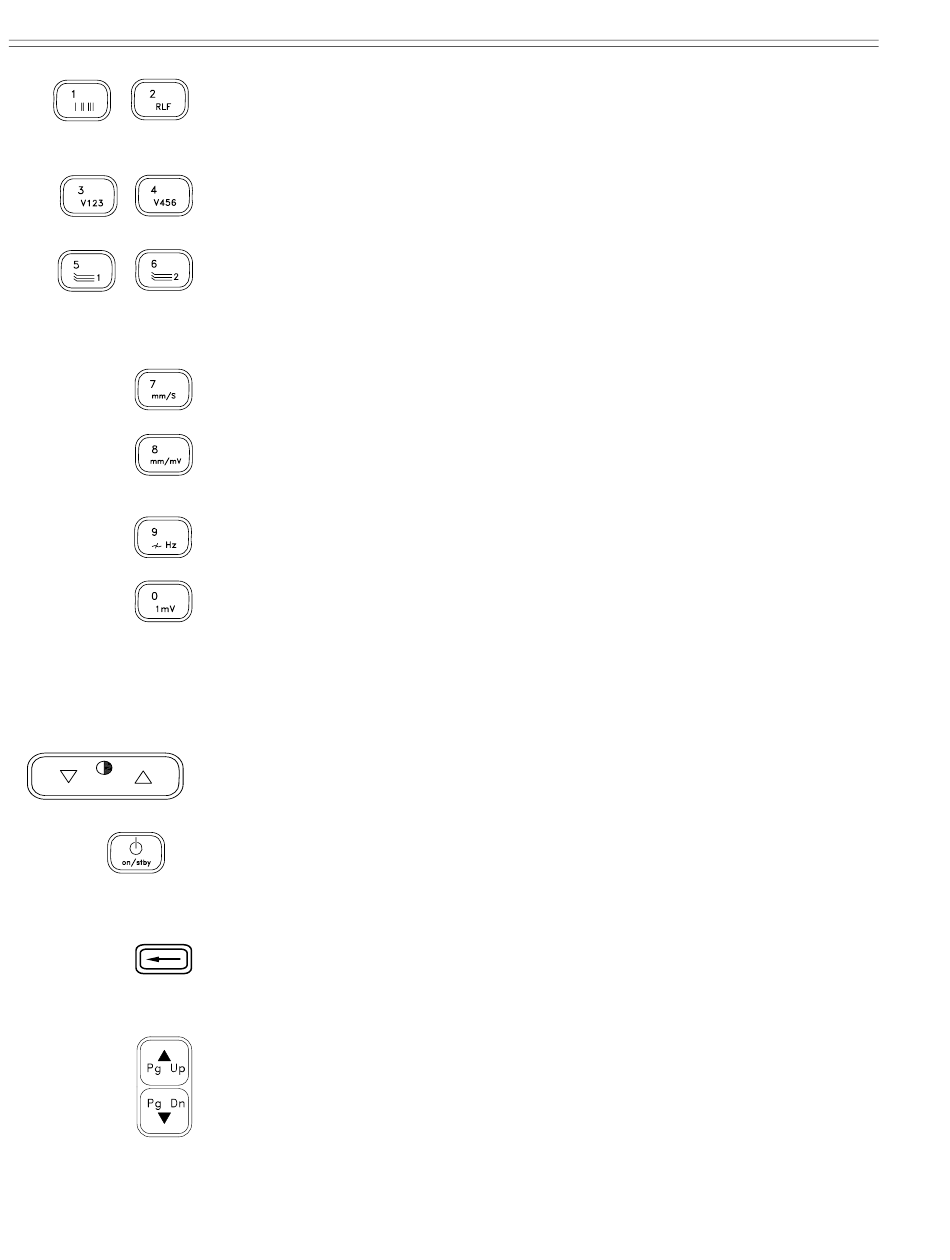

Use the "1" and "2" keys to select pre-programmed lead triplets for the display; the
displayed leads will also be printed on Manual Rhythm and Auto Rhythm reports.
In the PREVIEW screen, use the "1" and "2" keys with the Shift key to select either
User 1 or User 2. See Chapter 4 for user setup information.
Use the "3" and "4" keys to select pre-programmed lead triplets for the display; the
displayed leads will also be printed on Manual Rhythm and Auto Rhythm reports.
Use the "5" and "6" keys to select user-defined leads (Custom Lead 1 and Custom Lead
2) for the display; the displayed leads will also be printed on Manual Rhythm and Auto
Rhythm reports. See "CUSTOM LEAD 1 & CUSTOM LEAD 2" on pg. 4-11 for setup
information.
Use the "7" key to toggle the Paper Speed between 10, 25 and 50 mm/sec.
Use the "8" key to toggle the ECG Gain between 5 mm/mV, 10 mm/mV, 20 mm/mV,
L10,C5 mm/mV and L20, C10 mm/mV.
Use the "9" key to toggle the ECG Filter Frequency between 40 and 150 Hz.
Use the "0" key to produce a 1 mV Calibration Pulse on the display and printouts.
NOTE: When numeric keys are used to change settings, the settings
are in effect for the current ECG only. To change settings for all future
ECGs, modify the settings in the USER SETUP menus or the
SYSTEM SETUP menu.
(C) BRIGHTNESS
Use this key to adjust the brightness of the display.
(D) ON/STANDBY
Use this key to turn the unit on. Pressing the On/Standby key again while the unit is on
will return the unit to standby mode.
(E) BACKSPACE
Use this key to backspace and delete one character behind the cursor, each time the key
is pressed.
(F) ARROW
Use the up and down arrows to move within menus, fields and lists. Hold down the shift
key and press the arrows to page up and down in the directory and in lists.
