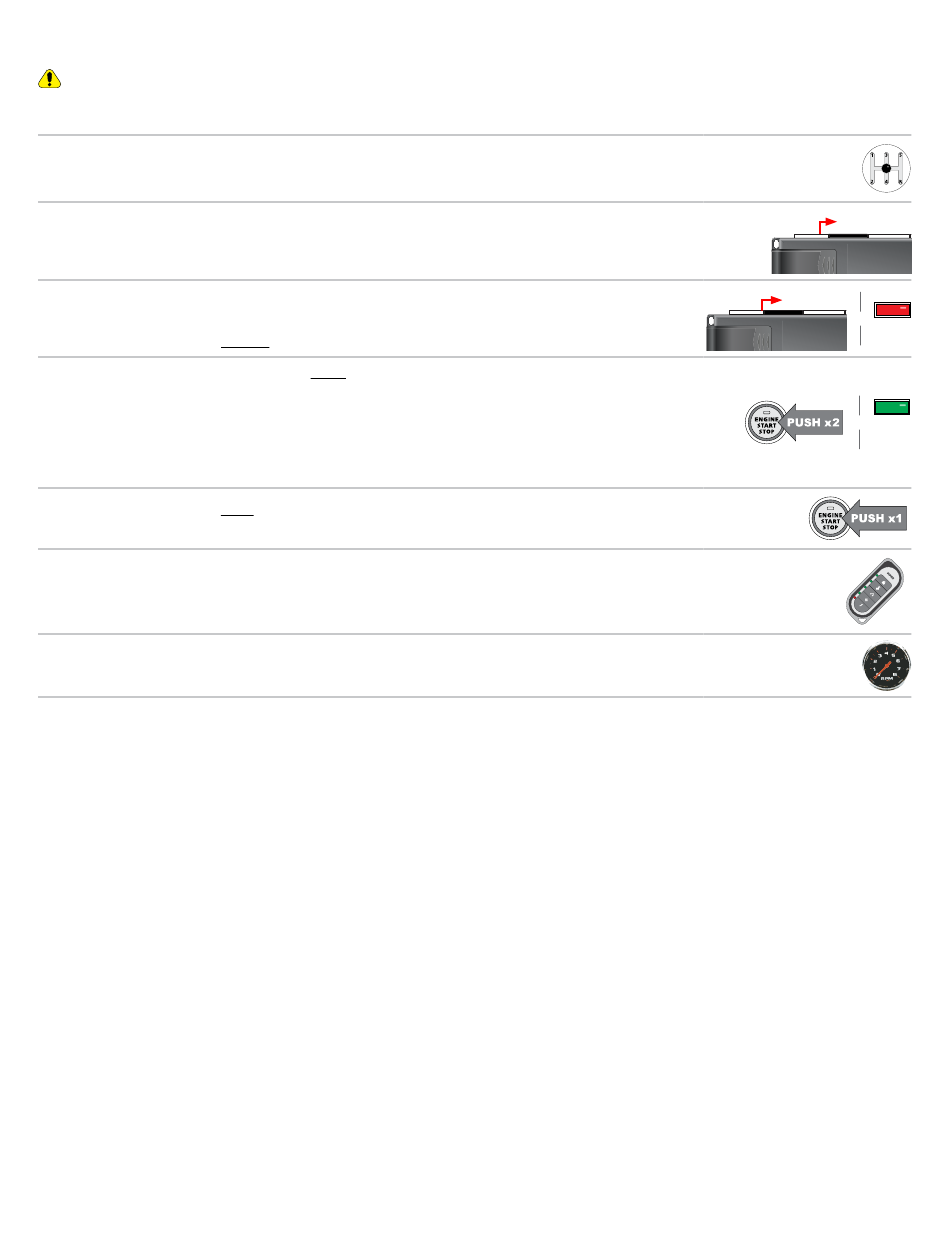

Module programming

Refer to "LED diagnostics and troubleshooting" on page 31 for more information and for troubleshooting purposes.
To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2
Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
3
Note: To skip the transponder programming and use convenience features only, press the
programming button 5 times.
Press the Push-to-Start (PTS) button twice to turn the ignition ON. The green LED turns ON
for 3 seconds.
If the module flashes Orange, your vehicle is equipped with a factory remote starter. See
4
section Pre-Installation and application warnings on page 4.
Note: If the transponder programming was skipped, 3 seconds the LED turns ON solid
orange for 3 seconds then shuts OFF when programming is done.
Press the PTS button once more to turn the ignition OFF. The module is successfully
5
programmed.
Pair remotes (if applicable). For information on how to pair a specific remote, please
6
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
7
program tach, see page 34.
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
30
Connect all but the
12-pin harness
Must be
connected LAST
&
Solid
&
Solid
x3 sec.
Pair
remotes*
Initialize
tachometer
DS4+ TL8
