Directed DS4+ Installation Manual page 10

Vehicle wiring reference chart

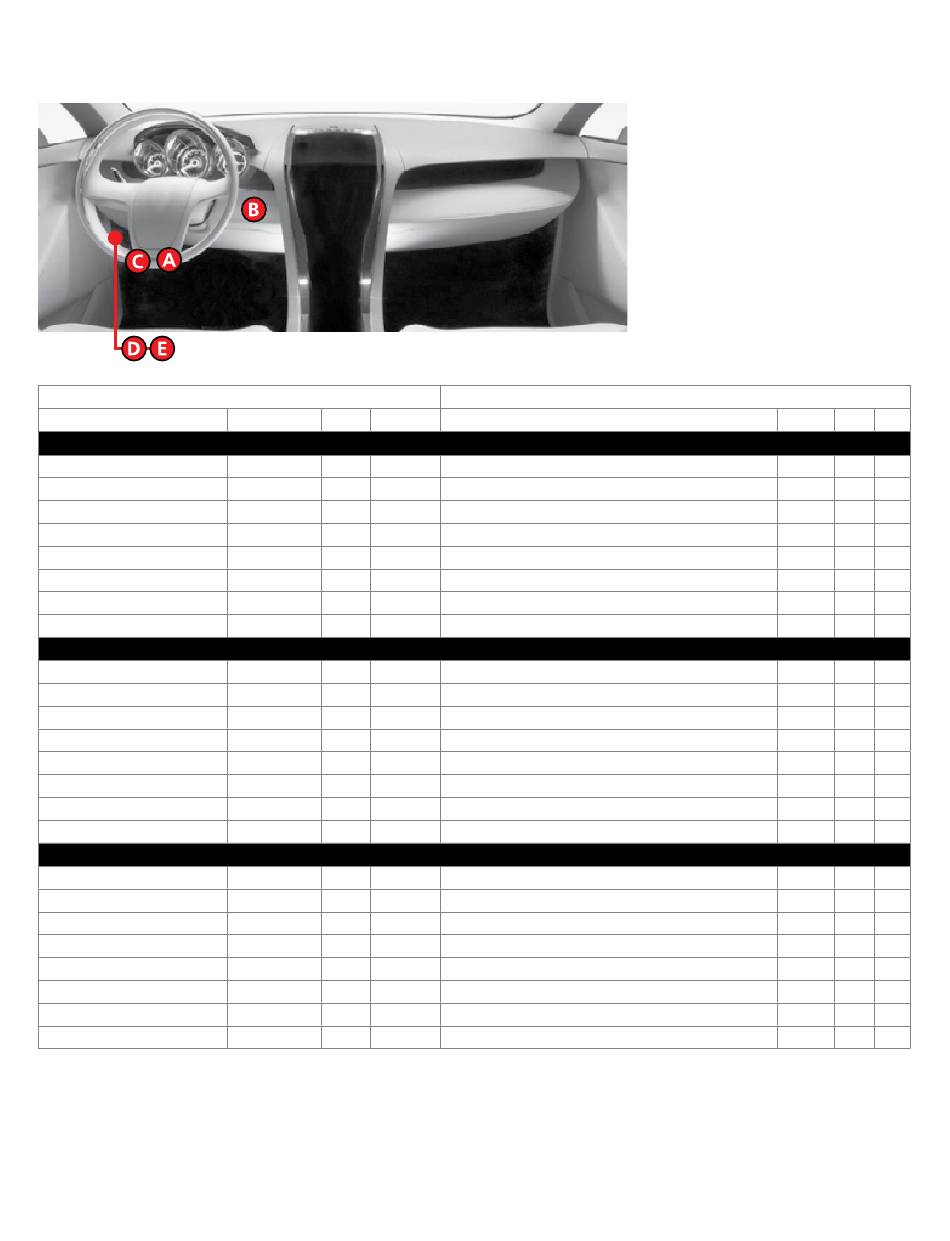

This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function
Lexus IS 200t (Smart key) 2016
SLP
PTS
HS CAN High
HS CAN Low
Autolight
Lock
Unlock
12V
Lexus IS 250 (Smart key) 2014-2015
SLP
PTS
HS CAN High
HS CAN Low
Autolight
Lock
Unlock
12V
Lexus IS 300 (Smart key) 2016
SLP
PTS
HS CAN High
HS CAN Low
Autolight
Lock
Unlock
12V
10
Color Pin Polarity
Red 4 (-)
Gray 5 (-)
White 6 Data
Black 14 Data
Pink 8 Cut
Blue 29 (-)
Lt. Green 2 (-)
Blue 13 (+)
Red 4 (-)
Gray 5 (-)
White 6 Data
Black 14 Data
Pink 8 Cut
Blue 29 (-)
Lt. Green 2 (-)
Blue 13 (+)
Red 4 (-)
Gray 5 (-)
White 6 Data
Black 14 Data
Pink 8 Cut
Blue 29 (-)
Lt. Green 2 (-)
Blue 13 (+)
Connector Information
Location
Steering lock connector.
Engine start/stop switch.
OBDII.
OBDII.
Main body ECU.
Main body ECU.
Main body ECU.
Main body ECU.
Steering lock connector.
Engine start/stop switch.
OBDII.
OBDII.
Main body ECU.
Main body ECU.
Main body ECU.
Dash fuse box.
Steering lock connector.
Engine start/stop switch.
OBDII.
OBDII.
Main body ECU.
Main body ECU.
Main body ECU.
Main body ECU.
Color Pins Ref.
Black 7 A
Black 10 B
White 16 C
White 16 C
White 30 D
White 30 D
White 30 D
White 36 E
Black 7 A
Black 10 B
White 16 C
White 16 C
White 30 D
White 30 D
White 30 D
White 36 E
Black 7 A
Black 10 B
White 16 C
White 16 C
White 30 D
White 30 D
White 30 D
White 36 E
