Directed DS4+ Installation Manual page 23

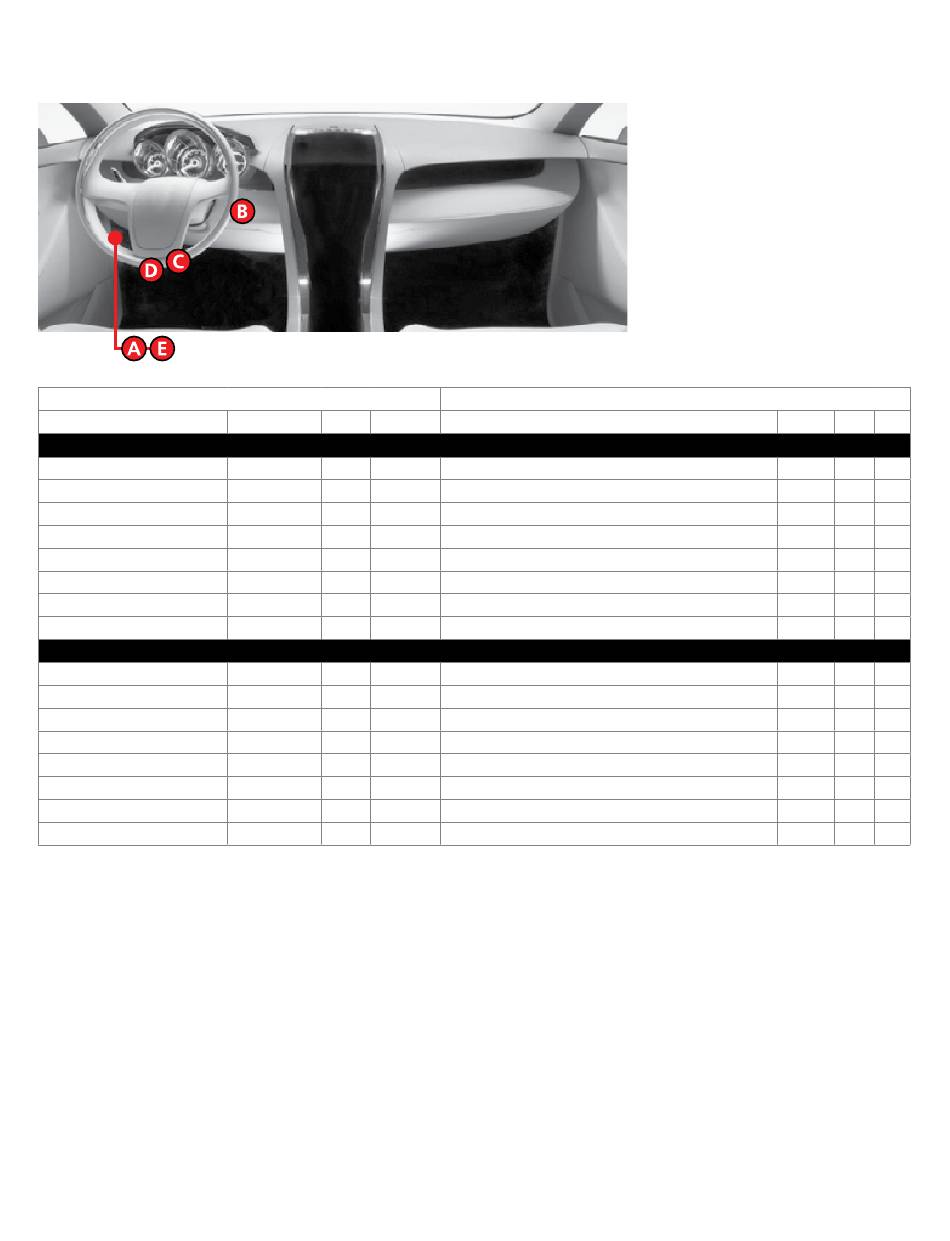

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function
Toyota Highlander (Smart Key) 2017
12V
PTS
HS CAN High
HS CAN Low
SLP
Autolight
Lock
Unlock
Toyota Highlander Hybrid 2017
12V
PTS
HS CAN High
HS CAN Low
SLP
Autolight
Lock
Unlock
23
Color Pin Polarity
Green 1 (+)
Yellow 5 (-)
Tan 3 Data
White 2 Data
Lt. Green 4 (-)
Black 8 Cut
Violet 29 (-)
Lt. Blue 2 (-)
Green 1 (+)
Yellow 5 (-)
Tan 3 Data
White 2 Data
Lt. Green 4 (-)
Black 8 Cut
Violet 29 (-)
Lt. Blue 2 (-)
Connector Information
Location
Dash fuse box.
PTS switch.
Steering sensor on steering column.
Steering sensor on steering column.
Steering lock connector.
Main body ECU.
Main body ECU.
Main body ECU.
Dash fuse box.
PTS switch.
Steering sensor on steering column.
Steering sensor on steering column.
Steering lock connector.
Main body ECU.
Main body ECU.
Main body ECU.
Color Pins Ref.
White 1 A
Black 10 B
Blue 5 C
Blue 5 C
Black 7 D
White 30 E
White 30 E
White 30 E
White 1 A
Black 10 B
Blue 5 C
Blue 5 C
Black 7 D
White 30 E
White 30 E
White 30 E
DS4+ TL8
