General notes: This section highlights important information for this specific firmware.
The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin.
[1]
The siren is ONLY required when enabling the security features during module flashing.
[2]
Only required for Pit Stop Mode.
[3]
SLP: See "Locating Steering Lock Connector in Vehicle" in Vehicle wiring reference chart.
[4]
Additional parts required (maximum required):
Diode 6A
0 x 1A Diodes

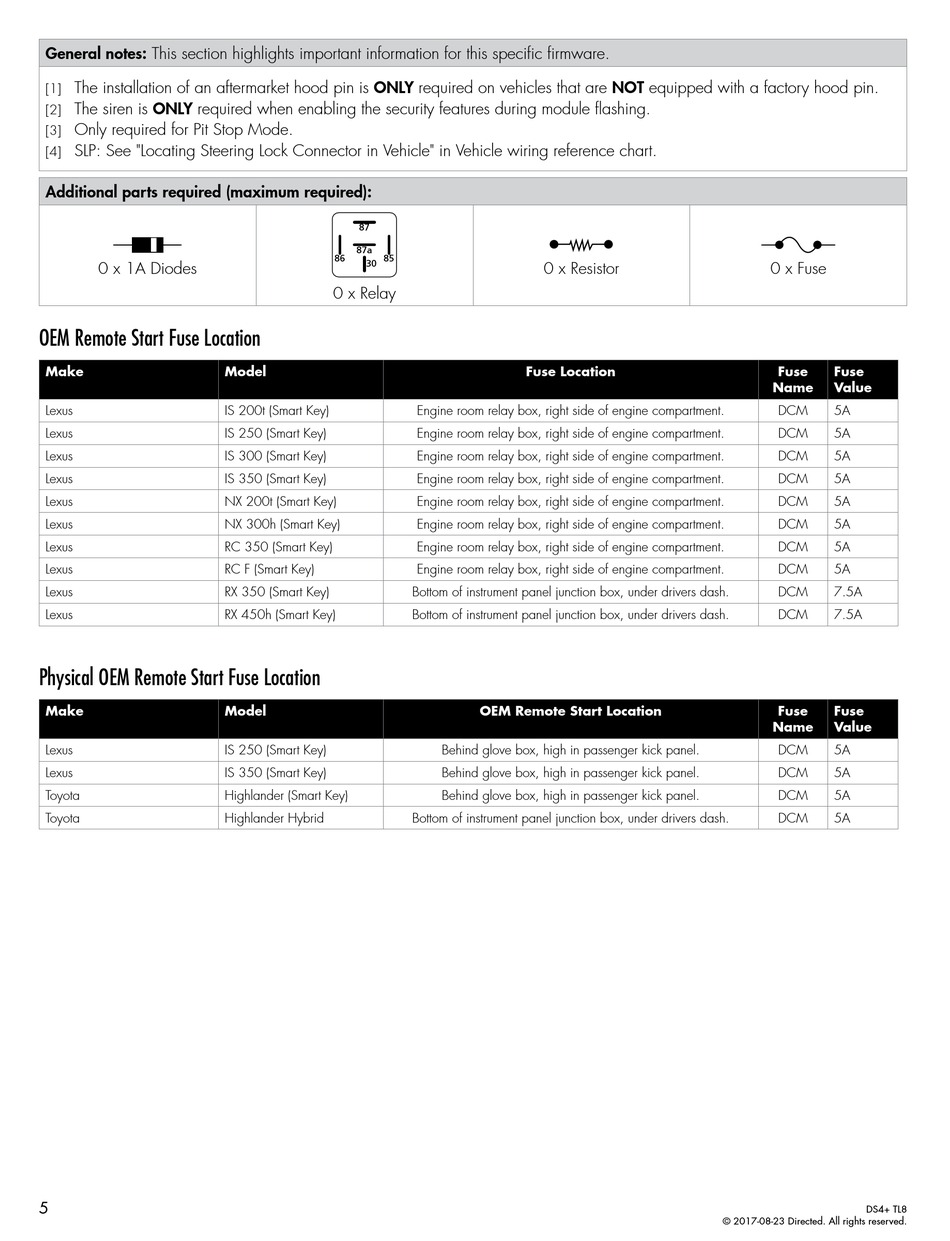

OEM Remote Start Fuse Location

Make
Lexus
Lexus
Lexus
Lexus
Lexus
Lexus
Lexus
Lexus
Lexus
Lexus

Physical OEM Remote Start Fuse Location

Make
Lexus
Lexus
Toyota
Toyota
5
87
87a
86 85
30
0 x Relay
Model
IS 200t (Smart Key)
IS 250 (Smart Key)
IS 300 (Smart Key)
IS 350 (Smart Key)
NX 200t (Smart Key)
NX 300h (Smart Key)
RC 350 (Smart Key)
RC F (Smart Key)
RX 350 (Smart Key)
RX 450h (Smart Key)
Model
IS 250 (Smart Key)
IS 350 (Smart Key)
Highlander (Smart Key)
Highlander Hybrid
Resistor 100Ω
0 x Resistor
Fuse Location
Engine room relay box, right side of engine compartment.
Engine room relay box, right side of engine compartment.
Engine room relay box, right side of engine compartment.
Engine room relay box, right side of engine compartment.
Engine room relay box, right side of engine compartment.
Engine room relay box, right side of engine compartment.
Engine room relay box, right side of engine compartment.
Engine room relay box, right side of engine compartment.
Bottom of instrument panel junction box, under drivers dash.
Bottom of instrument panel junction box, under drivers dash.
OEM Remote Start Location
Behind glove box, high in passenger kick panel.
Behind glove box, high in passenger kick panel.
Behind glove box, high in passenger kick panel.
Bottom of instrument panel junction box, under drivers dash.
Fuse 7.5A
0 x Fuse
Fuse Fuse
Name Value
DCM 5A
DCM 5A
DCM 5A
DCM 5A
DCM 5A
DCM 5A
DCM 5A
DCM 5A
DCM 7.5A
DCM 7.5A
Fuse Fuse
Name Value
DCM 5A
DCM 5A
DCM 5A
DCM 5A
DS4+ TL8
© 2017-08-23 Directed. All rights reserved.
