Mounting
Mounting the Extender AAP or Extender AAP EX into an AAP Wallplate or
Device Faceplate
The Extender AAP or Extender AAP EX and any other adapter plates must be attached to a
device faceplate or AAP wallplate and cabled before the device or wallplate is pretested or
installed in a wall or furniture.
1.
2.
3.
Wall Stud
Screws or
Nails
Cable
Clamp
Installation Cable
Figure 6.
4.
5.
Before any user-supplied cables are attached, insert
the output BNC connectors and wires of the
Extender AAP or Extender AAP EX through the
opening in the front of the wallplate or device
faceplate, as shown at right.
ATTENTION:
Be careful not to damage
connectors while placing the Extender
through the opening.
Insert the threaded standoffs of the AAP
through the holes in the device faceplate
or AAP wallplate.
Using the provided #4-40 nuts and captive washers, secure the Extender to the
faceplate or wallplate.
#4-40 Nut w/
Captive
Washer
0 2
P 1
A A
n
IN
t r o
E R
U T
E x
M P
C O
E R
N D
IN
T E
D IO
E X
A U
Extron
AAP 102
Extron
Extender AAP

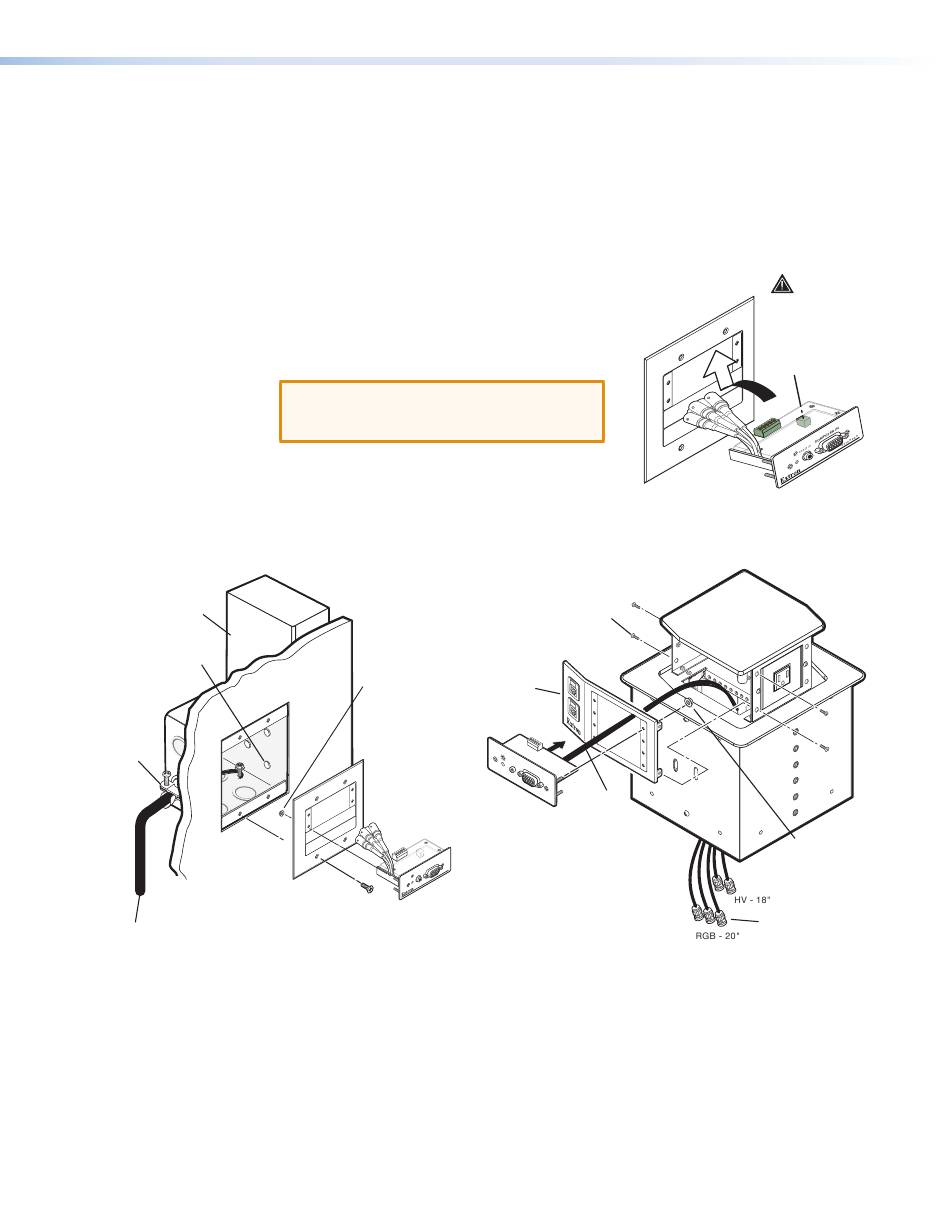

Left: Mounting the Extender AAP or Extender AAP EX to a Device or Wallplate
Right: Mounting the Extender AAP EX to an HSA Faceplate
Repeat steps 1, 2, and 3 to mount other AAPs. Cover any openings in the faceplate
with blank plates (provided).
Be sure to include the AAP connectors as part of the installation pretest before final
installation of the faceplate.
For more detailed installation information, see the installation guide shipped with the
faceplate or the HSA.
n
t r o
E x
AAP 102
Extron
HSA 822
Two Screws
Each Side
Front
Panel
A U
D IO
IN
H S
A 8
C O
M P
2 2
U T
E R
IN
Cable
Extron
Extender AAP EX
Extender Series • Installation
Rotate to avoid
breaking the
power connector
on the bottom
board.
0 2
P 1
A A
#4-40 Nut
w/ Captive
Washer
Connects to
AAP Cable
13
