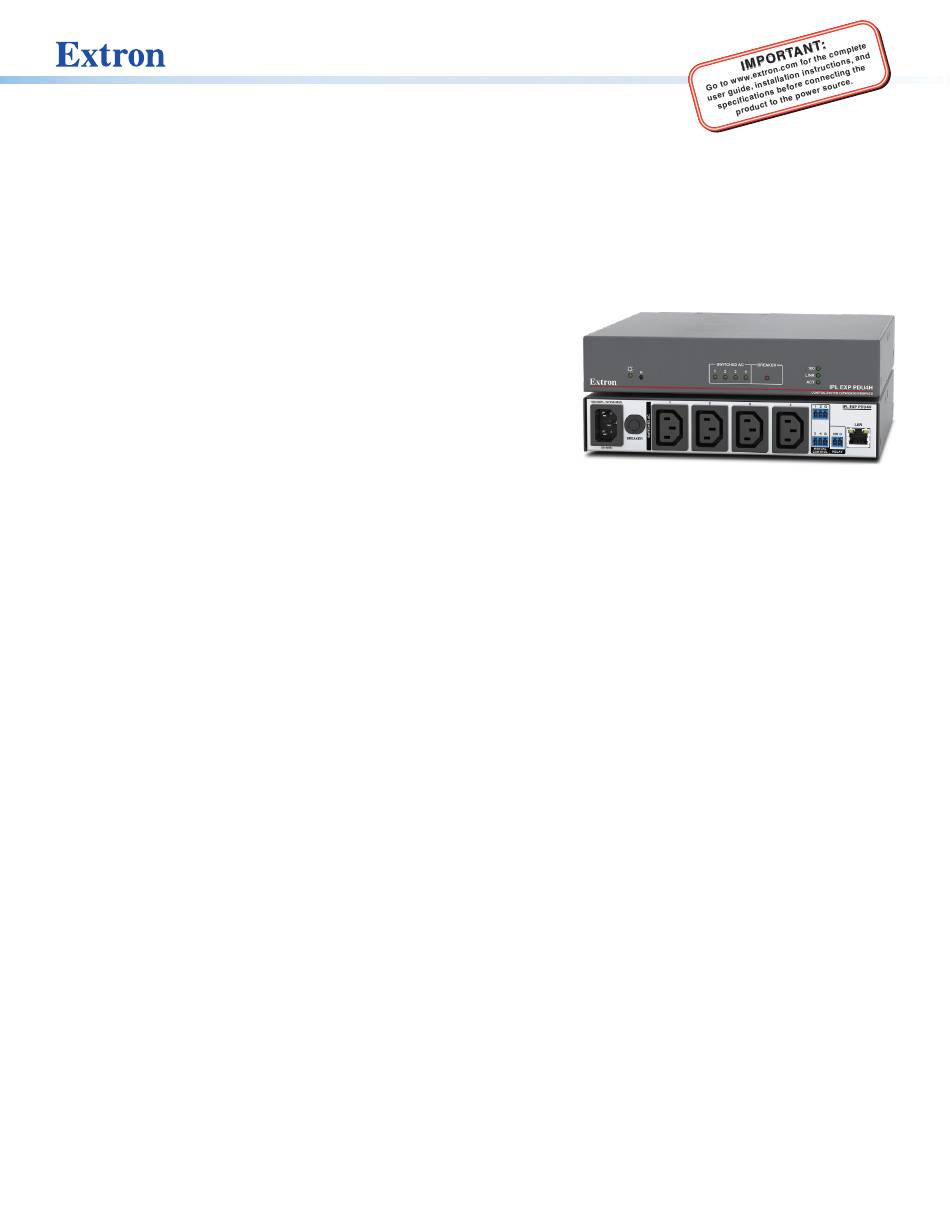

IPL EXP PDU4H • Setup Guide
The Extron IPL EXP PDU4H Control System Expansion Interface provides centralized power management for medium sized AV
systems. The IPL EXP PDU4H includes the following features:
•
Dedicated control and monitoring of four AC power outputs
•
Standalone manual input control for each AC output
•
A single relay output
•
Basic surge protection
•
Alarm notifications
It provides remote individual AC output control, ability to create schedules,
ability to resolve issues with devices, and aggregate current sensing via
software configuration or from the IPL EXP PDU4H embedded webpage.
The IPL EXP PDU4H works in combination with IPCP Pro xi Series control
processors. Once configured, these systems allow users to remotely
control, monitor, and troubleshoot AV equipment, including display
devices and switchers. All models include an embedded web server.
This guide provides instructions for an experienced installer to install an
IPL EXP PDU4H (with an IPCP Pro xi Series control processor) and to
create a basic configuration.
In this guide the IPL EXP PDU4H is referred to as the "IPL EXP," "EXP," "power distribution unit," or "power expansion interface."
Use Extron Toolbelt software to discover and manage the IPCP Pro xi control processor, the IPL EXP PDU4H, and other Extron
control products. Configure the control system using Extron Global Configurator
Professional (GC Professional) or Global Configurator Plus (GC Plus) mode, or program the control processor using
Global Scripter
 (GS). The control system integrates seamlessly with GlobalViewer
®
apps for remote control applications. Each IPCP Pro xi control processor supports multiple TouchLink
Network Button Panels (NBPs), and IPL EXP expansion interfaces over a standard Ethernet network. Global Configurator and
other useful software applications are available at www.extron.com.
Operation Modes
The IPL EXP PDU4H has three modes of operation:
•
Manual control (using the Manual Control
contact closure ports)
•
Enabled at all times
•
Takes precedence over the other two modes
•
Simple Instruction Set (SIS-over-SSH) control
•
Enabled by default
•
Best for Ethernet communication with non-Extron devices
•
Disabled by SPD mode
•
Secure Platform Device (SPD) mode
•
Enabled once the unit is paired with an IPCP Pro xi Series control processor via Toolbelt and configured using Global
Configurator or programmed with Global Scripter
•
Guarantees secure communication in an environment of Extron-only products
•
Disabled when the device is disconnected from the Extron control system (when the device is reset in Toolbelt or the
connection between the control processor and the IPL EXP is interrupted)
SIS-over-SSH (via port 22023) and SPD modes of operation are mutually exclusive.
•
Current sensing
•
Half rack enclosure
•
Optional cable kits
•
Compatibility with Extron IPCP Pro Q xi and xi Series
control processors
software running in Global Configurator
®
Enterprise (GVE) software and Extron Control
®
 Pro touchpanel interfaces,
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPL EXP PDU4H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics IPL EXP PDU4H

Summary of Contents for Extron electronics IPL EXP PDU4H

  • Page 1 IPL EXP PDU4H • Setup Guide The Extron IPL EXP PDU4H Control System Expansion Interface provides centralized power management for medium sized AV systems. The IPL EXP PDU4H includes the following features: • • Dedicated control and monitoring of four AC power outputs Current sensing • •...

  • Page 2: Setup Checklist

    IPL EXP PDU4H • Setup Guide (Continued) Setup Checklist Get Ready … Familiarize yourself with the features of the IPL EXP PDU4H (see Front Panel Features on page 4, Rear Panel Features on page 4), and of any IPCP Pro xi Series control processors, TouchLink Pro touchpanels, or button panels that will be part of the system.
  • Page 3 Configure or Program the Control Processor, Expansion Interfaces, Touchpanels, and Network Button Panels The most basic steps are outlined below in the recommended order. NOTES: • See the Toolbelt Help File, Global Configurator Help File, Global Scripter Help File, and GUI Designer Help File as needed for step-by-step instructions and detailed information.

  • Page 4: Network Communication Setup

    Front Panel Features NOTE: For full reset mode information, SWITCHED AC BREAKER see the LINK IPL EXP PDU4H User Guide. IPL EXP PDU4H CONTROL SYSTEM EXPANSION INTERFACE Power and Reset Button Switched Circuit LAN/ Reset LED AC Power Breaker Network (recessed)

  • Page 5: Power Input

    Veillez à toujours utiliser le câble d’alimentation fourni avec l’unité. • Should you need to use a different power cord, consult Extron Electronics prior to using the cord. • Si vous devez utiliser un autre câble d’alimentation, contactez Extron Electronics avant d’utiliser ce câble.
  • Page 6 IPL EXP PDU4H • Setup Guide (Continued) Power Output — Switched AC Power Output Circuit Breaker Switched AC Power Output (power output overcurrent protection) Connect AC powered products to these four ports Rear Panel using a standard IEC power cord, or use an Extron IEC-to-Edison cable kit if your devices require NEMA 5-15R receptacles.
  • Page 7 Twisted Pair Wires Network Ethernet RJ-45 Connector Pins: Rear Panel Front Panel LAN (Ethernet) IPL EXP PDU4H Default protocol, public ports: Default login credentials: • IPL EXP IP address: 192.168.254.250 MAC: 00-05-A6-XX-XX-XX S/N: ####### E###### • Username: 100 Mbps • Gateway IP address: 0.0.0.0...
  • Page 8 IPL EXP PDU4H • Setup Guide (Continued) Control, Unidirectional — Relay Output Relay is normally open. Connect this port to a notification device to allow visual or audio alerts for conditions such as power output shutdown (once the port conditions, events, and notifications are Rear Panel configured).
  • Page 9 Reset Modes: a Brief Summary The expansion interfaces offer the following reset modes: • Run Factory Boot Code: Press and hold the Reset button while applying power to the unit. Keep holding the button down until the Power or Reset LED blinks twice, or for 6 seconds, then release the button. The LED blinks slowly during bootup.
  • Page 10 IPL EXP PDU4H • Setup Guide (Continued) Overall Configuration Procedure for the Control Processor and Expansion Interfaces Within Global Configurator Configure the IP settings See Network Network (GC Professional or of the control processor, Communication Setup Communication Setup GC Plus mode): expansion interface, on page 4.
