Mounting the Extender WM or Extender WM AAP to the Wall Box

1.
Remove power from the line driver
by disconnecting the power
supply.
2. Place the line driver through the
opening in the wall or furniture
and into the wall box. Take care
not to damage the output cables,
which fit behind the line driver at
the back of the wall box.
3. Mount the line driver faceplate to
the wall box with machine screws
as shown in figure 7, at right.
4. Reconnect the power supply and
restore power to the equipment.

Mounting the Extender D

1. Remove power from the line driver
by disconnecting the power
supply.
2.
Place the Extender D through
the opening in the wall or
furniture and into the wall box.
Take care not to damage the
output cables, which fit behind
the line driver at the back of
the wall box.
3. Mount the Extender D to the
wall box with machine screws
as shown in figure 8, at right.
4. Attach the decorator-style wall
plate to the Extender D as
shown in figure 8.
5.
Reconnect the power supply
and restore power to the
equipment.
Wall Stud
Screws or Nails
Installation
Cable
Cable
Clamp

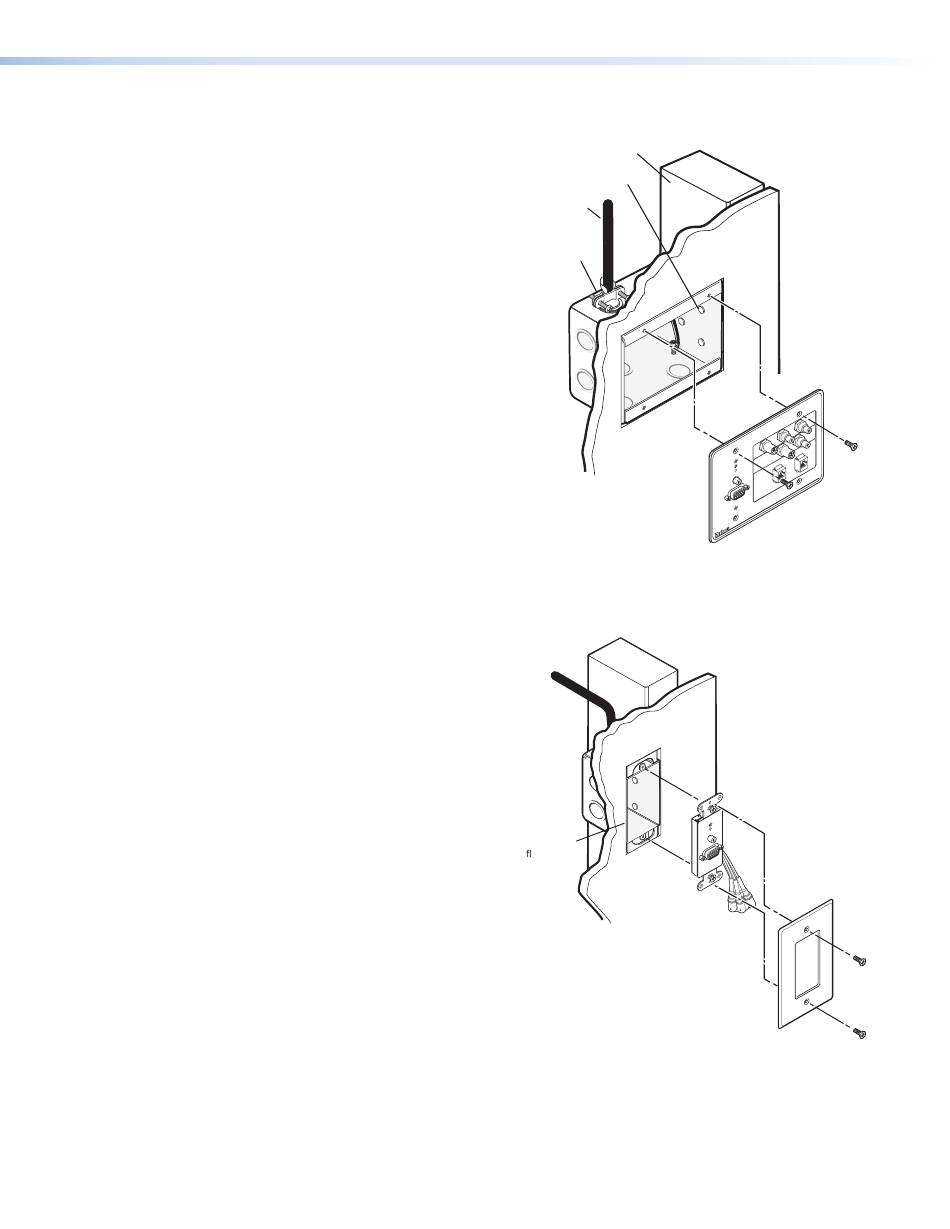

Figure 7. Mounting the Line Driver
to the Wall Box
Wall Box
Wall opening
is ush with
edge of box.
Extron
Extender D
VGA-QXGA
Line Driver
with Audio
Figure 8. Mounting the Extender D
to the Wall Box
Extender Series • Installation
IN
D IO
A U
A A P
W M
IN
E R E R
U T N D
M P T E
E X
C O
Extender WM AAP
IN
D IO
A U
IN
E R
U T
M P
C O
Decorator-Style
Faceplate
