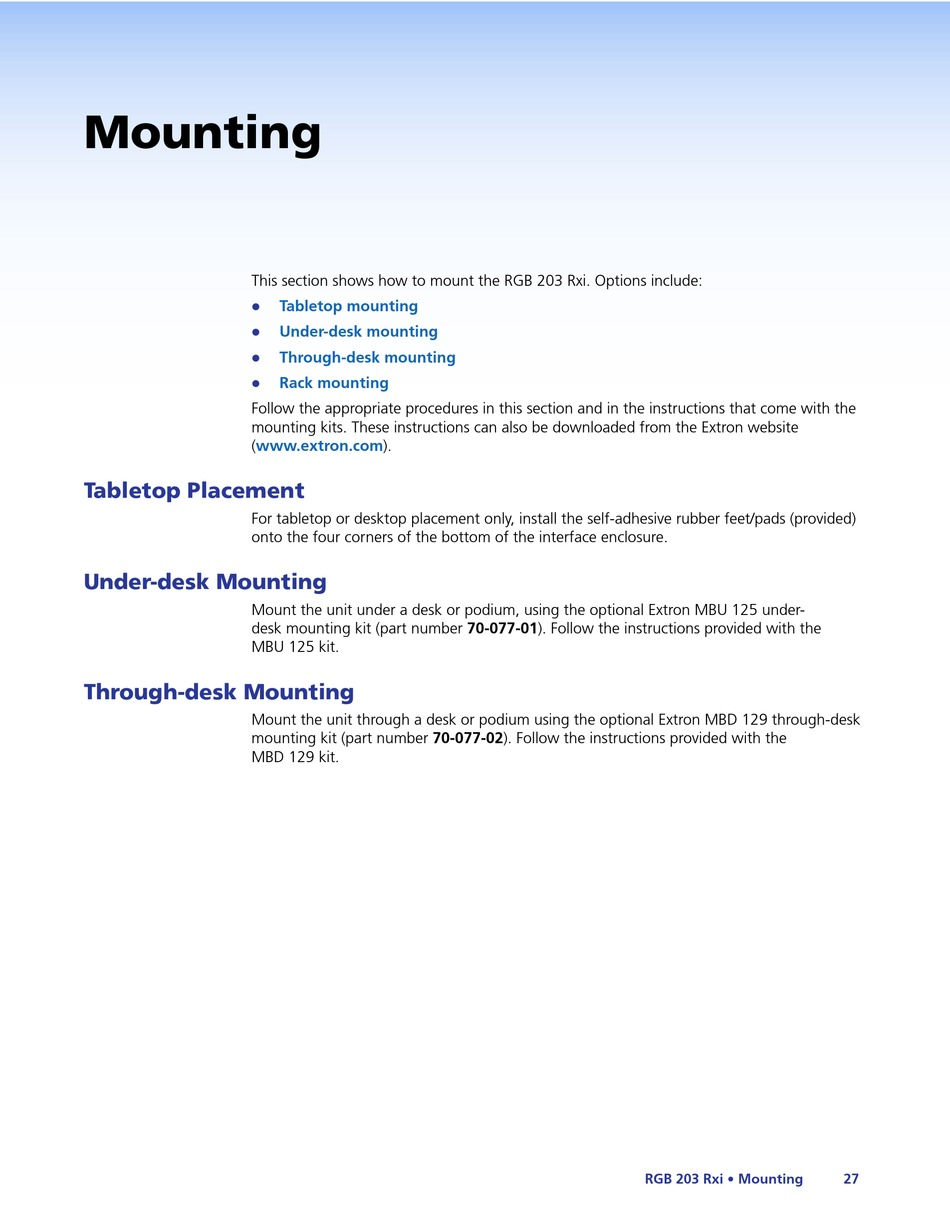

Mounting

This section shows how to mount the RGB 203 Rxi. Options include:
z
z
z
z
Follow the appropriate procedures in this section and in the instructions that come with the
mounting kits. These instructions can also be downloaded from the Extron website
(www.extron.com).

Tabletop Placement

For tabletop or desktop placement only, install the self-adhesive rubber feet/pads (provided)
onto the four corners of the bottom of the interface enclosure.

Under-desk Mounting

Mount the unit under a desk or podium, using the optional Extron MBU 125 under-
desk mounting kit (part number 70-077-01). Follow the instructions provided with the
MBU 125 kit.

Through-desk Mounting

Mount the unit through a desk or podium using the optional Extron MBD 129 through-desk
mounting kit (part number 70-077-02). Follow the instructions provided with the
MBD 129 kit.
Tabletop mounting
Under-desk mounting
Through-desk mounting
Rack mounting
RGB 203 Rxi • Mounting 27
